CFM-1800

AUTOMATED CARTRIDGE FILLING & CAPPING MACHINE

CFM-1800

AUTOMATED CARTRIDGE FILLING & CAPPING MACHINE

1,800

CARTS PER HOUR

14,000+

PER 8-HOUR SHIFT

30,000

LBS OF CAPPING FORCE

ONE

OPERATOR NEEDED

cfm-1800 automated vape cartridge filling and capping machine

cfm-1800 automated vape cartridge filling equipment

cfm-1800 vape cartridge filling and capping machine

cfm-1800 automated vape cartridge filling machine

cfm-1800 automated vape cartridge filling

cfm-1800 vape cartridge filling and capping machine parts

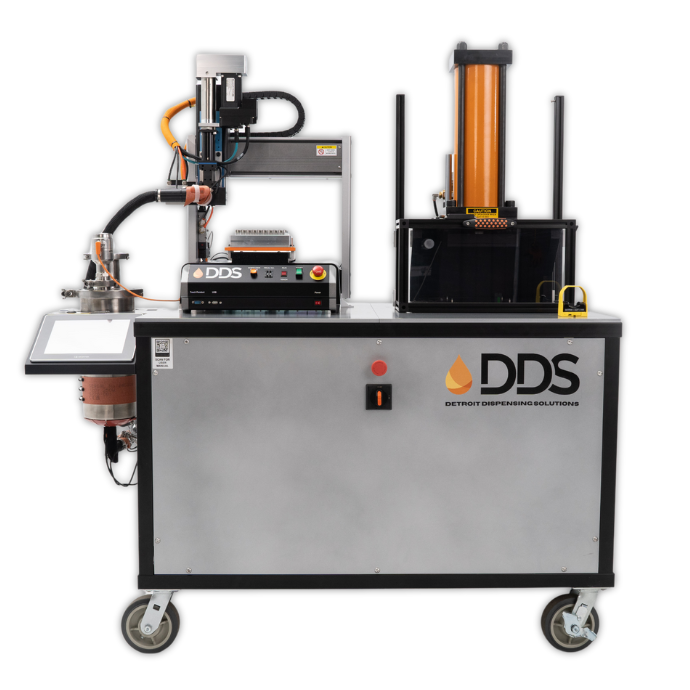

The CFM-1800 was built to automate the vape cartridge filling and capping process. The CFM-1800 can handle both live resins and distillates at a production capacity of up to 1,800 cartridges per hour. Utilizing a true-rod positive displacement valve that was designed specifically for cannabis, combined with our custom engineered thermal system, we can dispense distillate and live resin in metered amounts at a temperature previously unheard of in the market. Alongside its modular design to reduce potential downtime, the CFM-1800 is the most accurate, efficient, and reliable vape cartridge filling machine ever made.

Fill and cap up to 1,800 1ml cartridges per hour
Low-temperature filling dispense materials as low as 40 degrees Celsius)
Fill accuracy +/- 1% on both 510 cartridges and disposable devices
Dispenses any consistency of distillate or live resin extracts
Infuse 1,500 Pre-Rolls per hour - Machine can be modified in under 60 seconds to infuse pre-rolls
Touch screen control for tank pressure, shot size, zone temperatures, and capping force
5 Liter 316 Stainless Steel reservoir tank designed for running both large or small batches
Create and store recipes for different extracts and product SKUs
Pneumatic cylinder capable of pressing 100 caps at a time
3 stage sanitary air filtration providing food grade air
5 different heaters to ensure consistent heat throughout the wetted section of the machine
Modular design allows for quick and easy repairs to reduce potential downtime
Includes a “syringe mode” to activate a foot pedal for metered syringe filling
True rod positive displacement valve designed specifically for cannabis extracts can take metered shot sizes from .16ml to 1.6ml
Proudly designed, engineered, and manufactured in the USA

Measurements: 59 x 31 x 64 L x W x H
1-year warranty
120v 20amp power requirements
90-120 psi shop air supply

SCHEDULE A LIVE DEMO
OF THE CFM-1800

THE MOST EFFICIENT & ACCURATE VAPE CARTRIDGE FILLER

Accuracy, efficiency, and repeatability are paramount to scaling your cannabis operations. We take pride in providing the highest quality equipment in the cannabis industry - backed by a level of customer service and support that is unmatched.

AUTOMATE YOUR PRE-ROLL INFUSION

Now your DDS CFM-1800 and CFS-1800 can infuse 1,500 pre-rolls per hour! Effortlessly swap your needle, select the preset pre-roll infusion programming, and in less than 60 seconds you’re producing an additional SKU.

OPTIMIZE & STREAMLINE YOUR VAPE CARTRIDGE FILLING OPERATIONS

The CFM-1800 was built to automate the vape cartridge filling and capping process. With DDS' in-house manufacturing capabilities, we are able to quickly design and manufacture custom jigs capable of filling and capping hardware from it's original foam packaging -- drastically reducing your manufacturing touch points and increasing operational efficiencies.
