DVO-5

Vacuum Oven

4.5 Cu. Ft. DDS Vacuum Oven – Industrial-Grade Precision Versatile | Large Capacity | Uniform Heat Distribution

Request a Quote

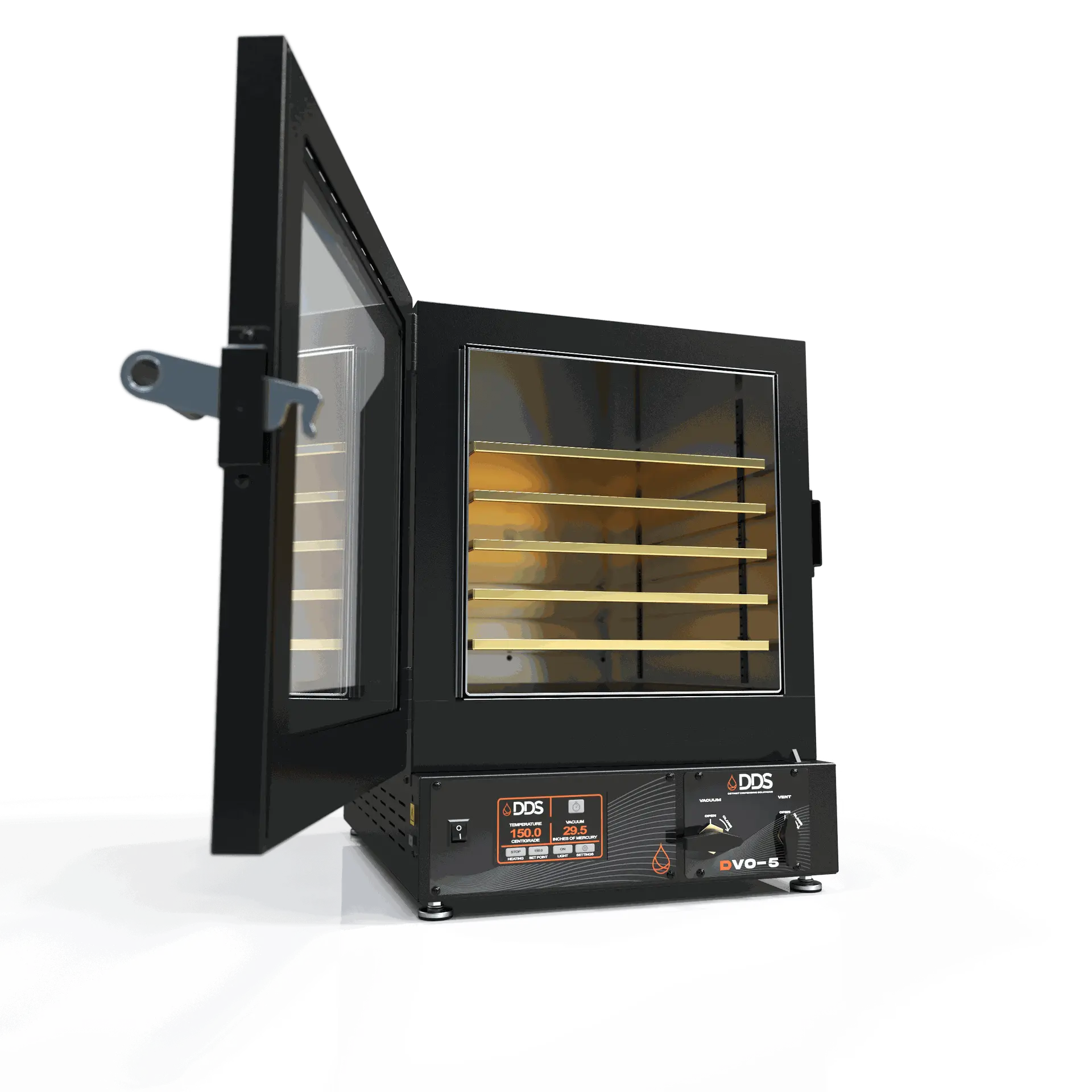

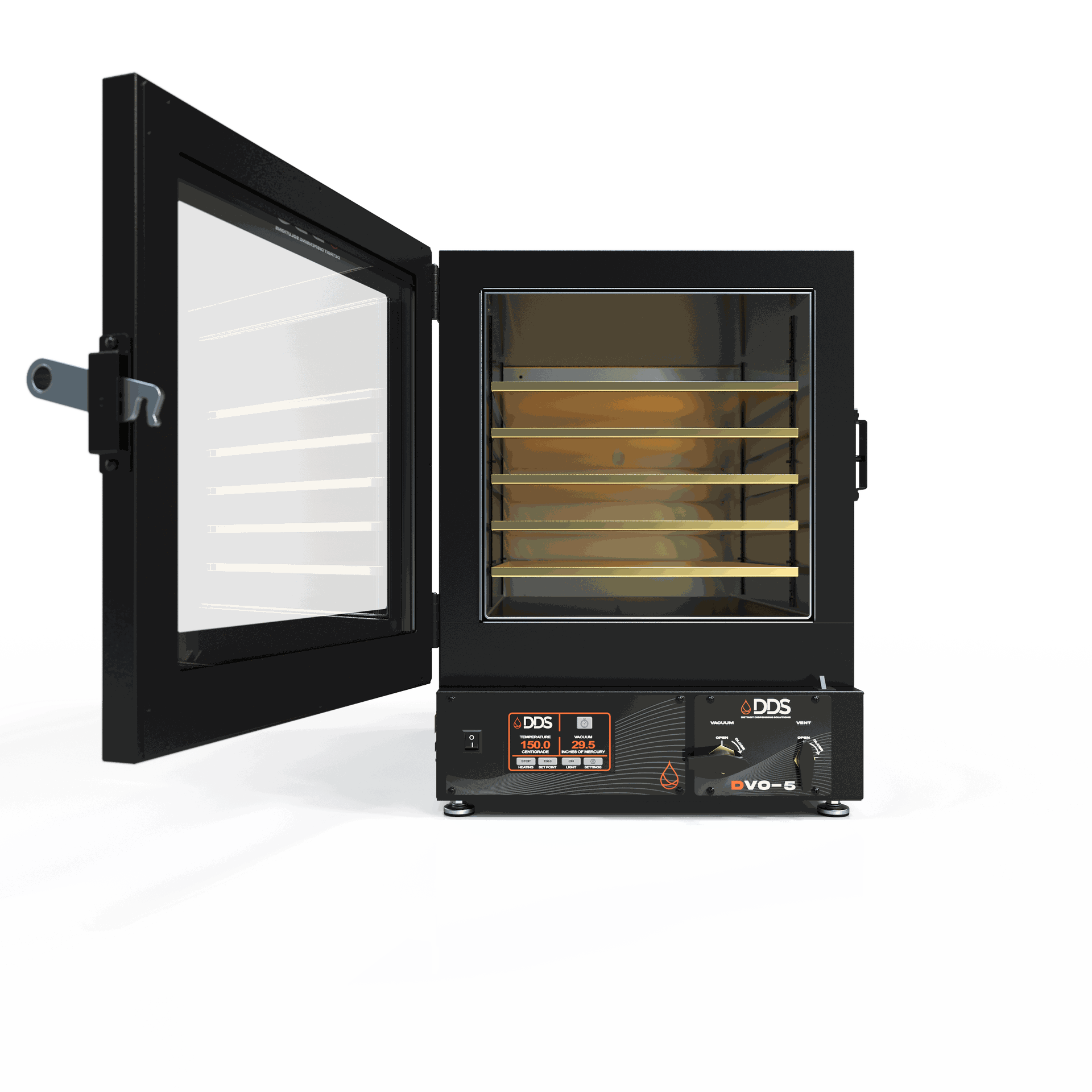

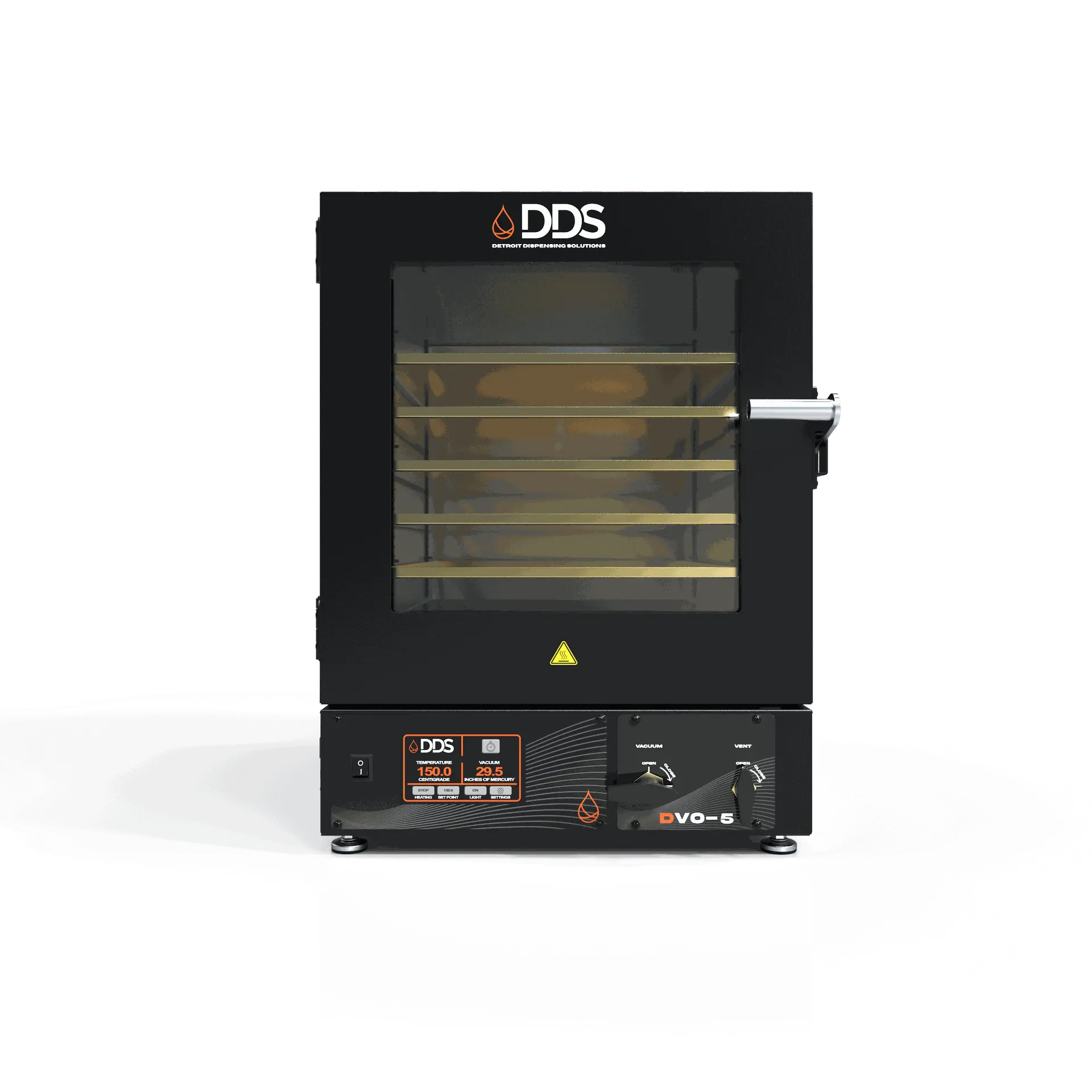

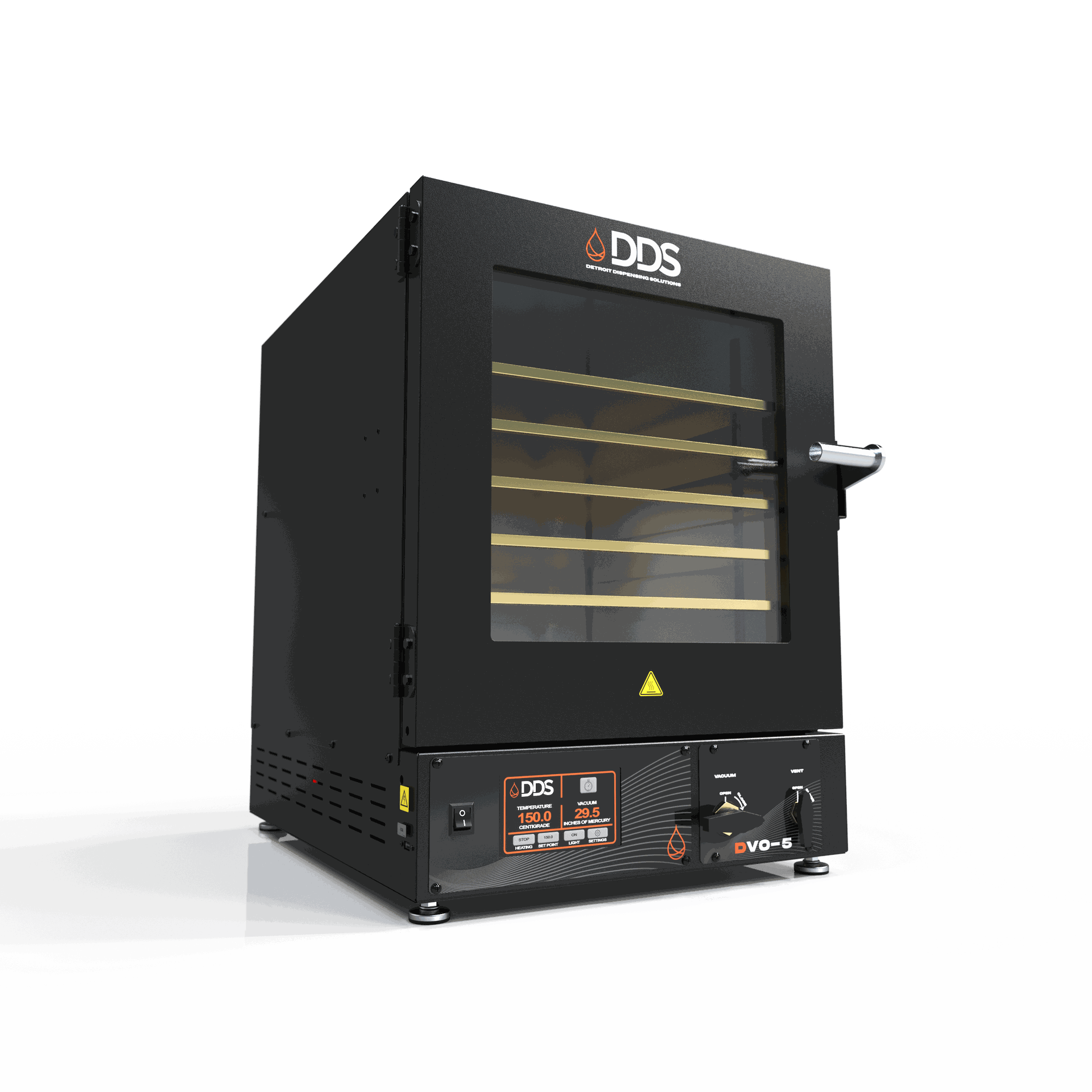

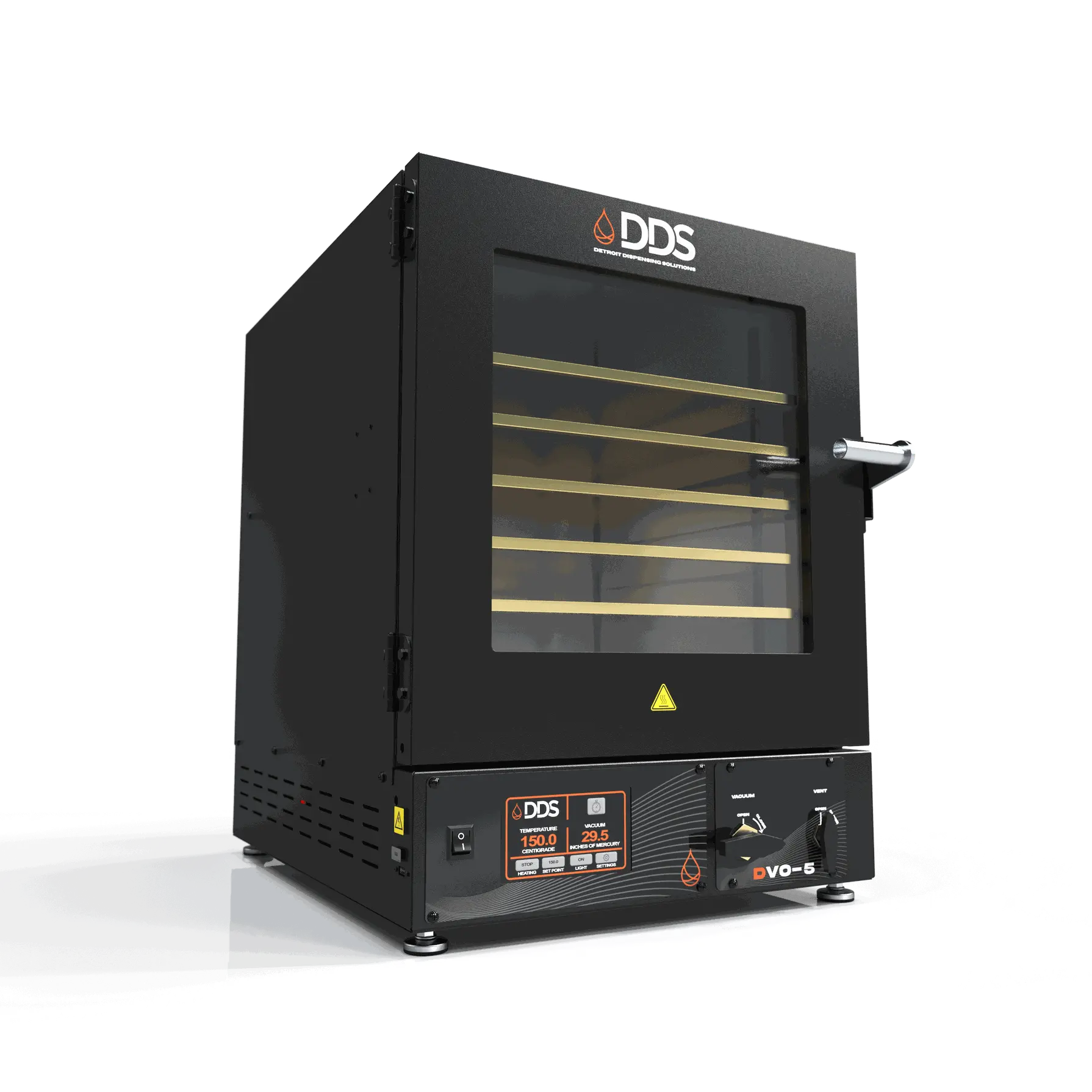

DVO-5 Vacuum Oven Overview

The Detroit Dispensing Solutions DVO-5 Vacuum Oven is the workhorse of medium-scale vacuum processing. Designed for consistent temperature stability and maximum shelf surface, this 4.5 cu. ft. unit is built to serve processors in cannabis, biotech, and chemical production. Featuring high-temp performance, inert gas compatibility, and LED interior lighting, it’s a robust system for solvent purging, drying, or post-processing.

Stainless Interior
Lighted Viewing Window
Easy Quarter-Turn Vacuum Valves
Inert Gas Backfill Equipped
Temp Probe Inside Chamber for Accurate Temperatures

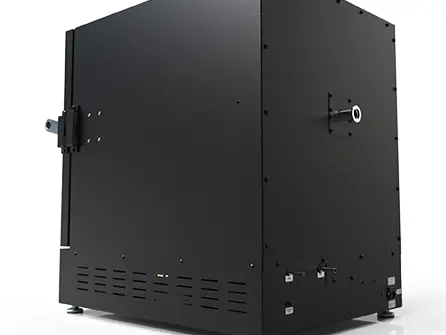

KF-25 Access Port on Rear of Vessel
Adjustable Leveling Feet
ANSI-Rated Tempered Glass

Technical Specs

Sizing

Capacity: 4.5 cuft / 125L
Interior Dimensions: 18"W X 24"D x 18"H
Exterior Dimensions: 33.3"W x 38.6"D x 31.8"H

Temperature Range & Dispersion

Temperature Range: Ambient +15C to 150C (+26F to 302F)
Uniformity @40C (105F): +/- 1.4C (+/- 2.5F)
Uniformity @90C (200F): +/- 4.2C (+/- 7.5F)
Uniformity @150C (300F): +/- 8.9C (+/- 16F)

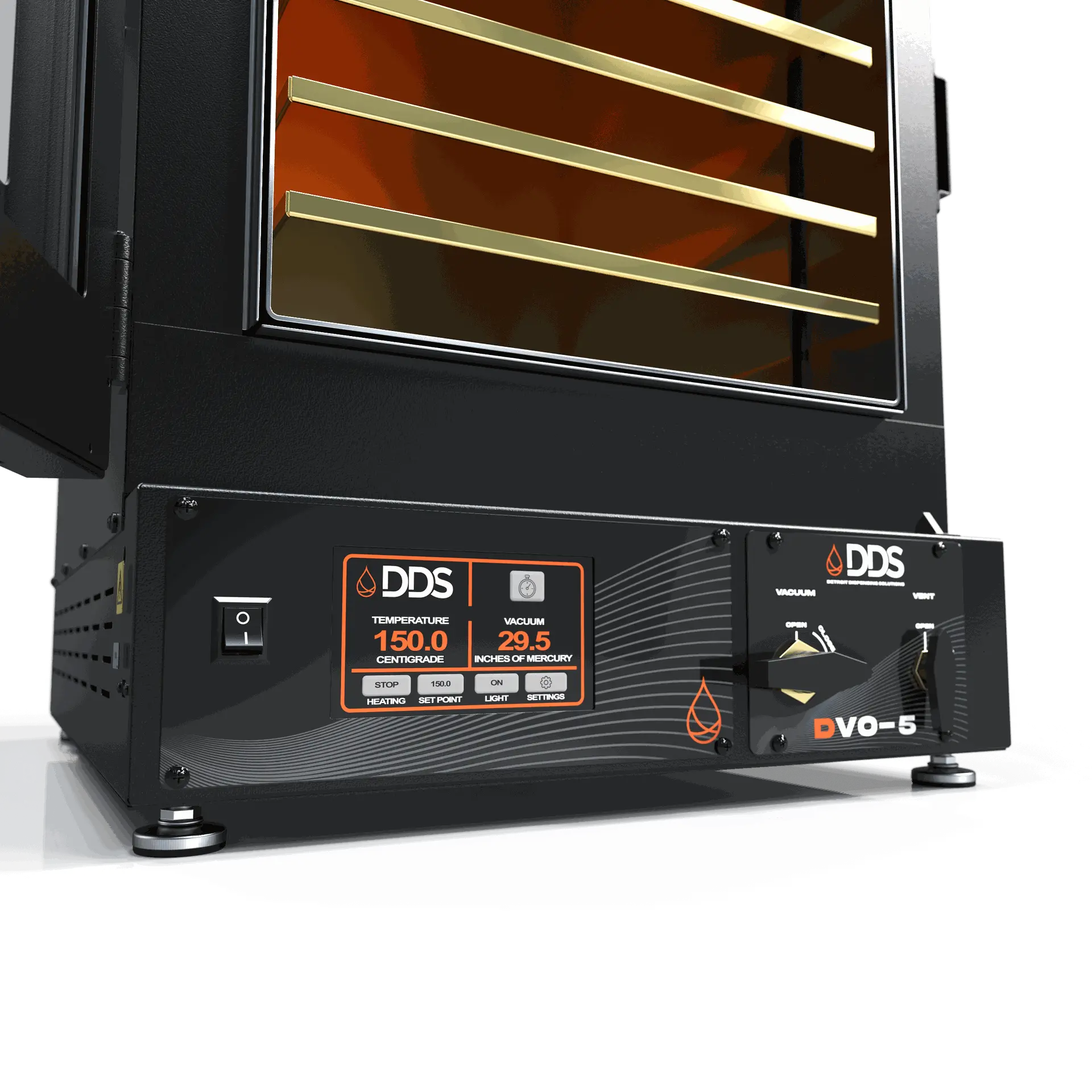

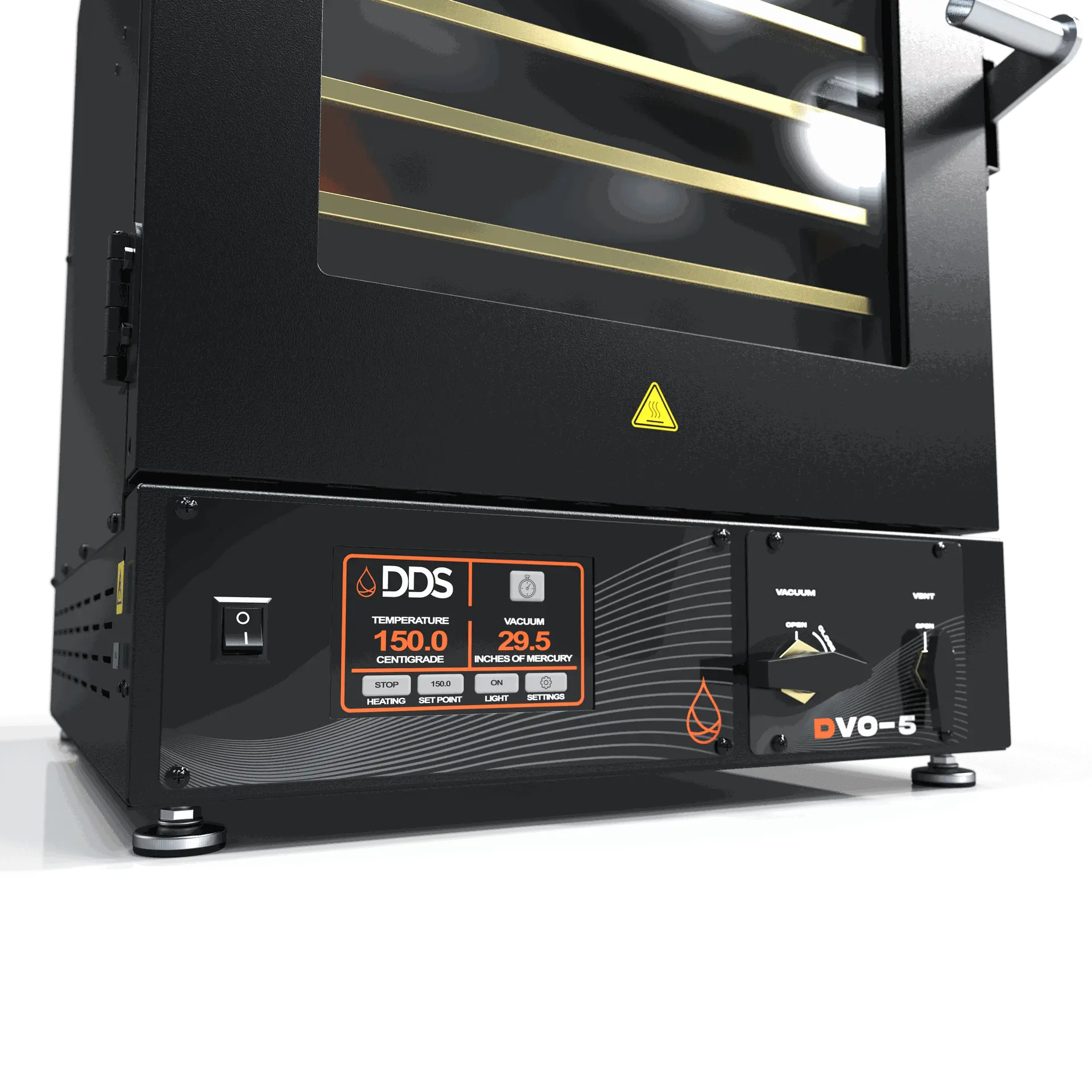

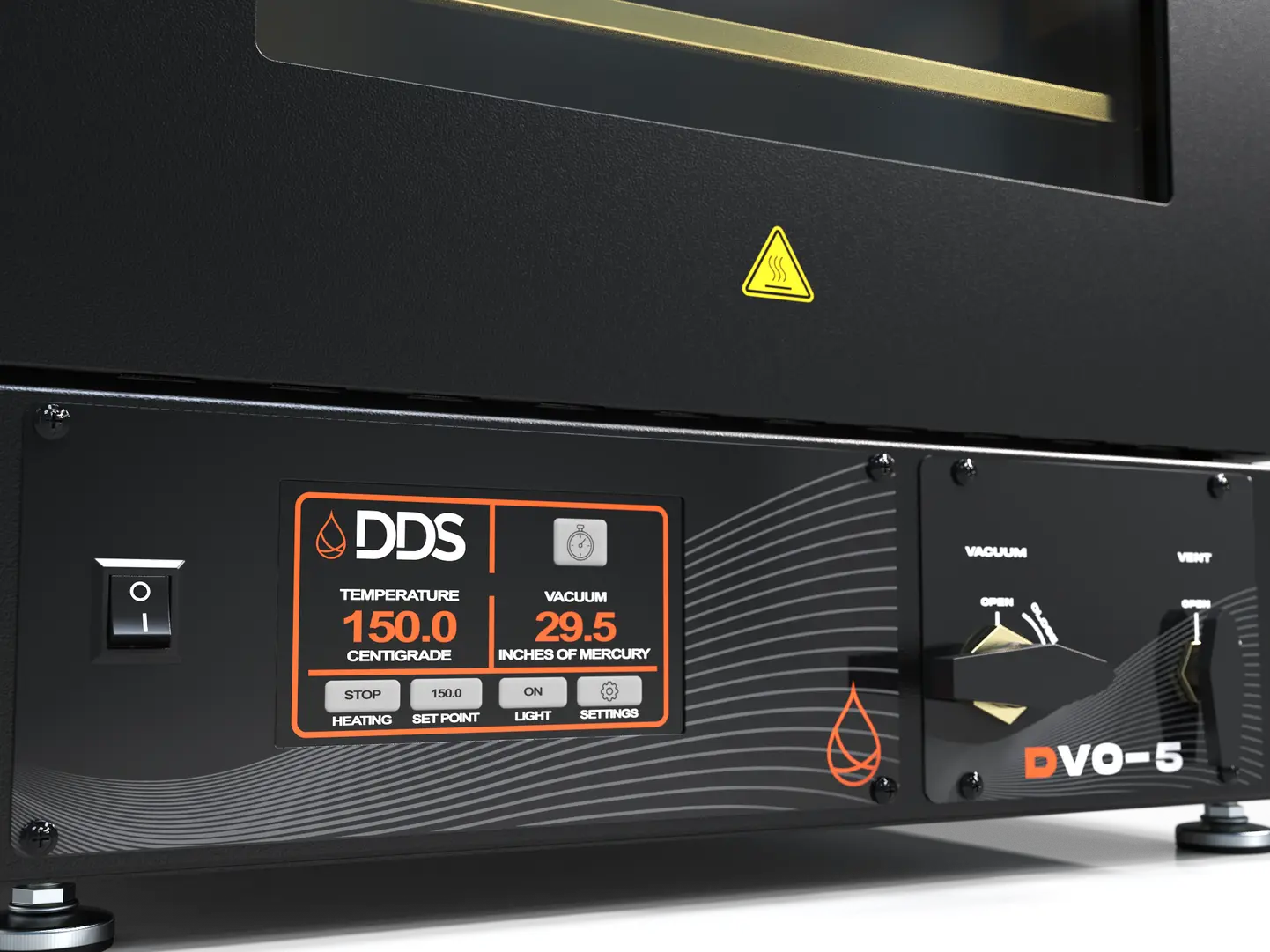

Touch Screen Control

Temperature: Selectable for C or F
Vacuum: Selectable for Torr, Inches Hg, Bar
USB Connection: USB-A Port for Easy In-Field Upgrades

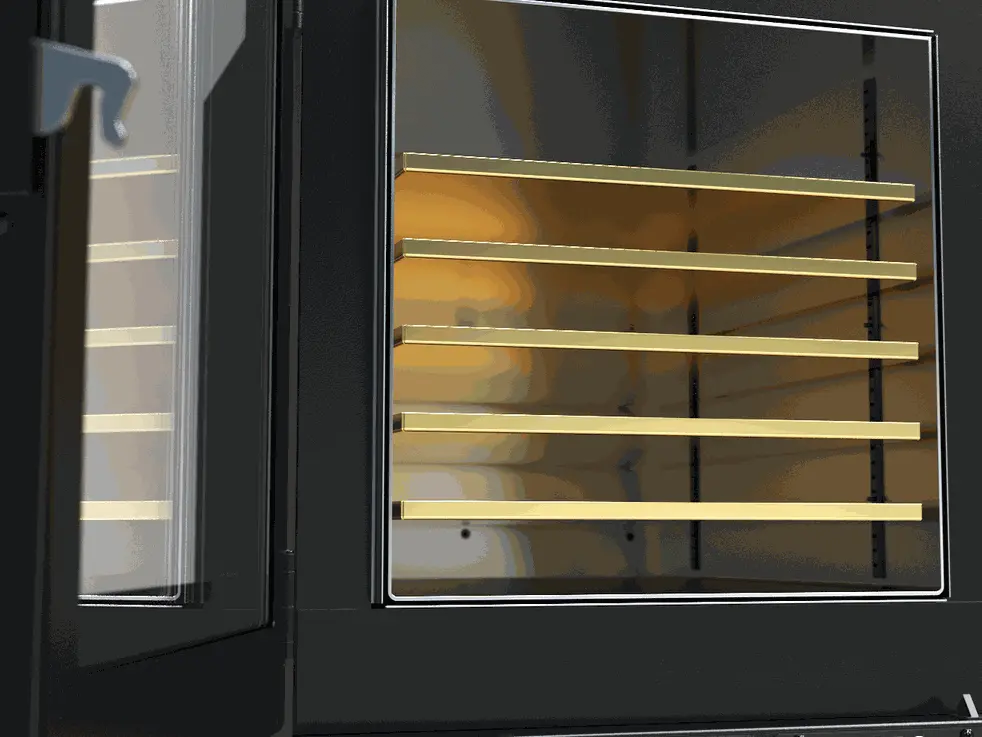

Shelving (Aluminum)

5 Removable & Adjustable Shelves (8 Max)
Surface Area: 18"W x 24"D
Weight Capacity: 225lbs Total (22.7Kg)
Optional Stainless Steel Shelving

Equipment Options

Stainless Steel Exterior & Shelving
High Temp (220C) with Programmable Control
Data Logging
Door Gasket Materials: Viton, BUNA-N, Floura-Silicone
120V (Standard) or 220V Configuration

Temperature Performance From Vacuum

Stability @40C (105F): +/- 0.2C (+/- 0.3C)
Stability @90C (200F): +/- 0.2C (+/- 0.3C)
Stability @150C (300F): +/- 0.2C (+/- 0.3C)
Heat Up from 25C (77F) to Stabilization:
- To 40.5C (105F) 60 minutes
- To 93.3C (200F) 126 minutes
- To 150C (302F) 180 minutes

Vacuum Connections

Vacuum Line: 3/8" (9.5mm) Barb
Vent & Inert Gas: 1/4" (6mm) Barb
Access Port: KF-25 for Feedthroughs or MAXEVAP Connection

Facilities

Power (50/60 Hz):
- 120V / 1PH / 14 AMPS
- 220V / 1PH / 7 AMPS
Plug/Outlet (Power Cord Included):
- 120V - NEMA 5-15R
- 220V - NEMA 6-15R
BTU @ Full Power:
- 120V - 1105 BTU/hr
- 220V - 1228 BTU/hr
Unit Shipping Weight:
- 163kg (360lbs)
- 204kg (449lbs)

INDUSTRY-LEADING EQUIPMENT & SERVICE

Built for Uptime

Engineered for relentless reliability. Our equipment is built to run day in and day out with minimal downtime—so your workflow never skips a beat. When time is money, you can count on Detroit Dispensing Solutions to deliver consistent performance that keeps your production on track.

Peak Performance

Speed meets precision. From rapid heat-up times to exacting vacuum stability, every detail is designed to optimize throughput without sacrificing quality. Get more done, faster—with lab equipment that works as hard as you do.

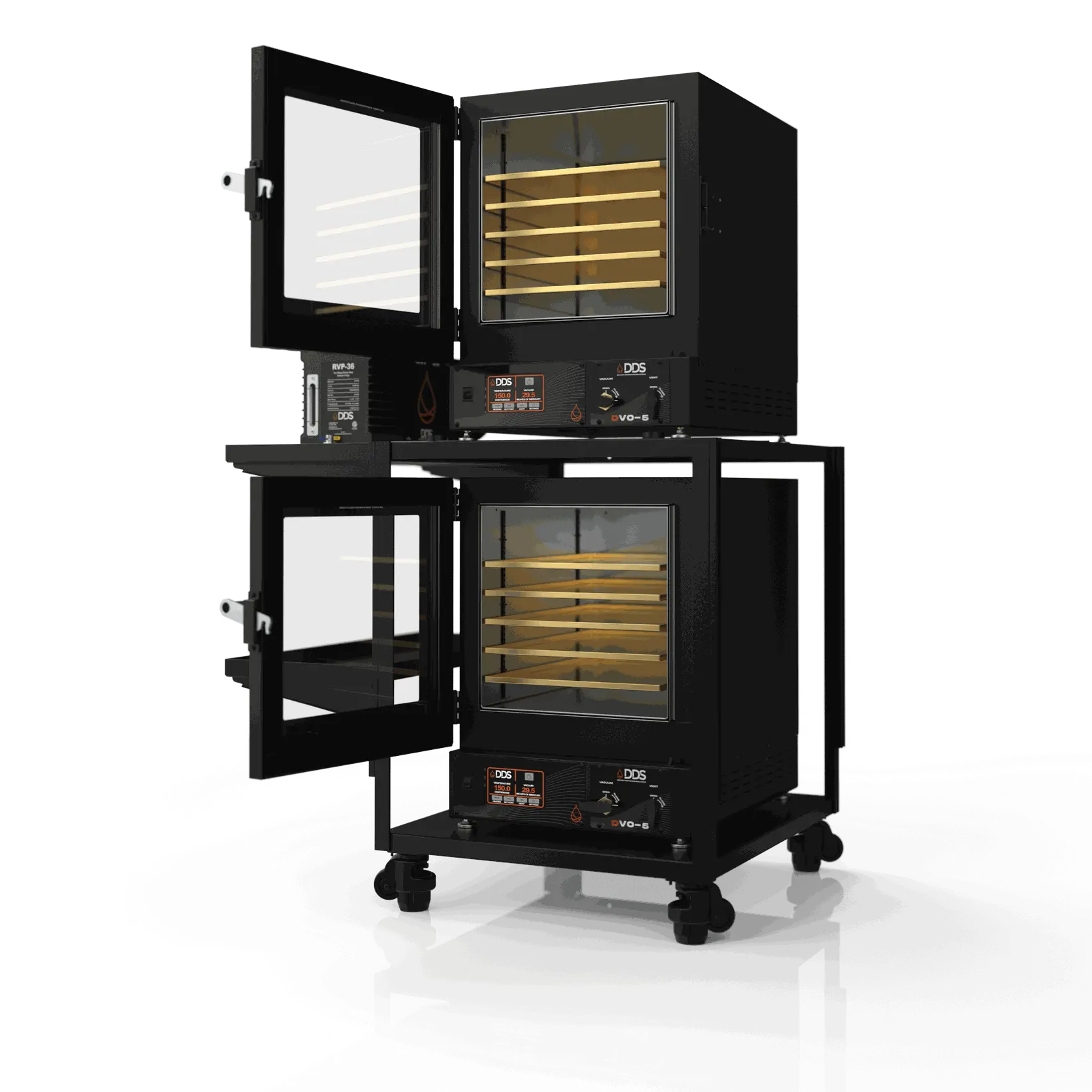

Scalability By Design
