Take control of your drying, decarb, and thermal systems with our full suite of ancillary equipment. From benchtop vacuum ovens to high-capacity decarb ovens and Cascade-compatible parts, DDS helps streamline post-processing without disrupting operations.

SCHEDULE A FREE CONSULTATION

Featured Systems

DVO-5 DOUBLE UP

Vacuum Oven Package

DVO-10

Vacuum Oven Pro Package

DDO-28

Industrial Decarb Oven

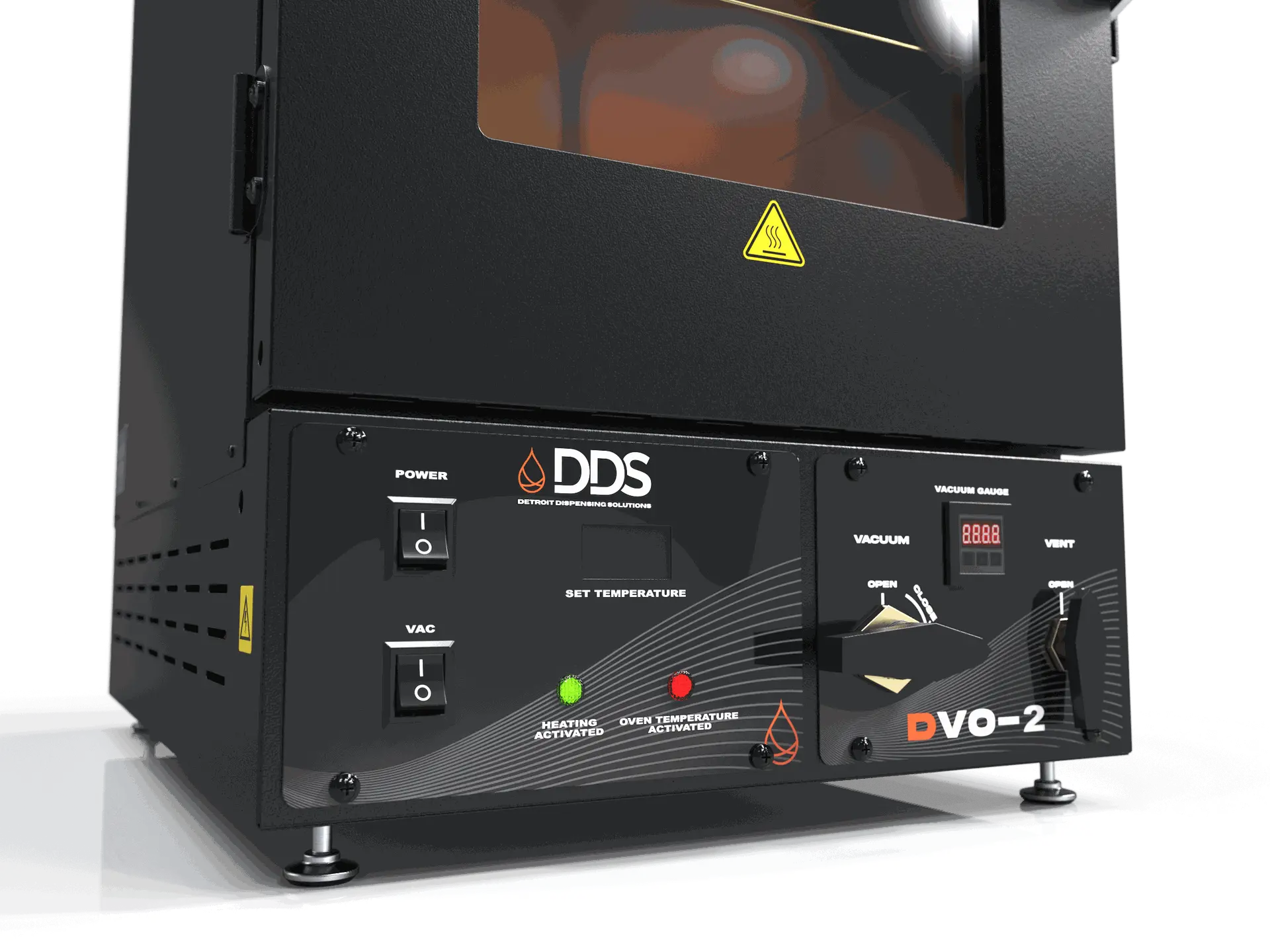

Reliable vacuum and temperature controlDVO-2 / DVO-5 / DVO-10 – Vacuum Ovens

DDO-28 – Industrial Decarb & Drying Oven

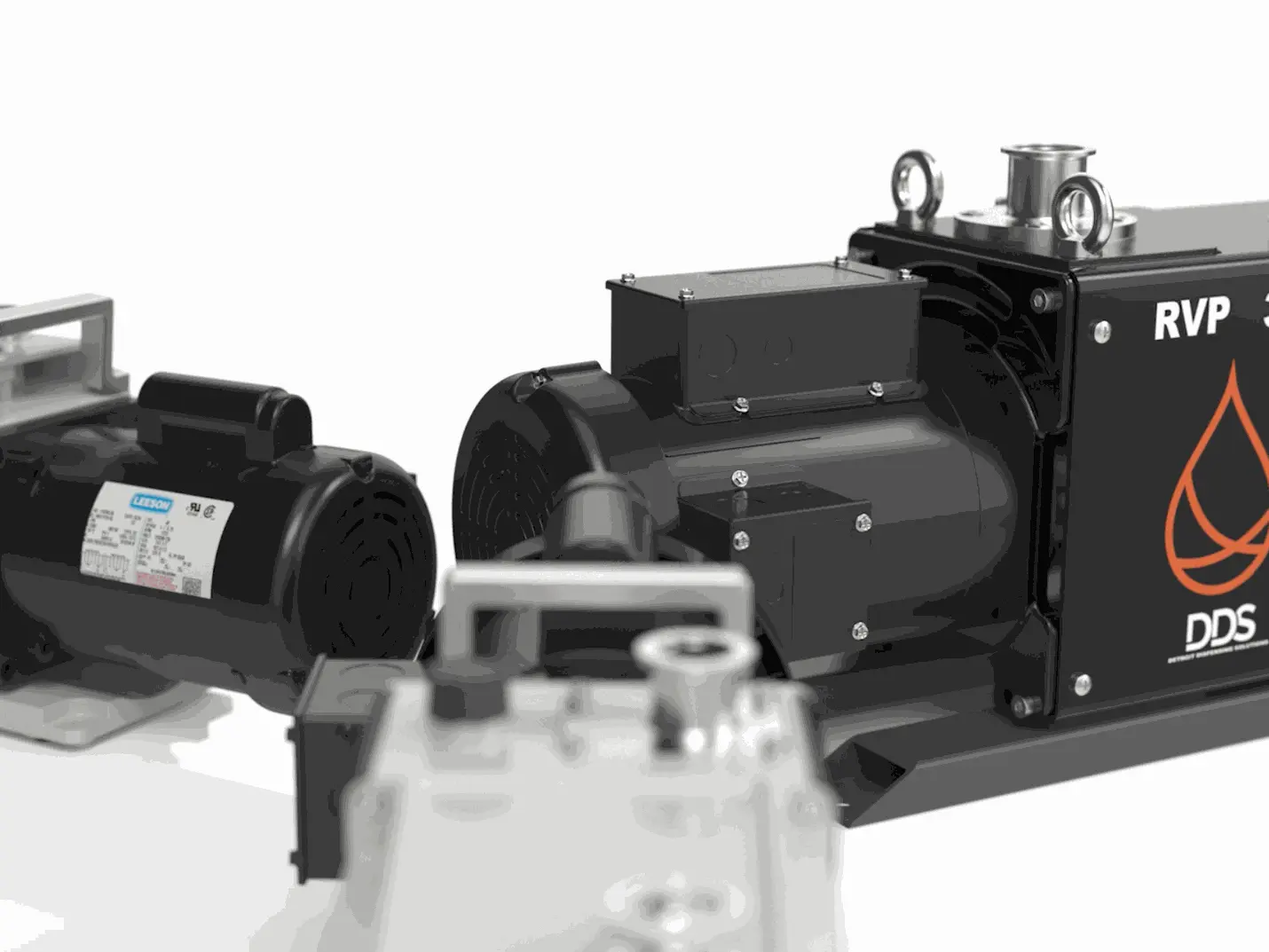

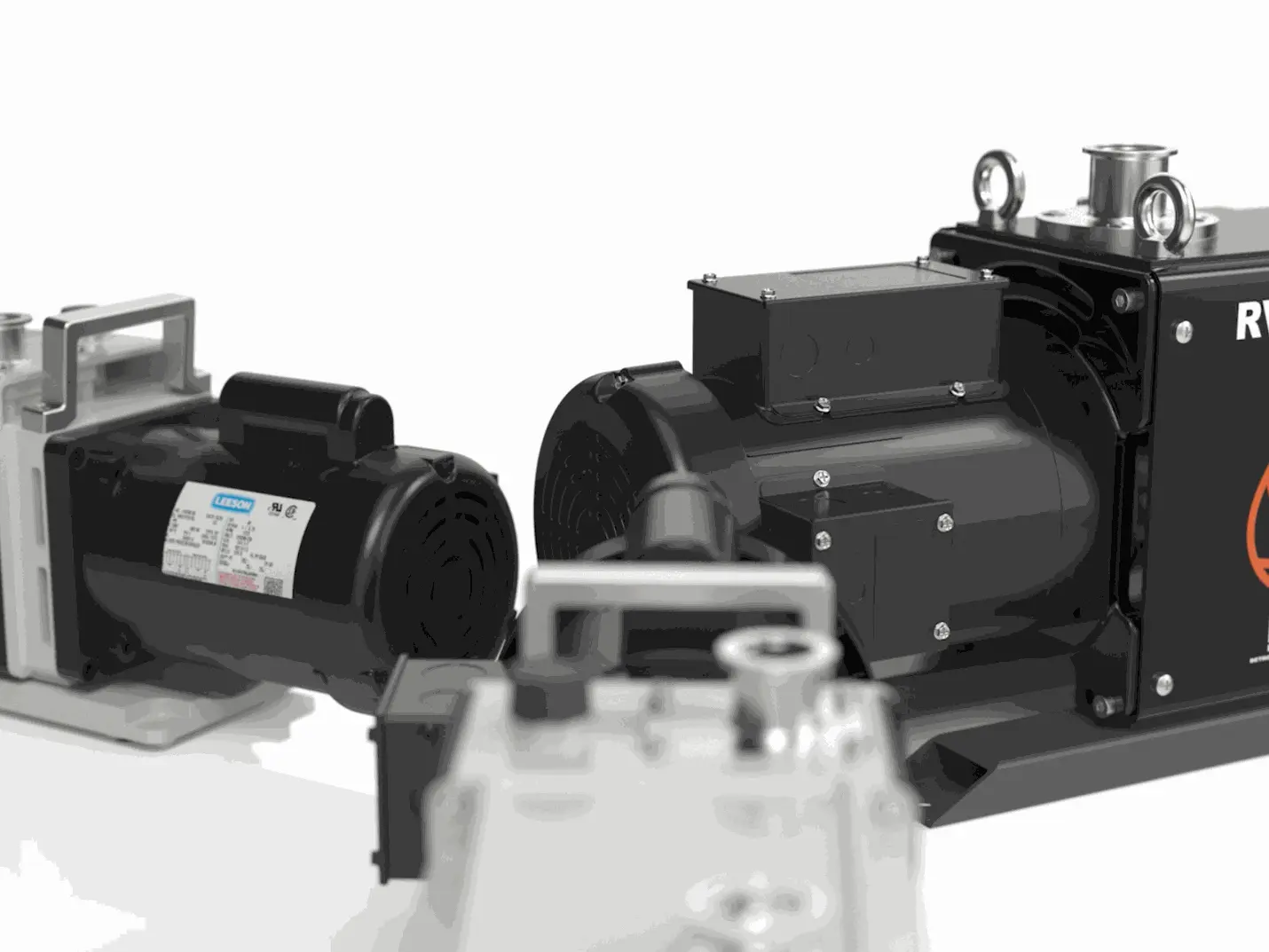

Pumps, TCUs, Cold Traps – Compatible with Cascade

Parts & System Upgrades – Easy swaps, zero retraining

Key Benefits:

Minimize downtime and maximize batch consistency

Scalable configurations for any lab size

Reliable vacuum and temperature control

Full compatibility with Cascade systems

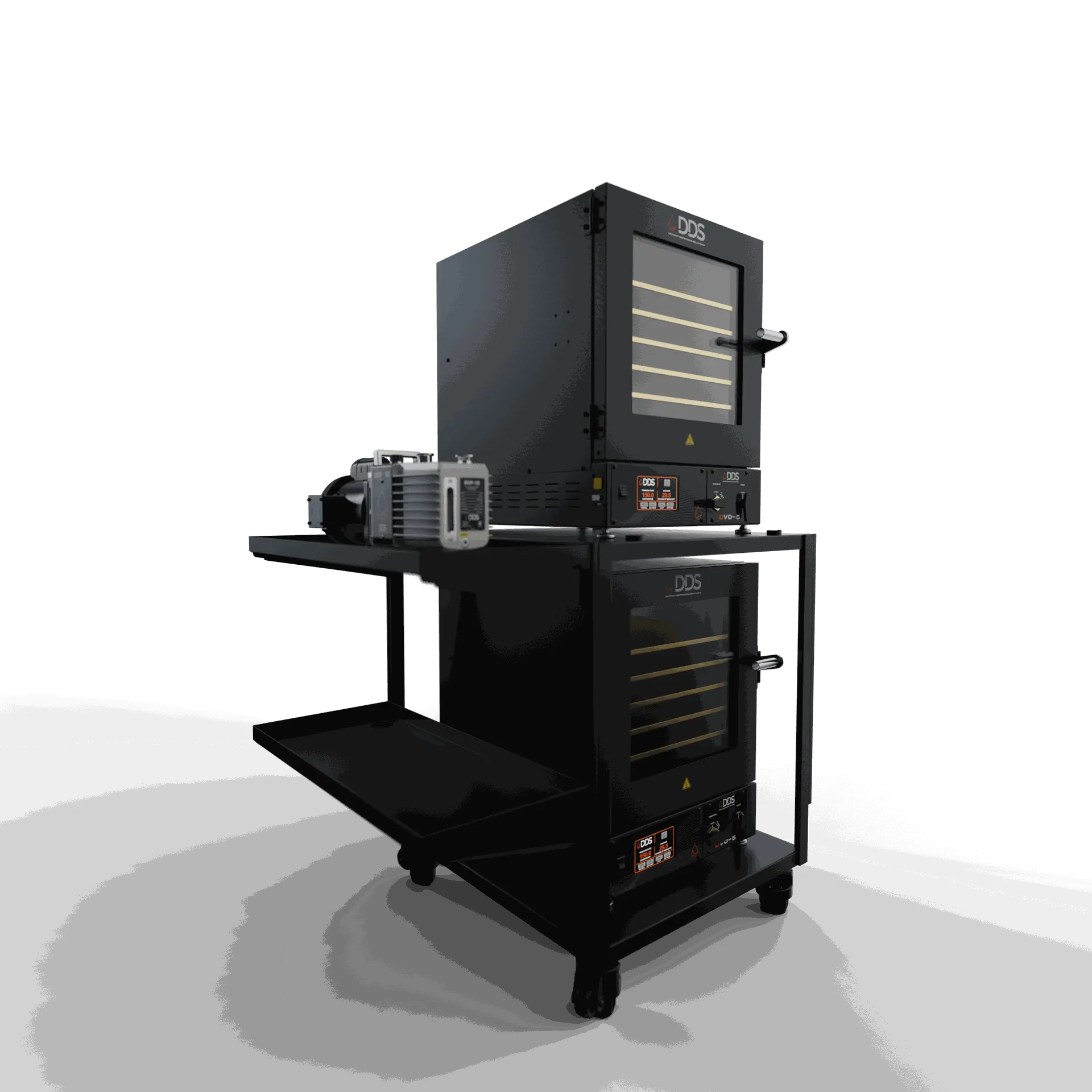

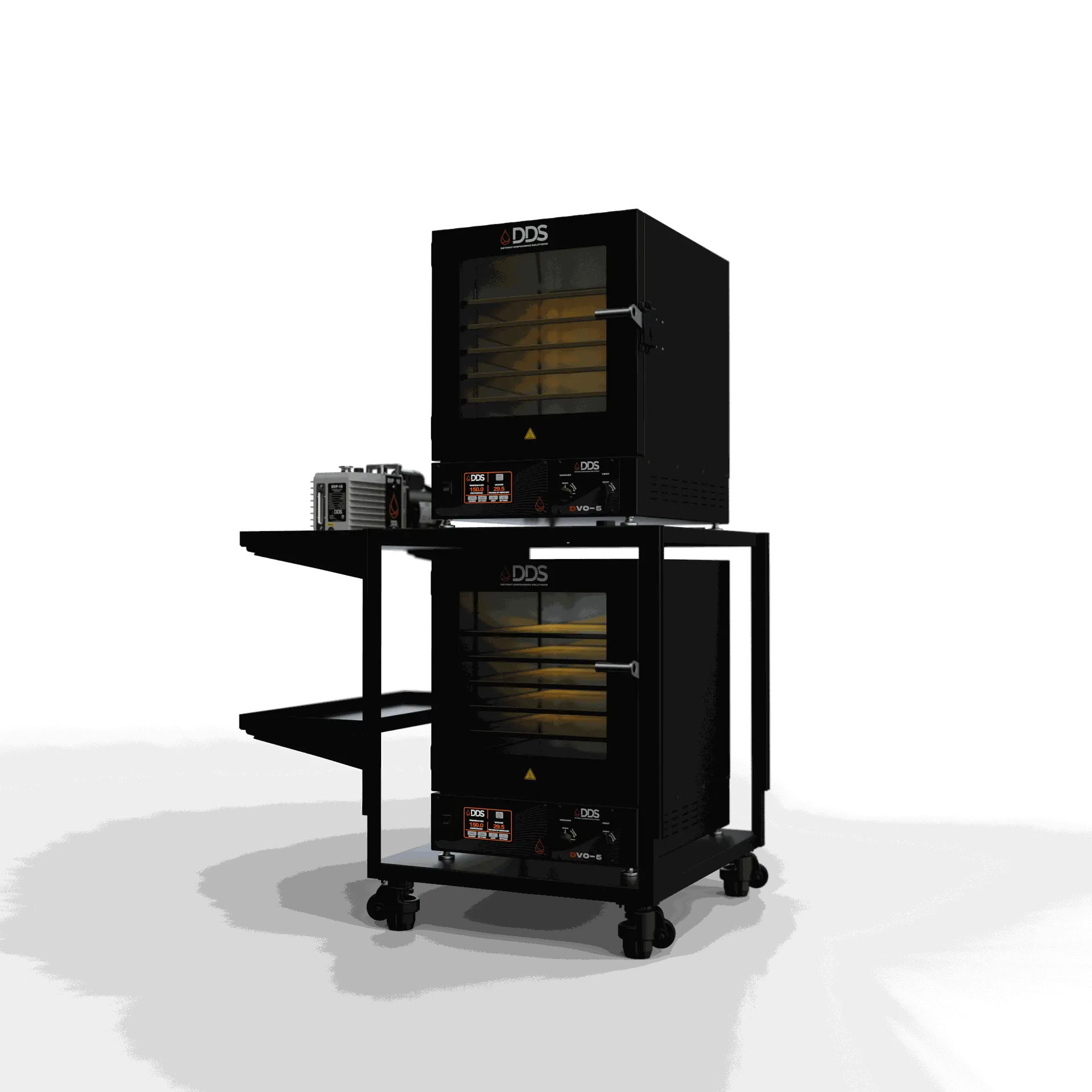

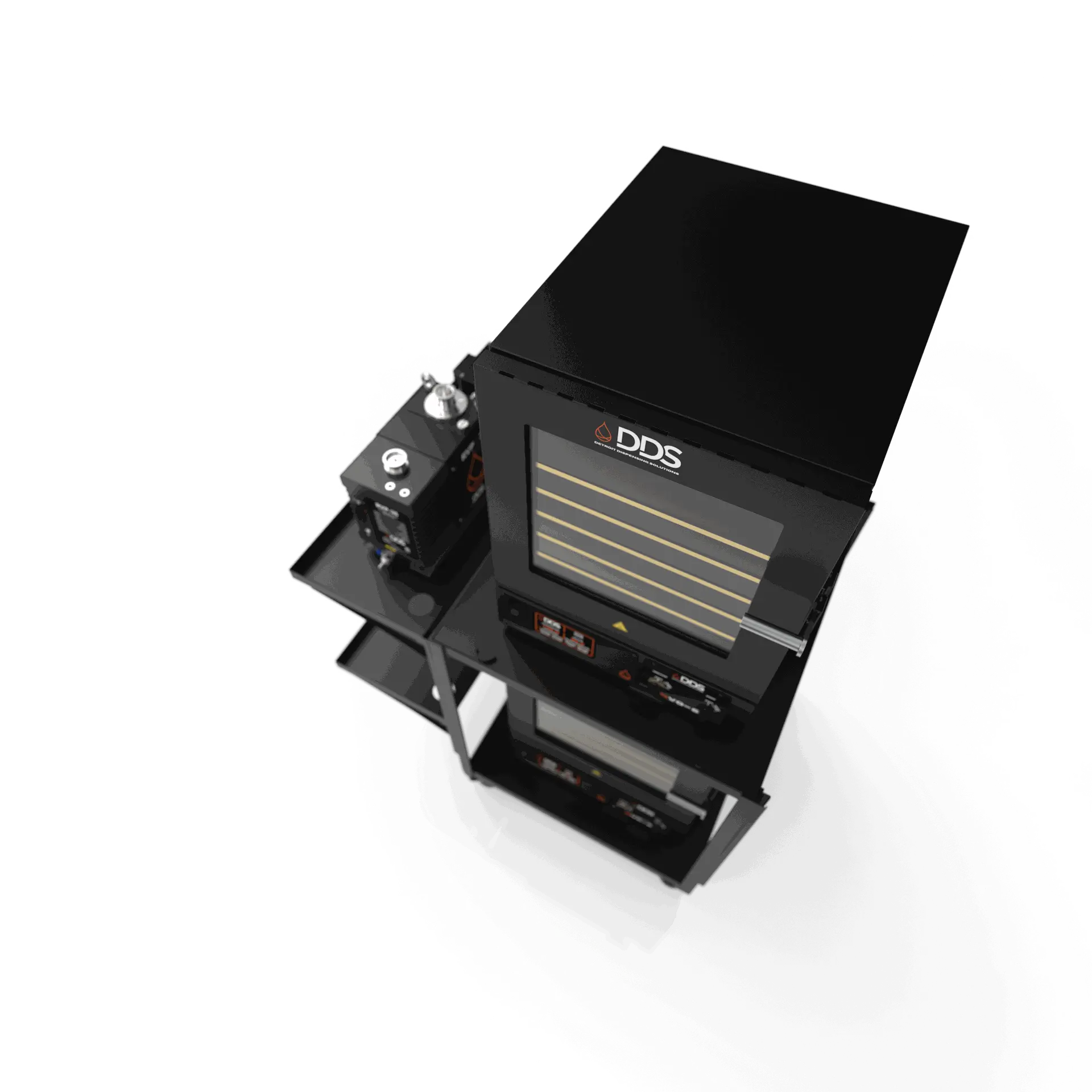

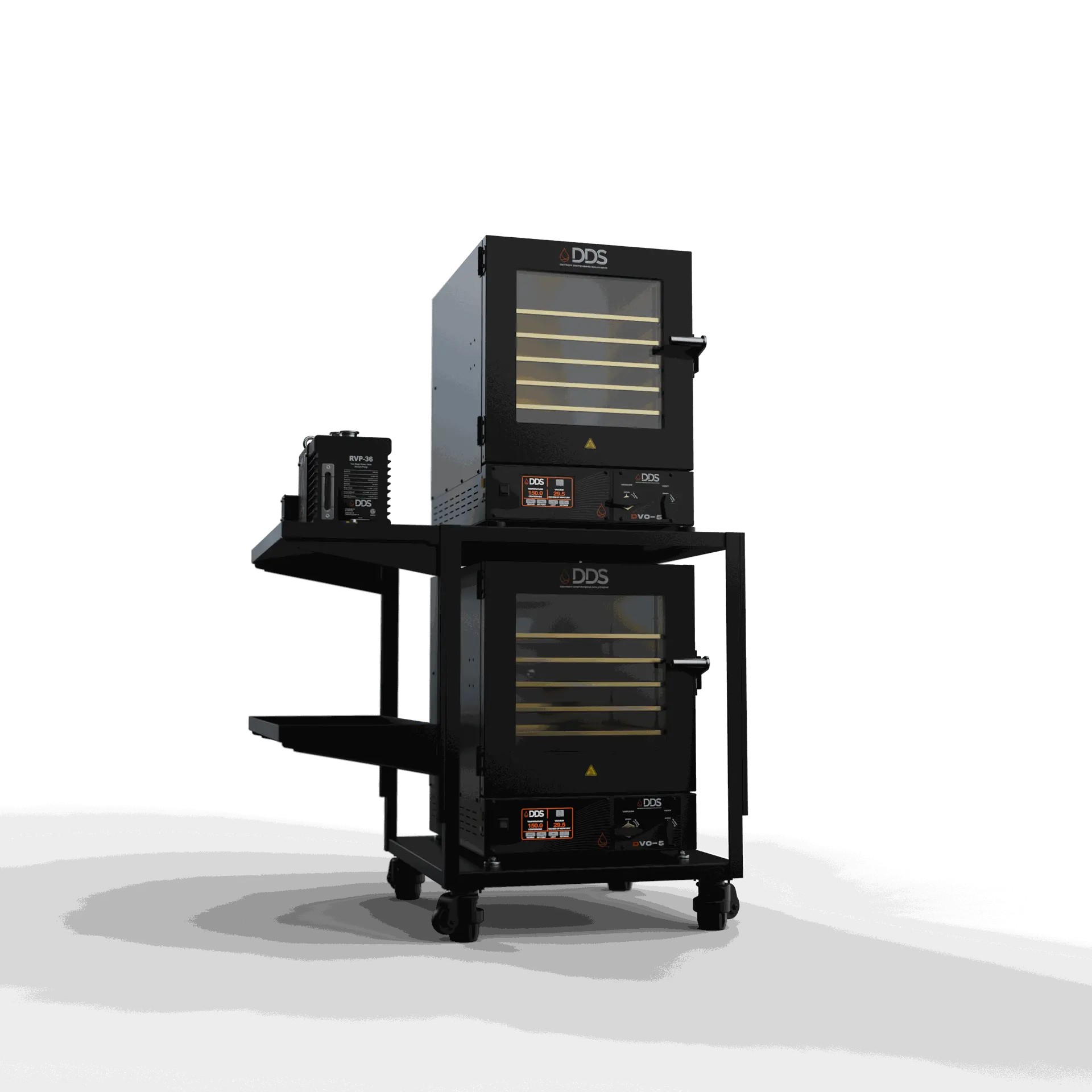

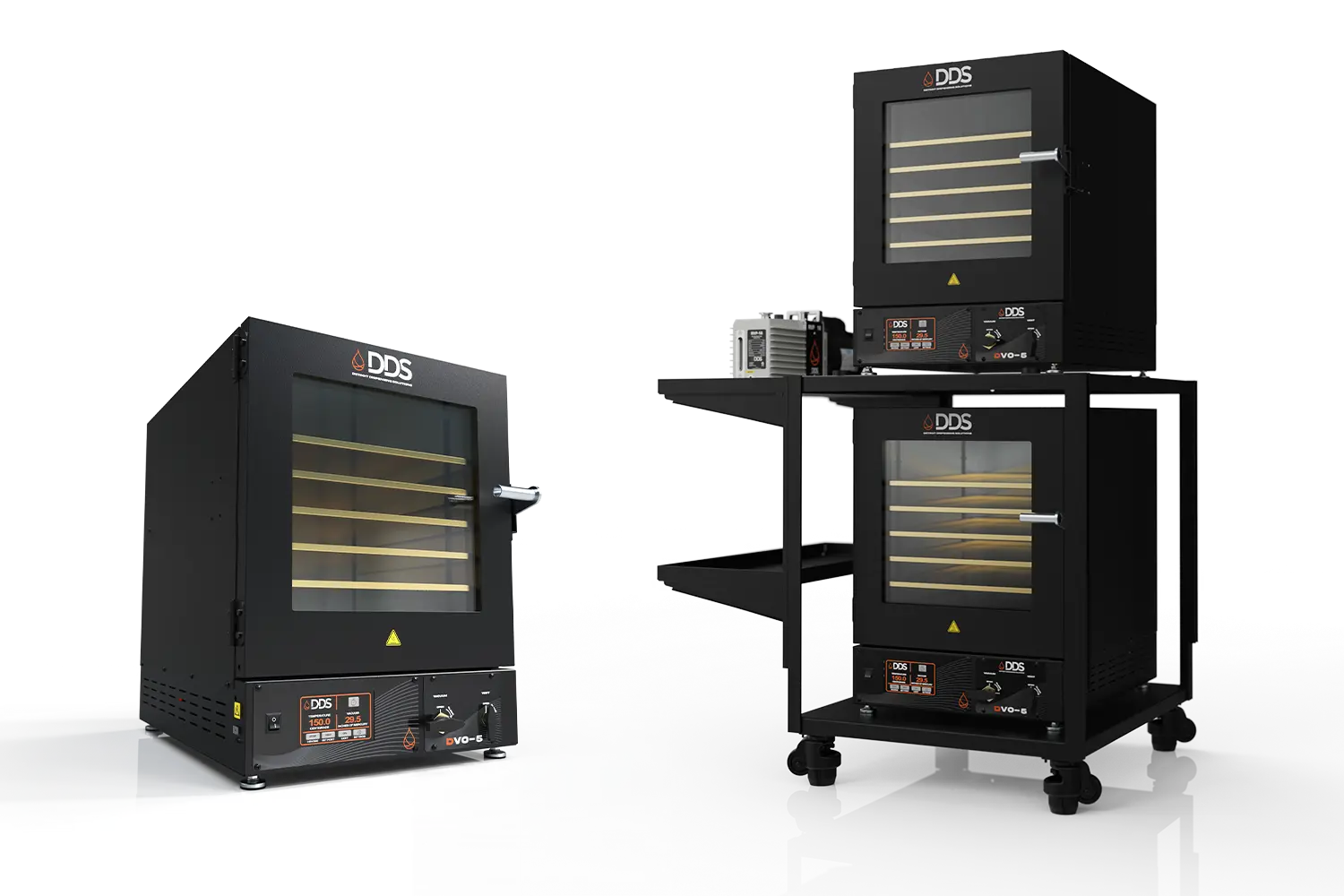

DVO-5 Double Up

Upgrade your workflow with a complete vacuum processing system featuring two DVO-5 Vacuum Ovens, a high-performance cold trap, and a powerful dry scroll vacuum pump. Designed for solvent recovery, material drying, and precision vacuum applications, these packages provide unmatched efficiency and reliability.

Dual-Oven Setup – Double your processing capacity
Advanced Cold Trap Options – Capture vapor efficiently at -50°C or -105°C
Powerful Oil-Free Vacuum Pumps – Maintain deep, stable vacuum levels
Turnkey System with Easy Mobility – Heavy-duty rolling carts keep your setup organized and efficient

Package Breakdown

(2) DVO-5 Vacuum Ovens – Uniform heat distribution and consistent performance
MAXTrap Cold Trap (50 or 105) – Maintains ultra-low temperatures for superior vapor capture
IDP Dry Scroll Vacuum Pump (IDP-7 or IDP-15) – Oil-free, high-efficiency vacuum performance
Max Evap Connection Kits (x2) – Secure, leak-free pump to oven integration
Cold Trap Connection Kit – Reliable vacuum components for pump and cold trap connection
Mobile Carts – Dedicated rolling carts for optimal equipment organization and accessibility

Choose Your Ideal Configuration:

MAXTrap50 (-50°C) or MAXTrap105 (-105°C) Cold Trap
IDP-7 (4.2-5.4 CFM) or IDP-15 (7.5-9.1 CFM) Dry Scroll Vacuum Pump

Sizing

Capacity: 4.5 cuft / 125L
Interior Dimensions: 18"W X 24"D x 18"H
Exterior Dimensions: 33.3"W x 38.6"D x 31.8"H

Temperature Range & Dispersion

Temperature Range: Ambient +15C to 150C (+26F to 302F)
Uniformity @40C (105F): +/- 1.4C (+/- 2.5F)
Uniformity @90C (200F): +/- 4.2C (+/- 7.5F)
Uniformity @150C (300F): +/- 8.9C (+/- 16F)

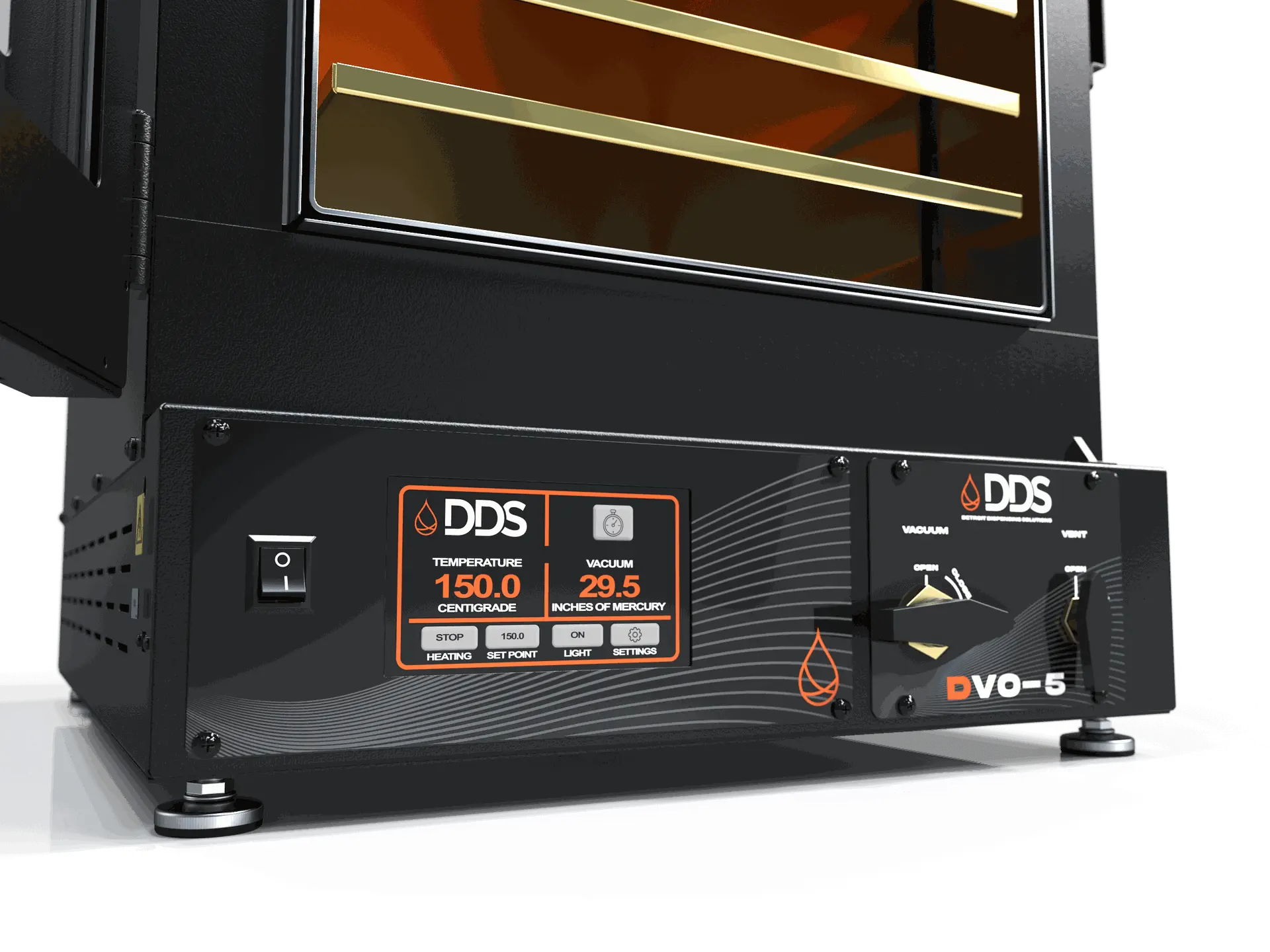

Touch Screen Control

Temperature: Selectable for C or F
Vacuum: Selectable for Torr, Inches Hg, Bar
USB Connection: USB-A Port for Easy In-Field Upgrades

Shelving (Aluminum)

5 Removable & Adjustable Shelves (8 Max)
Surface Area: 18"W x 24"D
Weight Capacity: 225lbs Total (22.7Kg)
Optional Stainless Steel Shelving

Equipment Options

Stainless Steel Exterior & Shelving
High Temp (220C) with Programmable Control
Data Logging

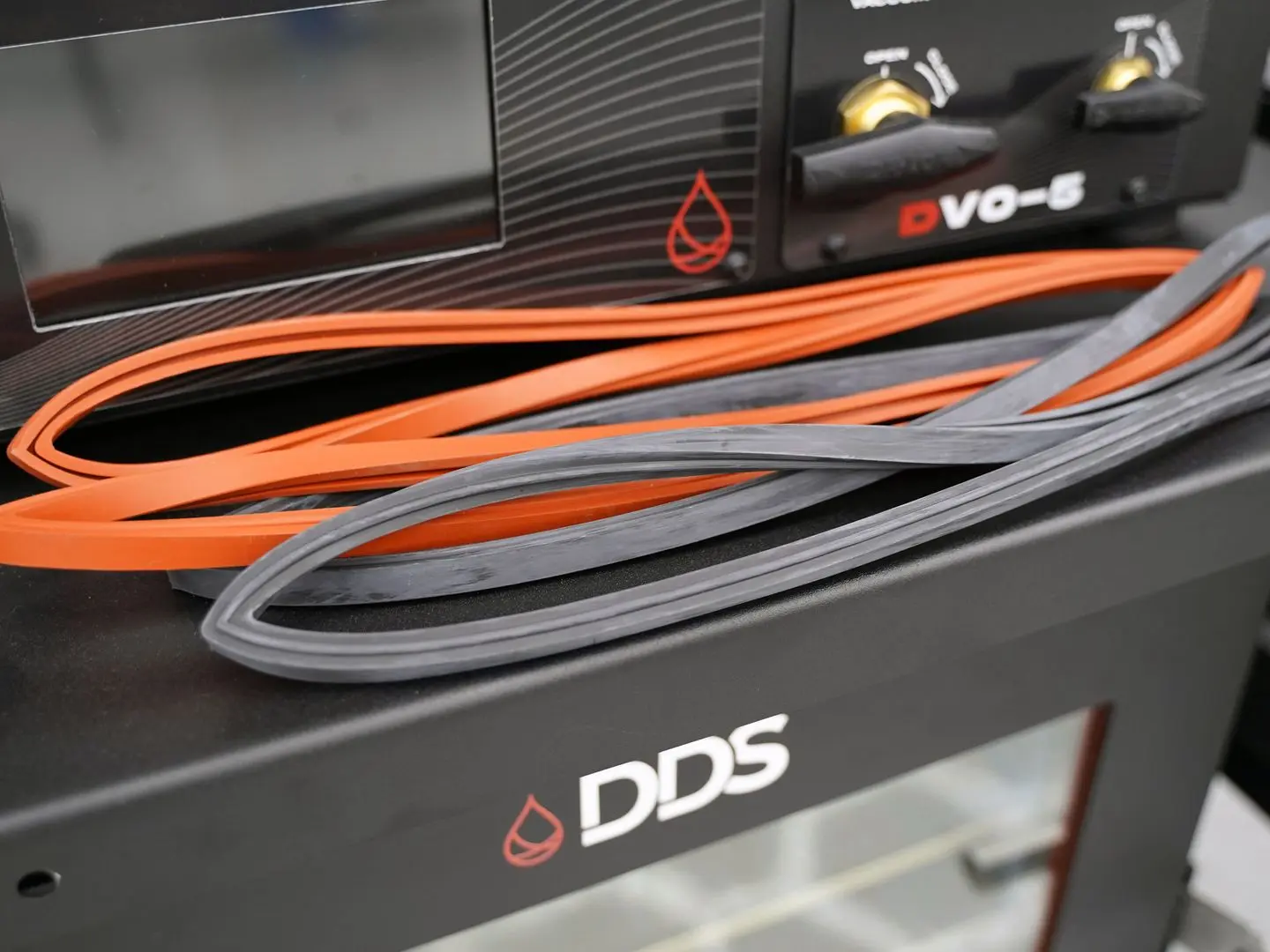

Door Gasket Materials: Viton, BUNA-N, Floura-Silicone
120V (Standard) or 220V Configuration

Temperature Performance From Vacuum

Stability @40C (105F): +/- 0.2C (+/- 0.3C)
Stability @90C (200F): +/- 0.2C (+/- 0.3C)
Stability @150C (300F): +/- 0.2C (+/- 0.3C)
Heat Up from 25C (77F) to Stabilization:
- To 40.5C (105F) 60 minutes
- To 93.3C (200F) 126 minutes
- To 150C (302F) 180 minutes

Vacuum Connections

Vacuum Line: 3/8" (9.5mm) Barb
Vent & Inert Gas: 1/4" (6mm) Barb
Access Port: KF-25 for Feedthroughs or MAXEVAP Connection

Facilities

Power (50/60 Hz):
- 120V / 1PH / 14 AMPS
- 220V / 1PH / 7 AMPS
Plug/Outlet (Power Cord Included):
- 120V - NEMA 5-15R
- 220V - NEMA 6-15R
BTU @ Full Power:
- 120V - 1105 BTU/hr
- 220V - 1228 BTU/hr
Unit Shipping Weight:
- 163kg (360lbs)
- 204kg (449lbs)

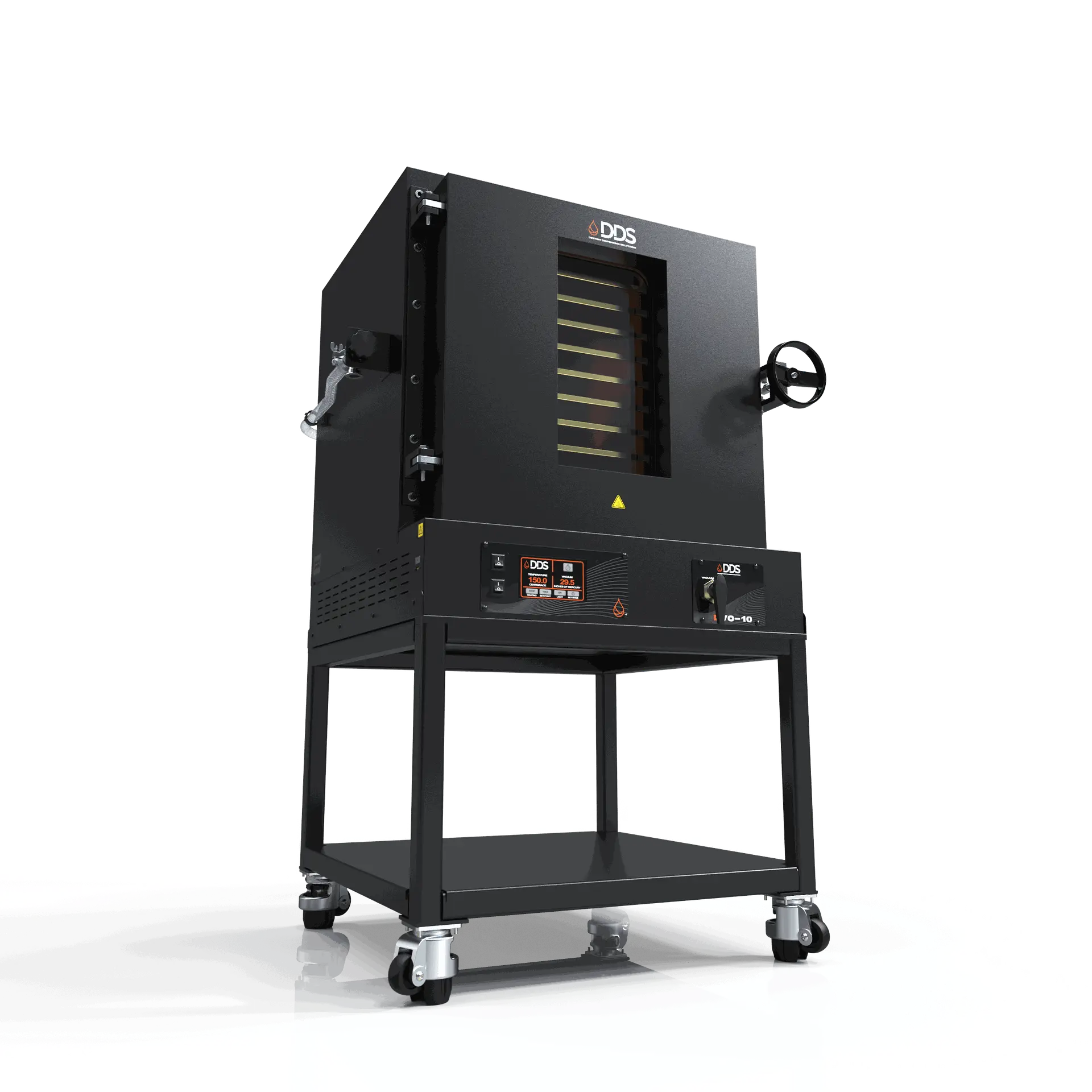

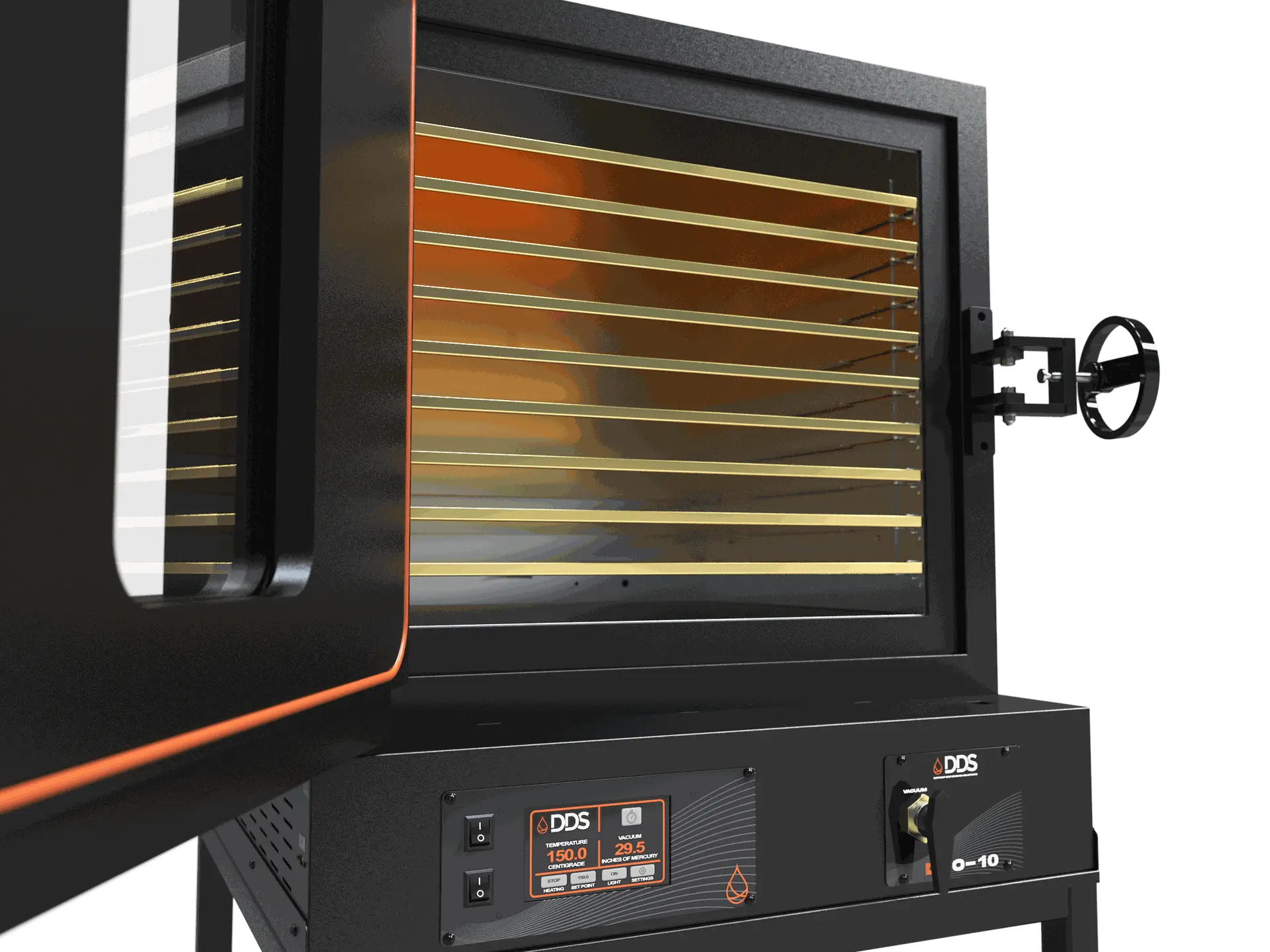

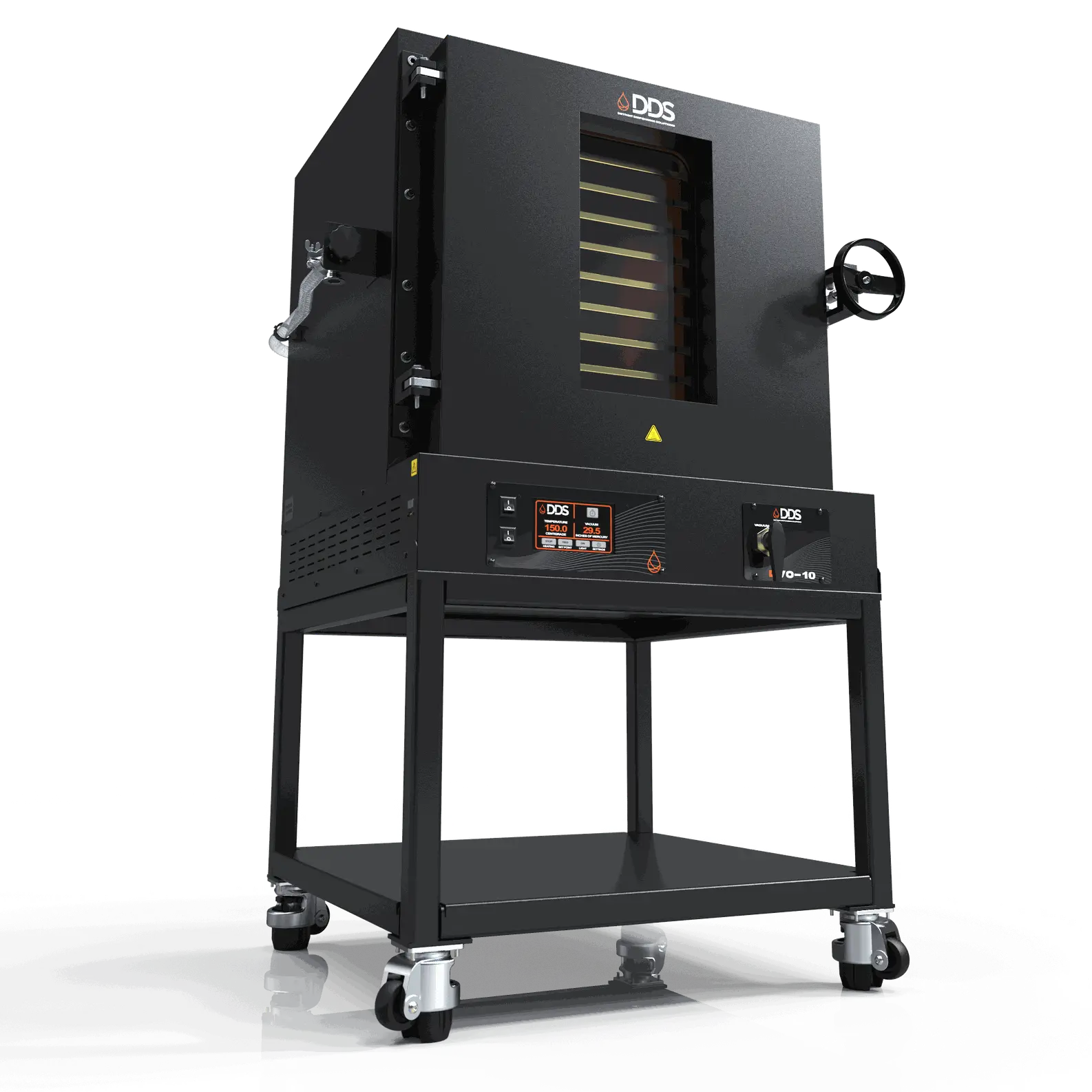

DVO-10

DVO-10 Vacuum Oven Overview

The DVO-10 Vacuum Oven from Detroit Dispensing Solutions offers the highest capacity in the DDS lineup at 9.3 cu. ft., built for production-scale drying and purging. With nine full-extension sliding shelves, KF-25 connections, LED chamber lighting, and robust Swagelok® valves, this vacuum oven is trusted by the industry’s most demanding processors for large-scale extractions and post-processing.

Stainless Interior
Lighted Viewing Window
Easy Quarter-Turn Vacuum Valves
Inert Gas Backfill Equipped
Temp Probe Inside Chamber for Accurate Temperatures
KF-25 Access Port on Rear of Vessel
Adjustable Leveling Feet
ANSI-Rated Tempered Glass

Technical Specs

Sizing

Capacity: 9.3 cuft
Interior Dimensions: 28"W X 24"D x 24"H
Exterior Dimensions: 42.3"W x 43"D x 42.3"H (67.6"H with stand)
- Does not fit through standard 36" doorway

Temperature Range & Dispersion

Temperature Range: Ambient +15C to 150C (+26F to 302F)
Uniformity @40C (105F): +/- 1.5C

Shelving (Aluminum)

9 Removable & Adjustable Shelves
Optional Stainless Steel Shelving

Equipment Options

Stainless Steel Exterior & Shelving
High Temp (220C) with Programmable Control
Data Logging
120V (Standard) or 220V Configuration

Temperature Performance From Vacuum

Stability @40C (105F): +/- 1.5C

Vacuum Connections

Vacuum Line: KF25, 1" Lines, 1" Valve
Vent & Inert Gas: 1/2" Barb
Access Port: KF-25 for Feedthroughs or MAXEVAP Connection

Facilities

Power (50/60 Hz):
- 220V / 1PH / 10 FLA
- Will run on 208V Service
Cord Type:
- NEMA 6-15R 220 - 240V International Options
Unit Shipping Weight:
- 663lbs
- 775lbs

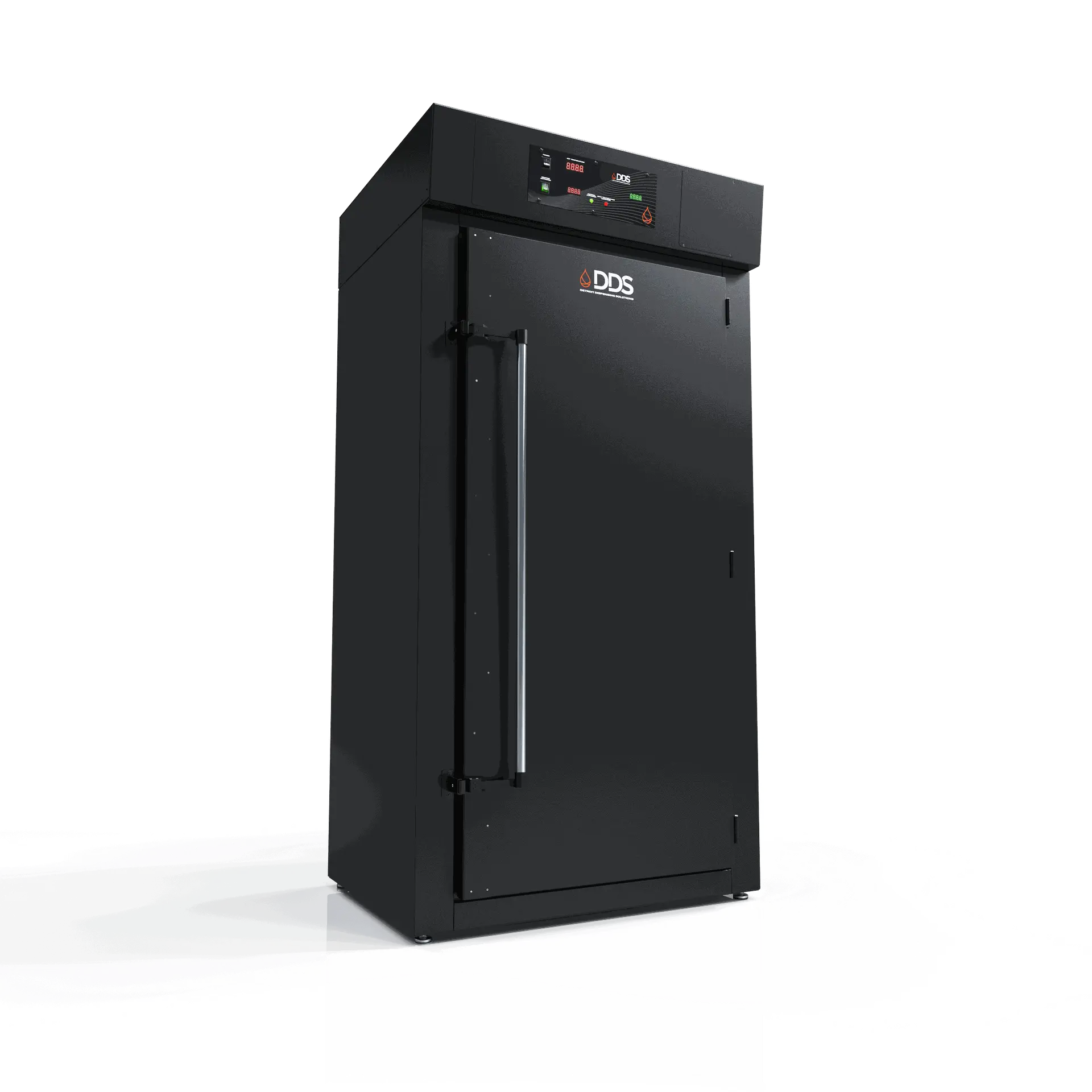

DDO-28

DDO-28 Dry Oven Overview

The Detroit Dispensing Solutions DDO-28 Dry & Decarb Oven is a high-capacity solution specifically engineered for biomass decarboxylation and moisture removal. Designed for industrial-scale workflows, this oven uses horizontal, forced-air convection and real-time humidity sensing to ensure uniform drying across every shelf. Ideal for cannabis, hemp, and botanical processors aiming for consistency, compliance, and efficiency in pre-extraction or post-harvest processing.

Humidity Control
Interior Space
Energy-Efficient Heating System
Versatile Applications

Technical Specs

Extra-Large Capacity: 28 Cu. Ft. for bulk processing
Voltage: 220-240V Operation - Optimized for industrial use
Advanced Humidity Sensors: Ensure precision drying & moisture control
6 Durable Stainless Steel Shelves: Corrosion-resistant and easy to clean
Consistent Heat Distribution: Uniform drying for optimal results
Heavy-Duty Construction: Built for durability & long-term performance
