DVO-10

Vacuum Oven

9.3 Cu. Ft. DDS Vacuum Oven – Maximum Capacity & Power High Volume | Uniform Heat Distribution | Industrial-Strength Performance

Request a Quote

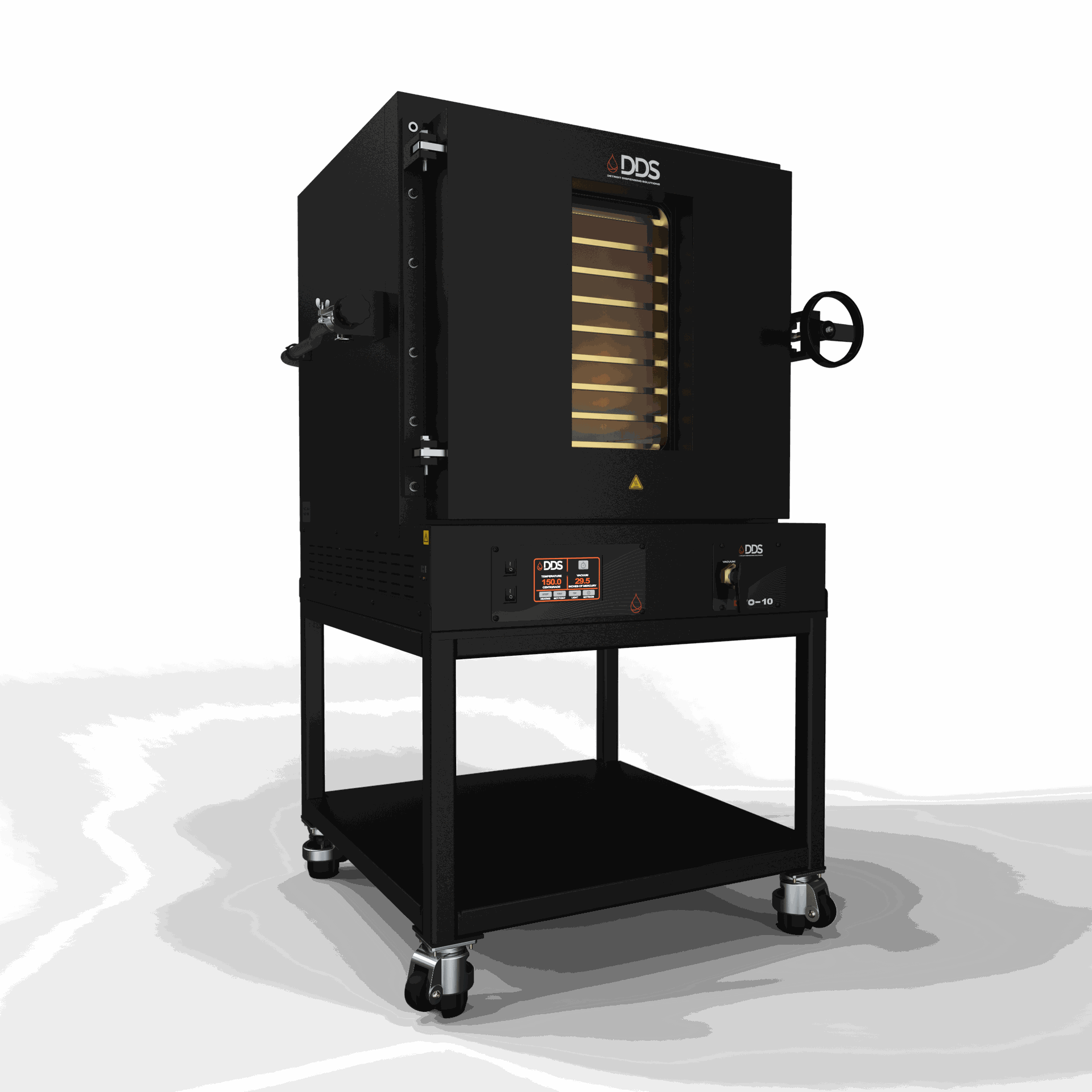

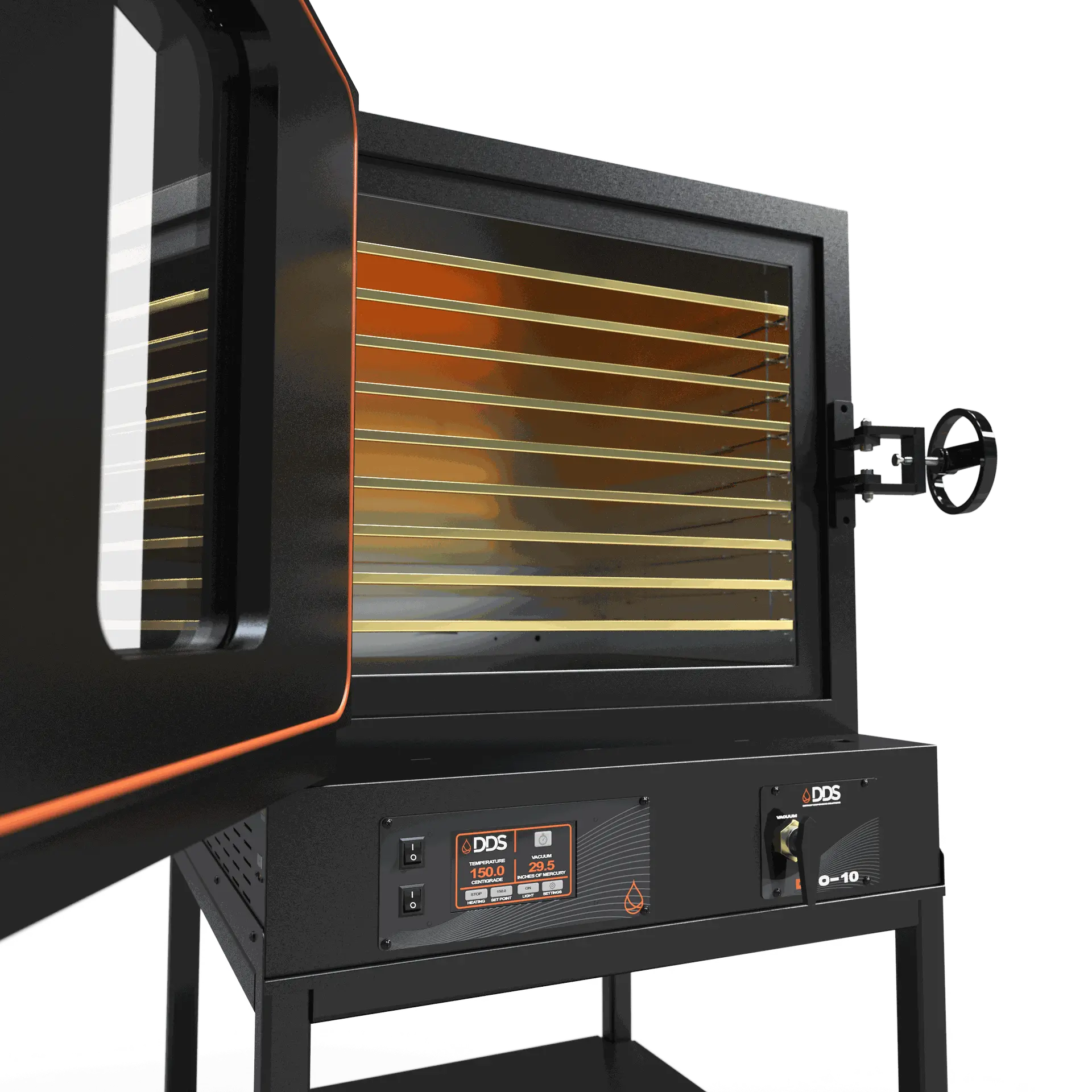

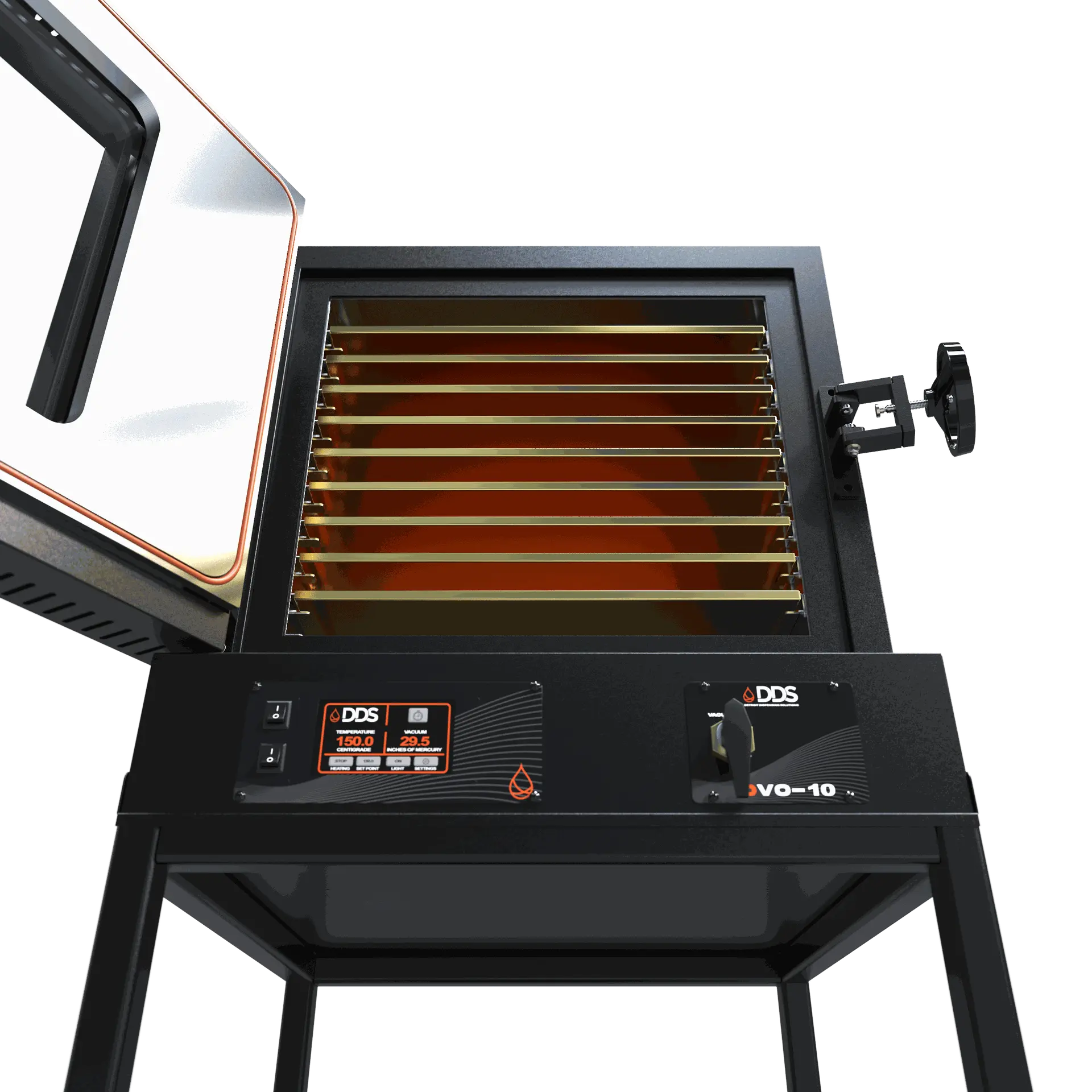

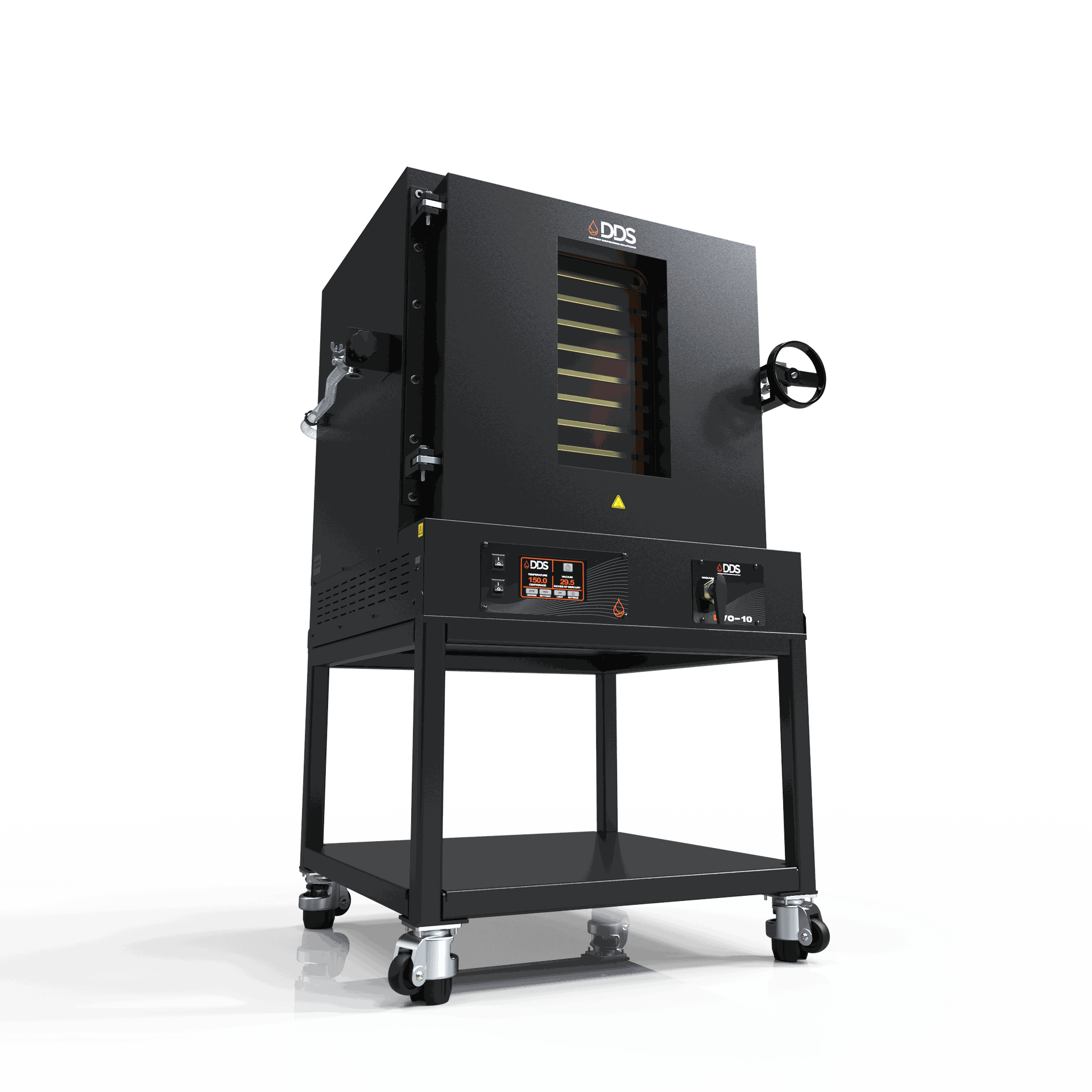

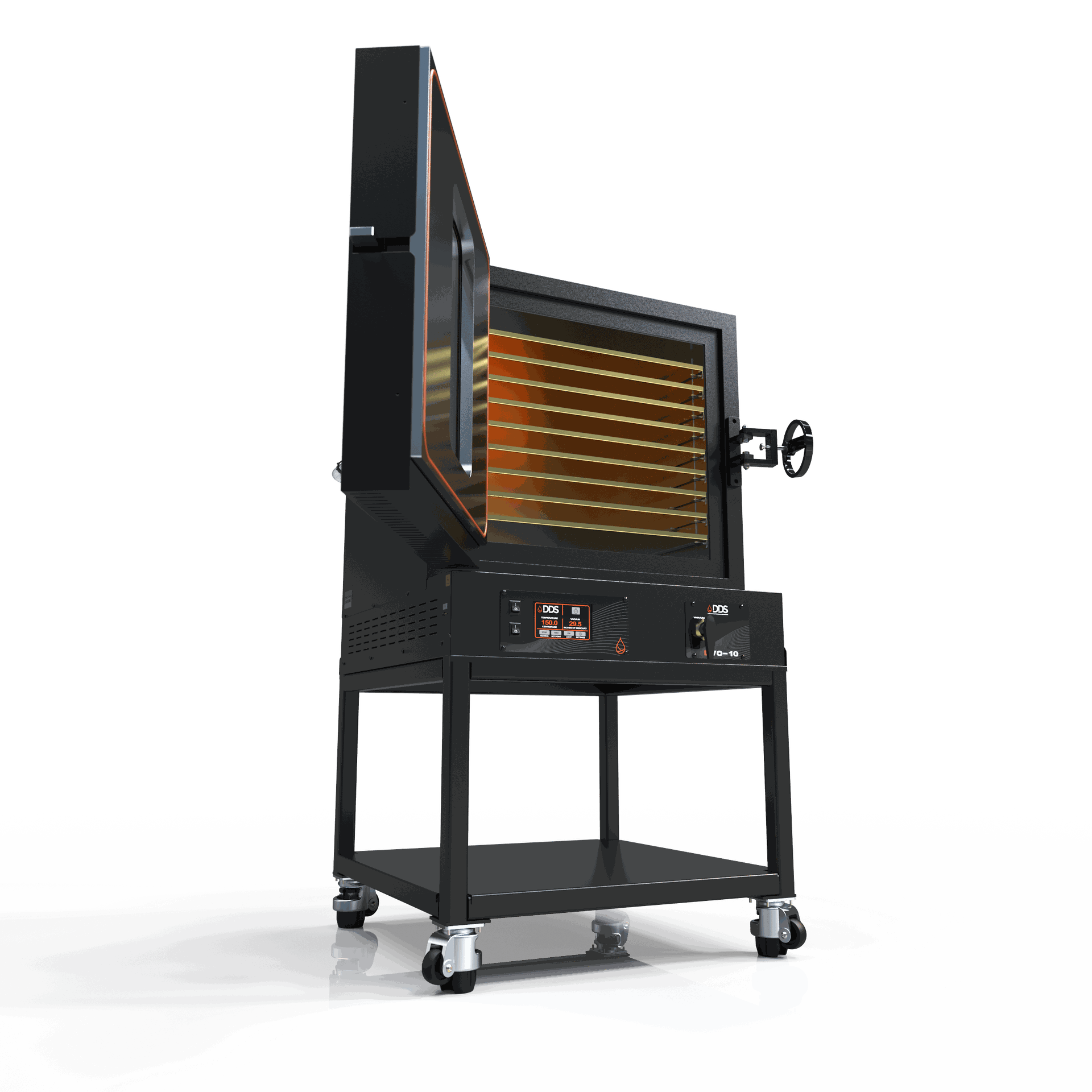

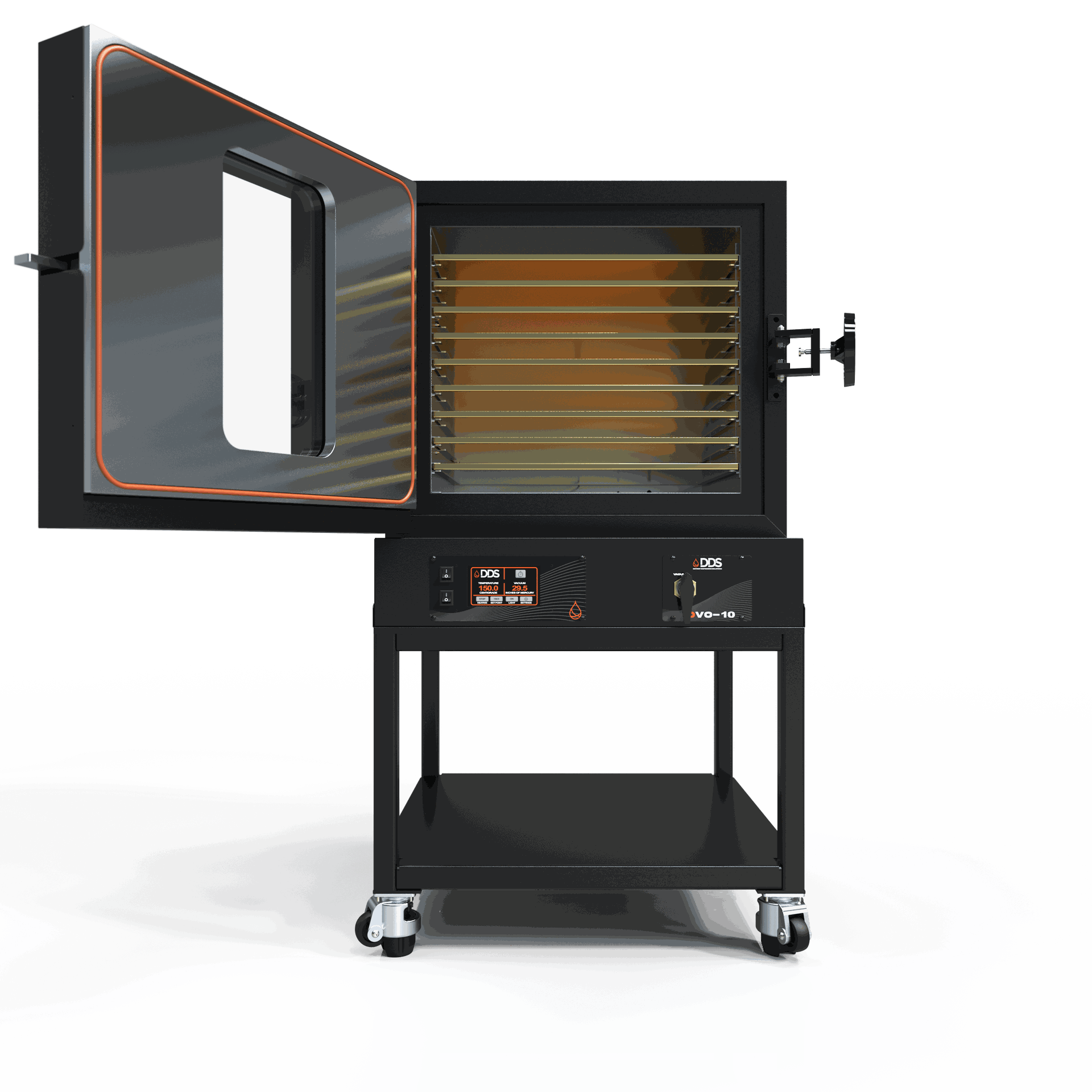

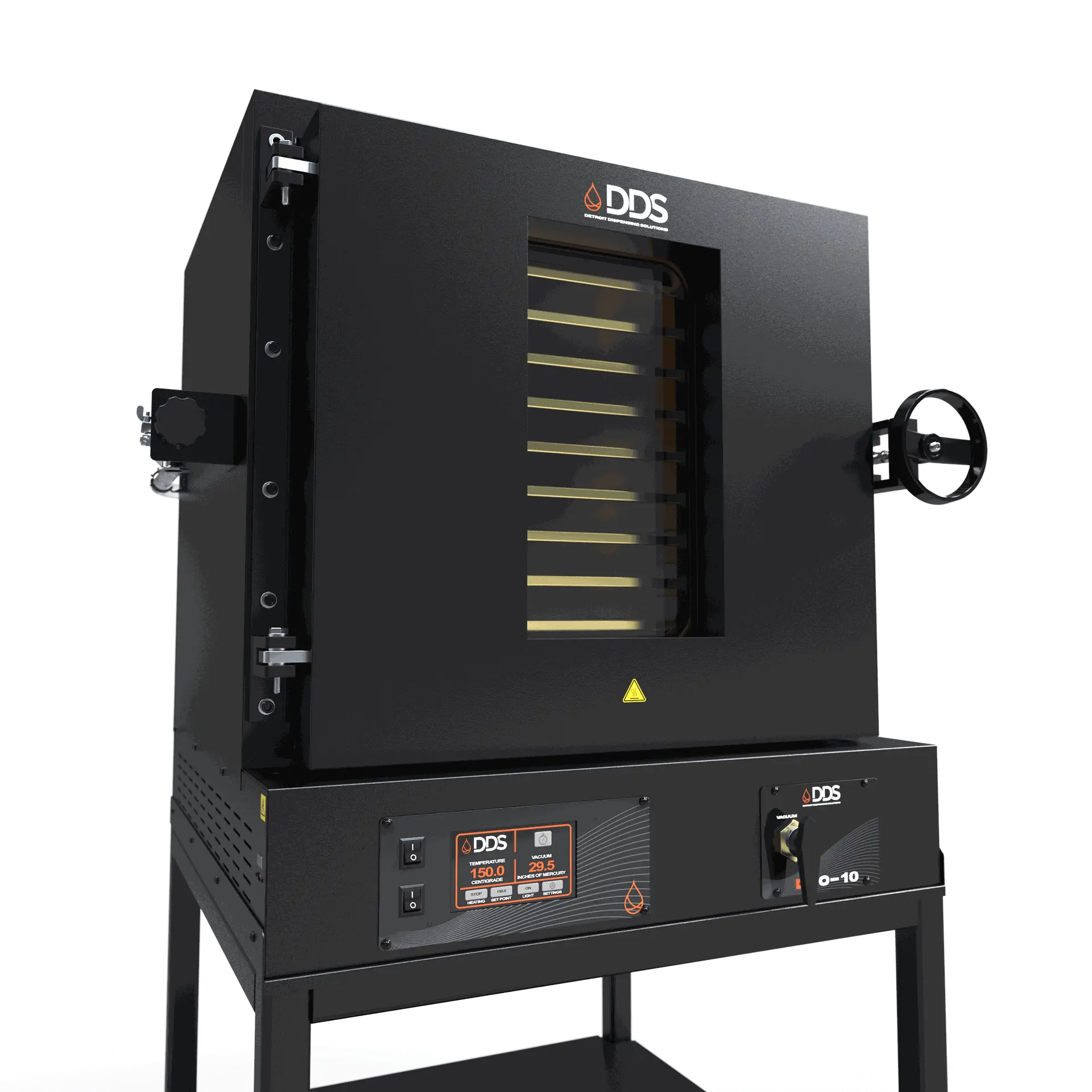

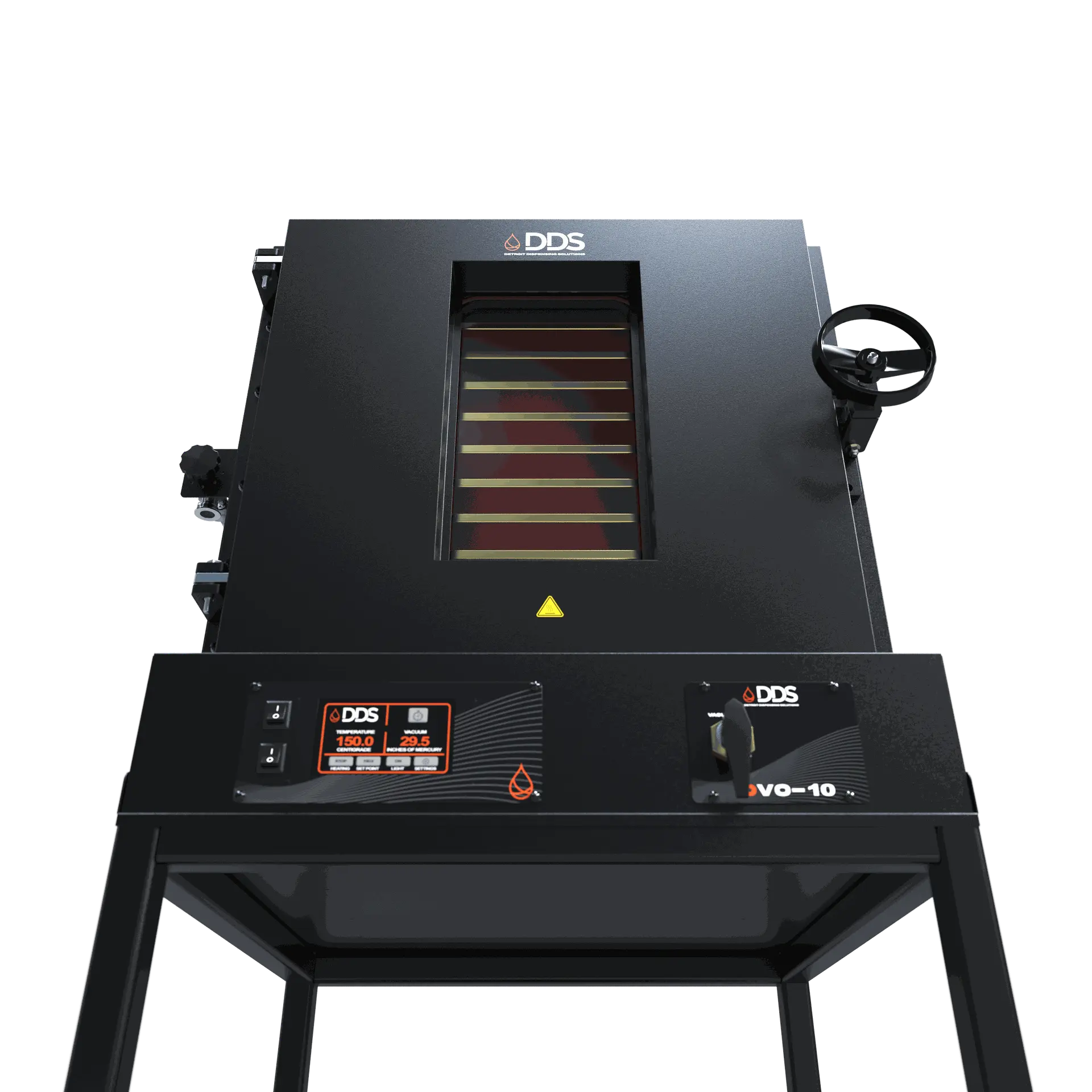

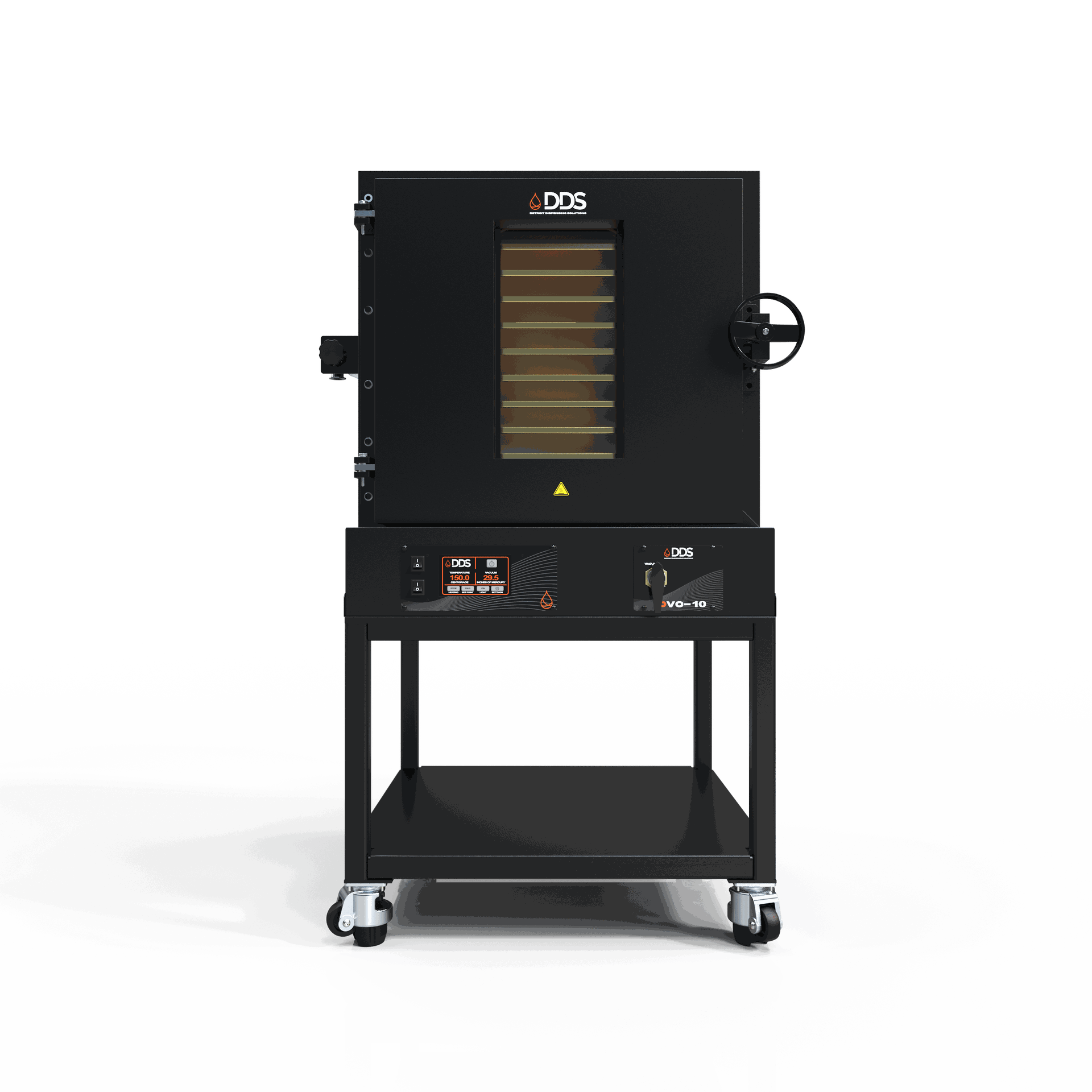

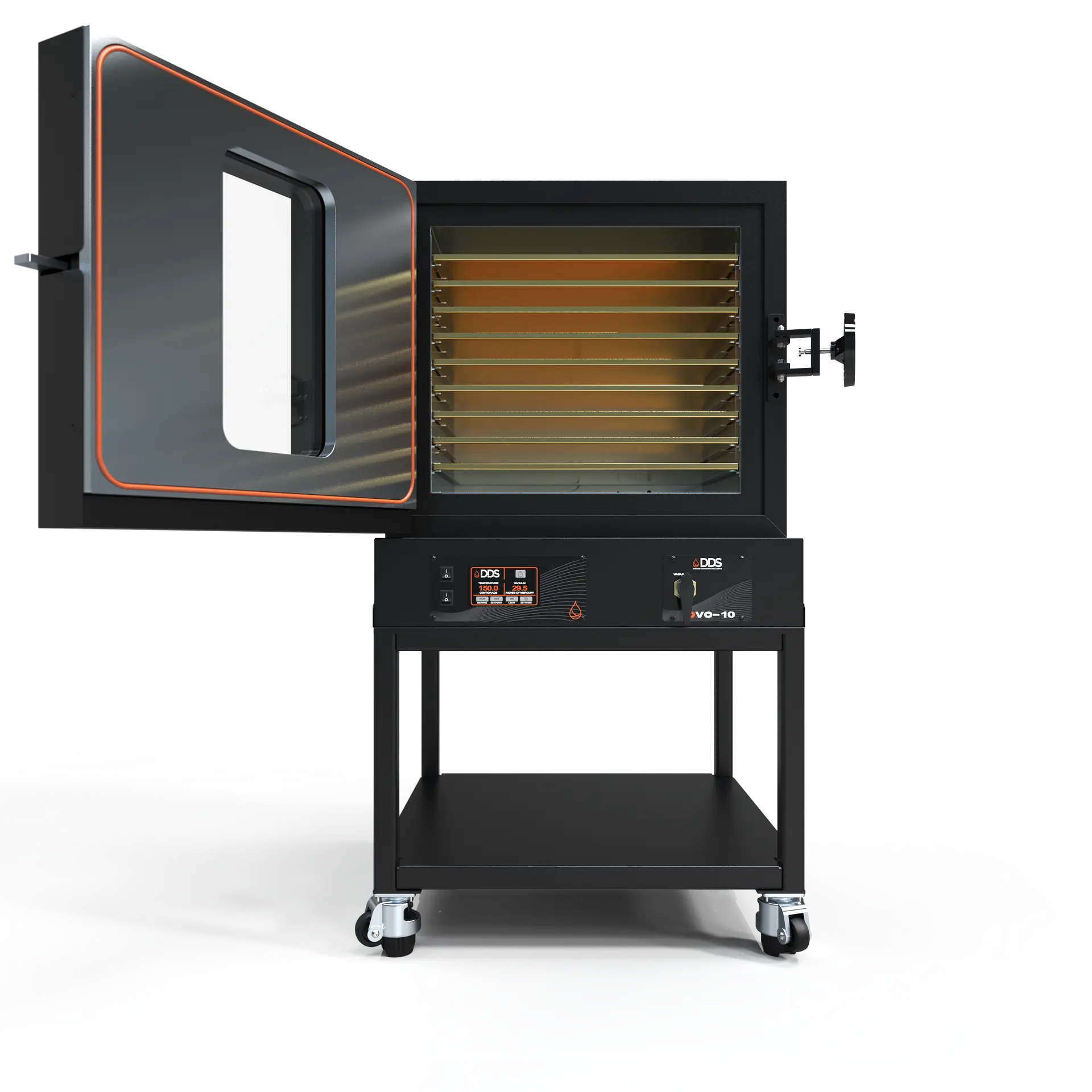

DVO-10 Vacuum Oven Overview

The DVO-10 Vacuum Oven from Detroit Dispensing Solutions offers the highest capacity in the DDS lineup at 9.3 cu. ft., built for production-scale drying and purging. With nine full-extension sliding shelves, KF-25 connections, LED chamber lighting, and robust Swagelok® valves, this vacuum oven is trusted by the industry’s most demanding processors for large-scale extractions and post-processing.

Stainless Interior
Lighted Viewing Window
Easy Quarter-Turn Vacuum Valves
Inert Gas Backfill Equipped

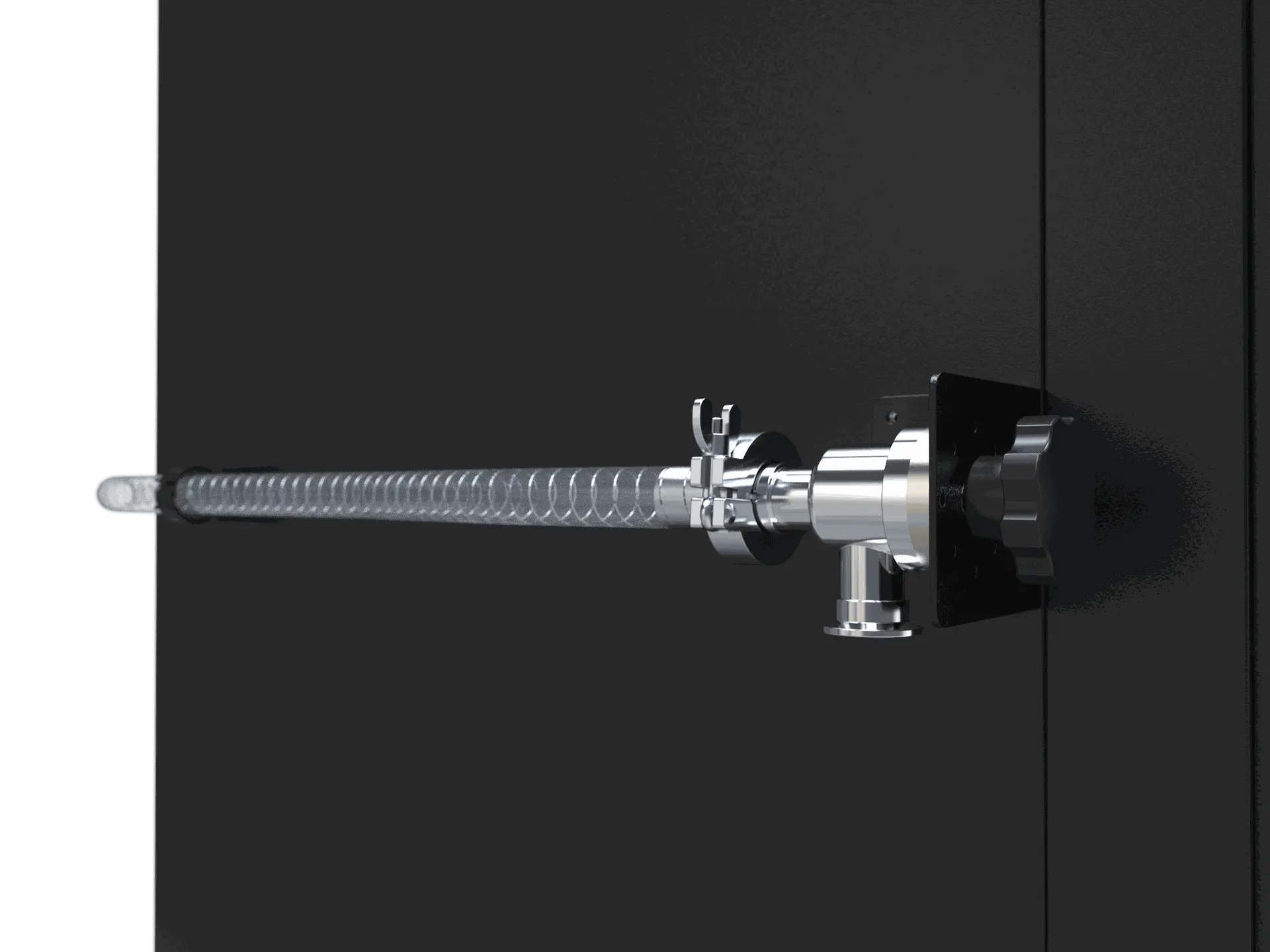

Temp Probe Inside Chamber for Accurate Temperatures
KF-25 Access Port on Rear of Vessel
Adjustable Leveling Feet
ANSI-Rated Tempered Glass

Technical Specs

Sizing

Capacity: 9.3 cuft
Interior Dimensions: 28"W X 24"D x 24"H
Exterior Dimensions: 42.3"W x 43"D x 42.3"H (67.6"H with stand)
- Does not fit through standard 36" doorway

Temperature Range & Dispersion

Temperature Range: Ambient +15C to 150C (+26F to 302F)
Uniformity @40C (105F): +/- 1.5C

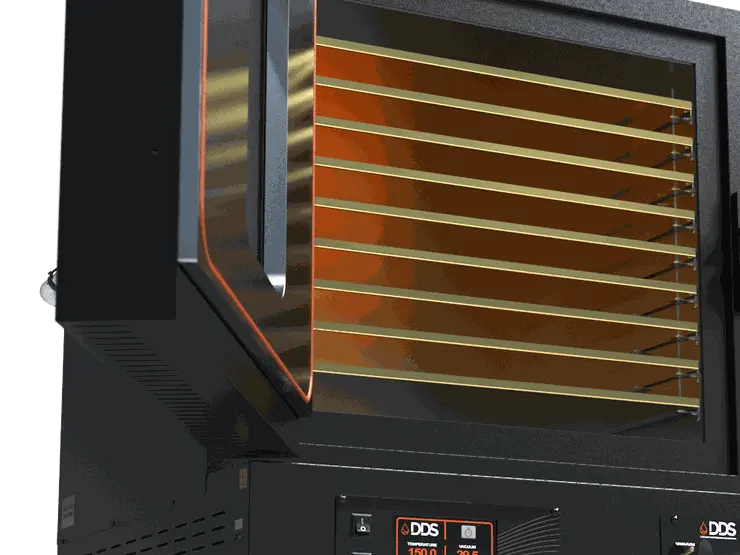

Shelving (Aluminum)

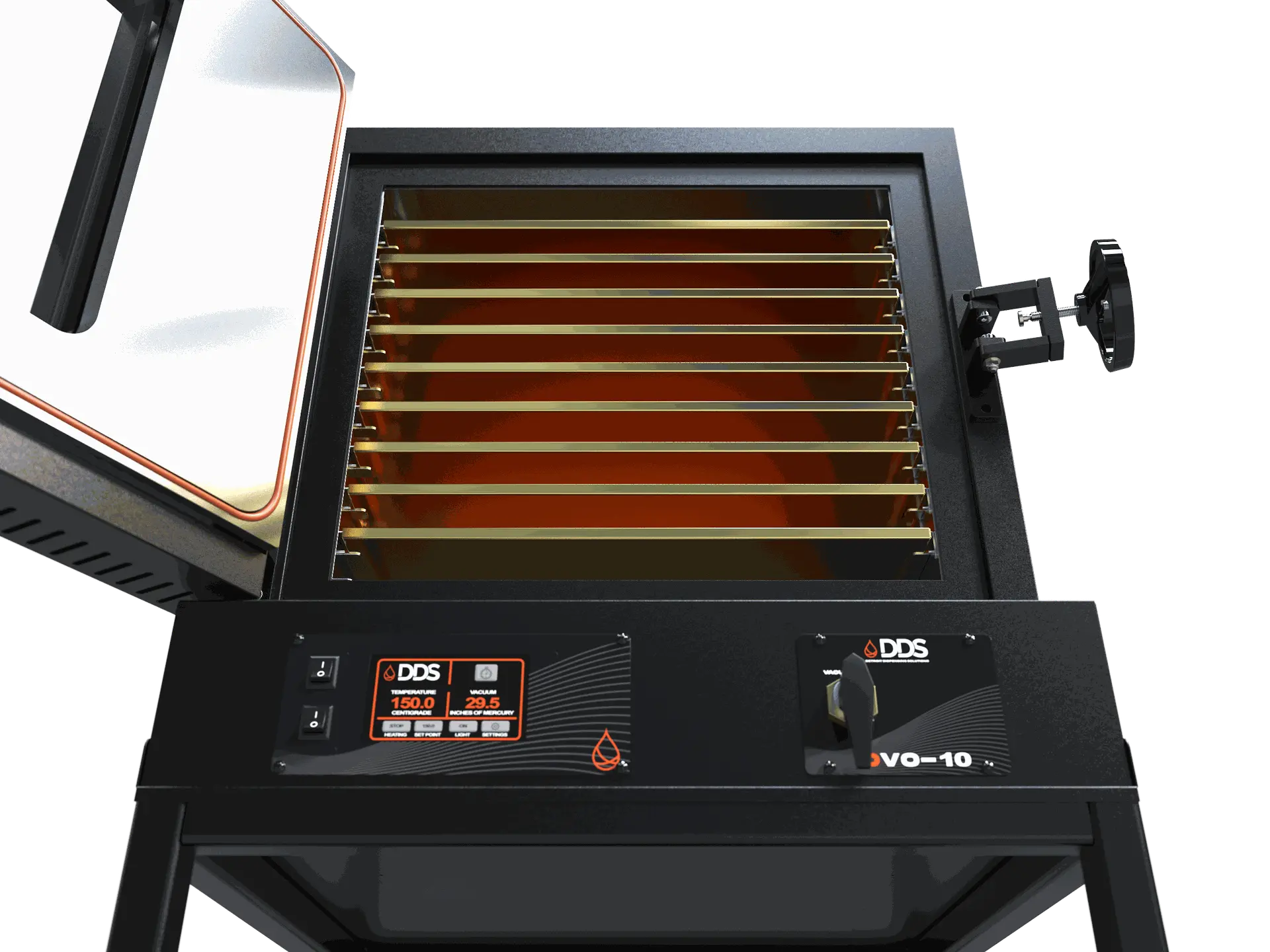

9 Removable & Adjustable Shelves
Optional Stainless Steel Shelving

Equipment Options

Stainless Steel Exterior & Shelving
High Temp (220C) with Programmable Control
Data Logging
120V (Standard) or 220V Configuration

Temperature Performance From Vacuum

Stability @40C (105F): +/- 1.5C

Vacuum Connections

Vacuum Line: KF25, 1" Lines, 1" Valve
Vent & Inert Gas: 1/2" Barb
Access Port: KF-25 for Feedthroughs or MAXEVAP Connection

Facilities

Power (50/60 Hz):
- 220V / 1PH / 10 FLA
- Will run on 208V Service
Cord Type:
- NEMA 6-15R 220 - 240V International Options
Unit Shipping Weight:
- 663lbs
- 775lbs
