DVO-2

Vacuum Oven

1.67 Cu. Ft. DDS Vacuum Oven – Premium Drying & Curing Compact | High Efficiency | Reliable Performance

Request a Quote

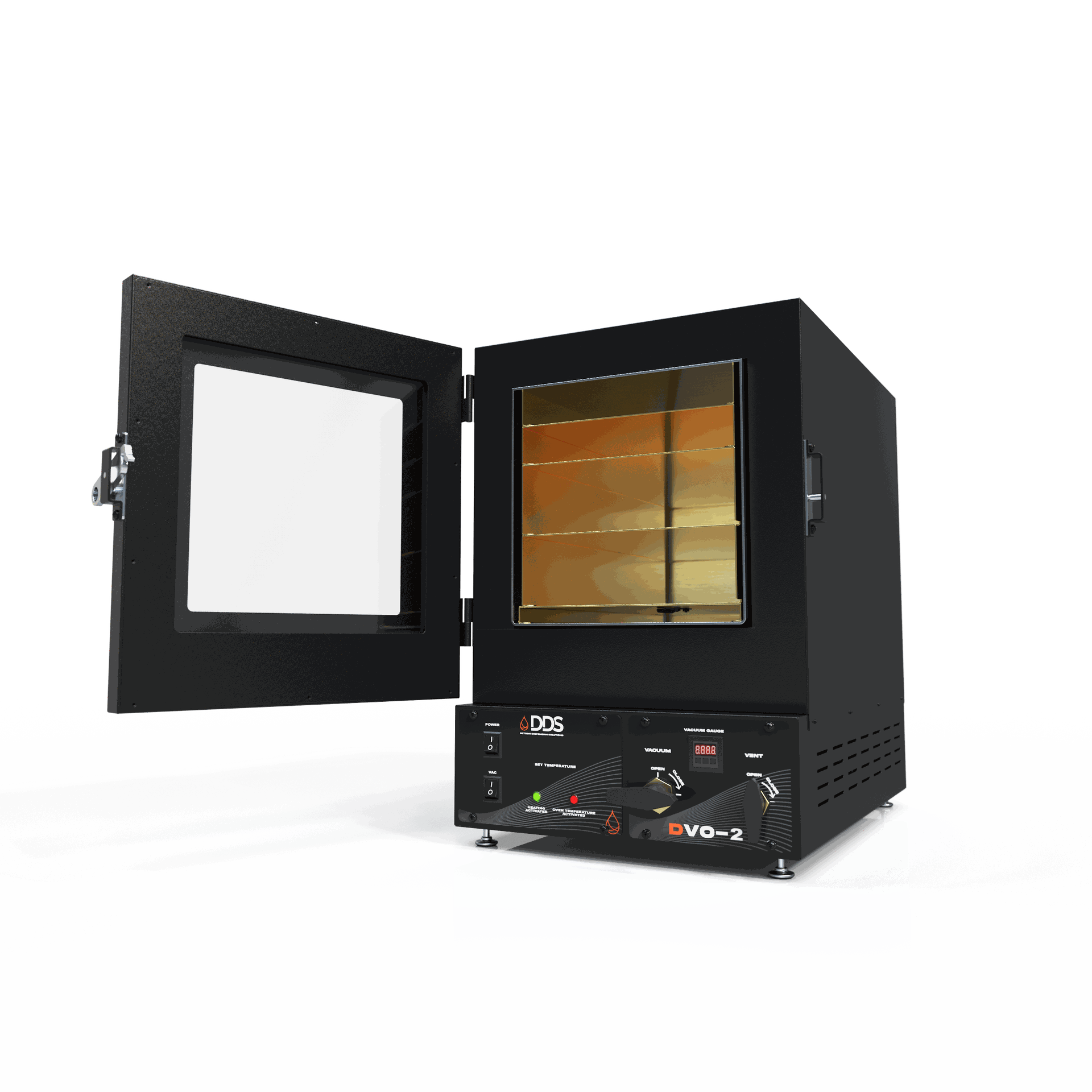

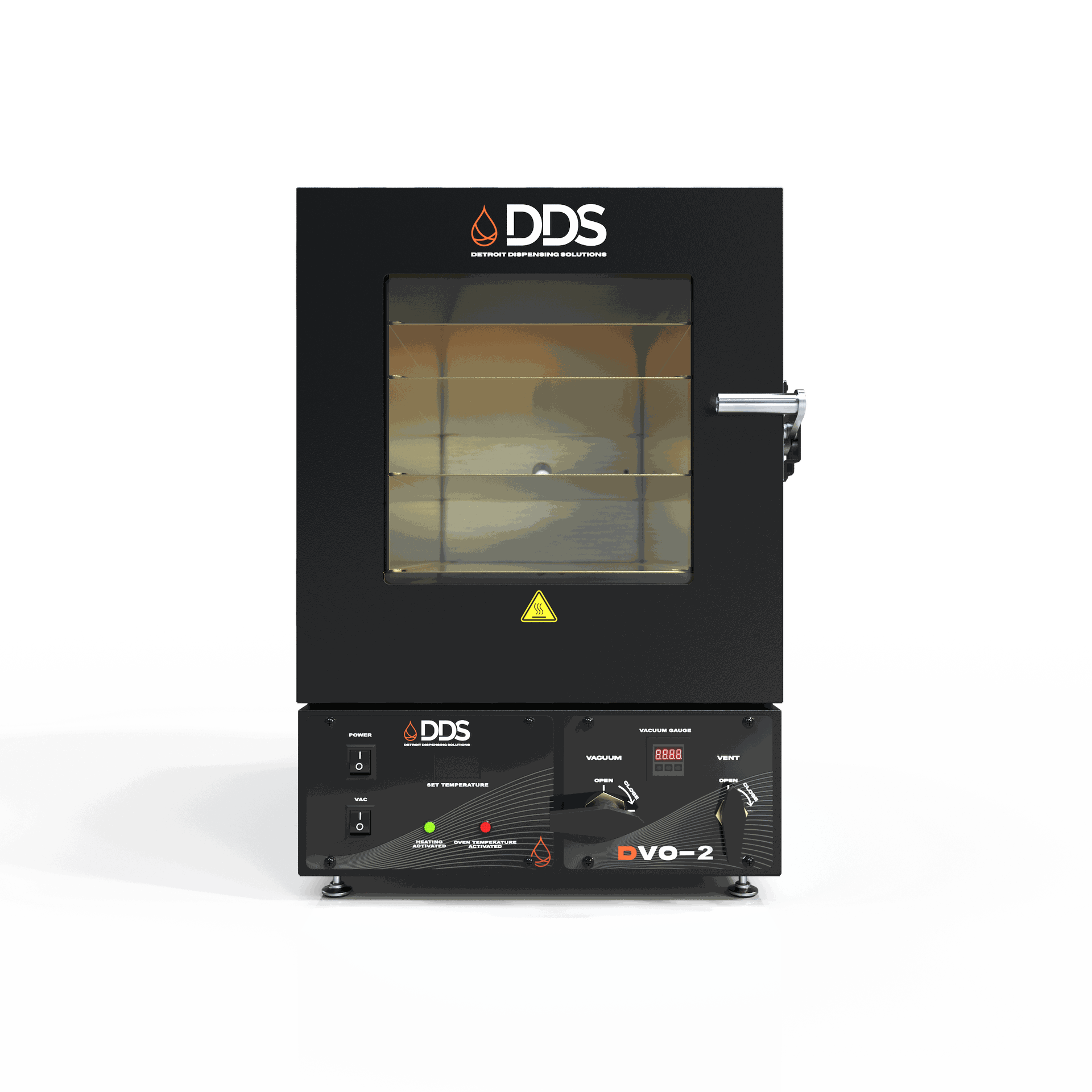

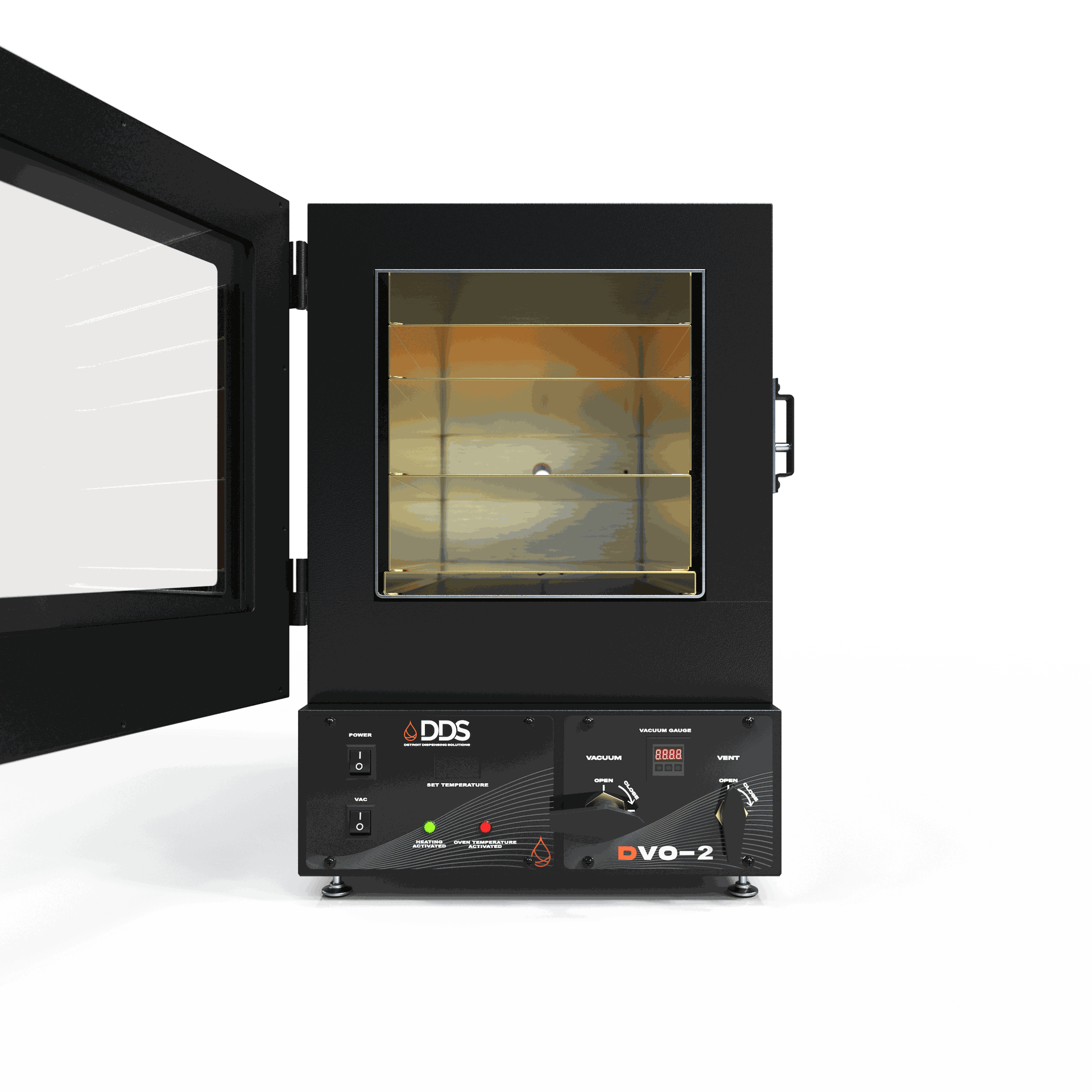

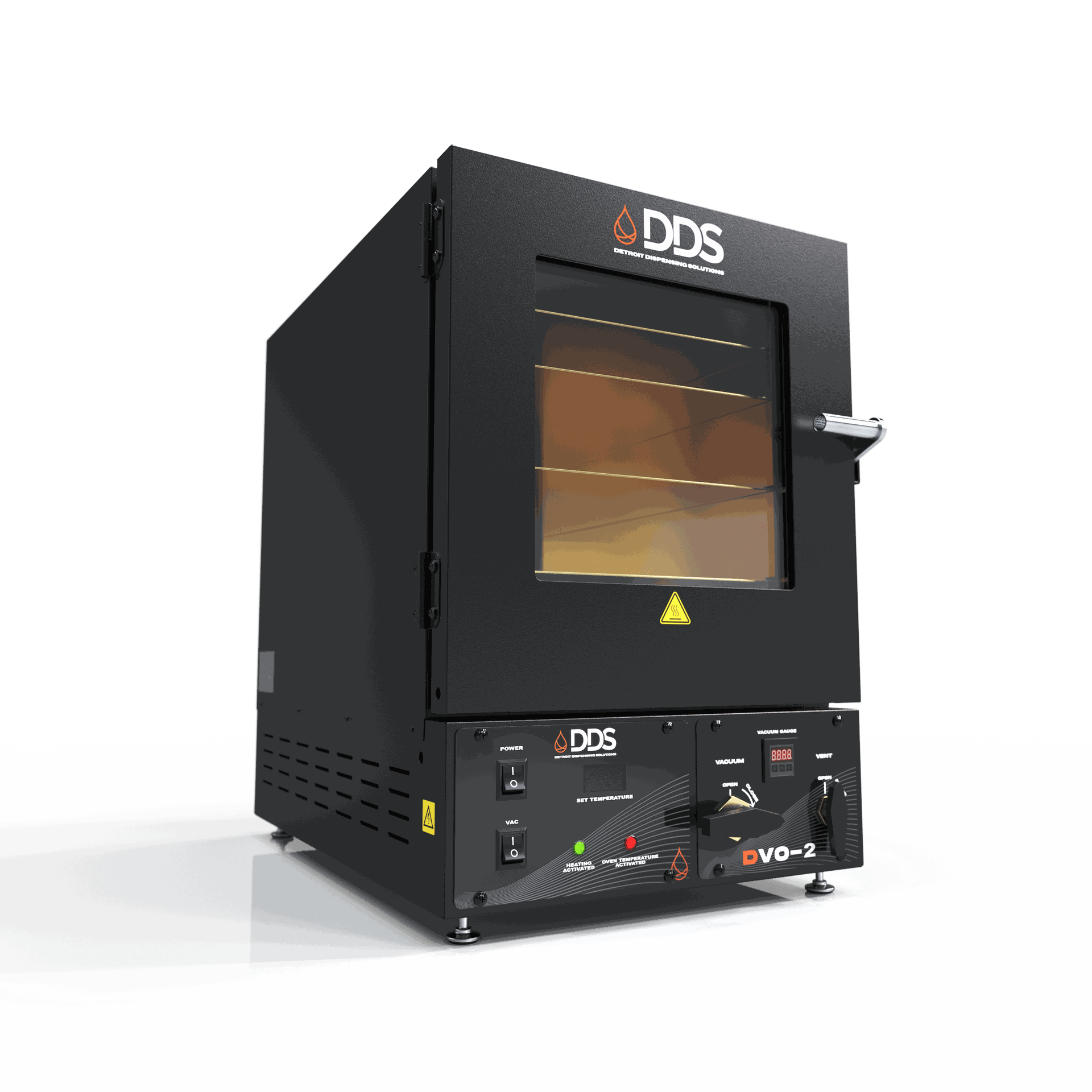

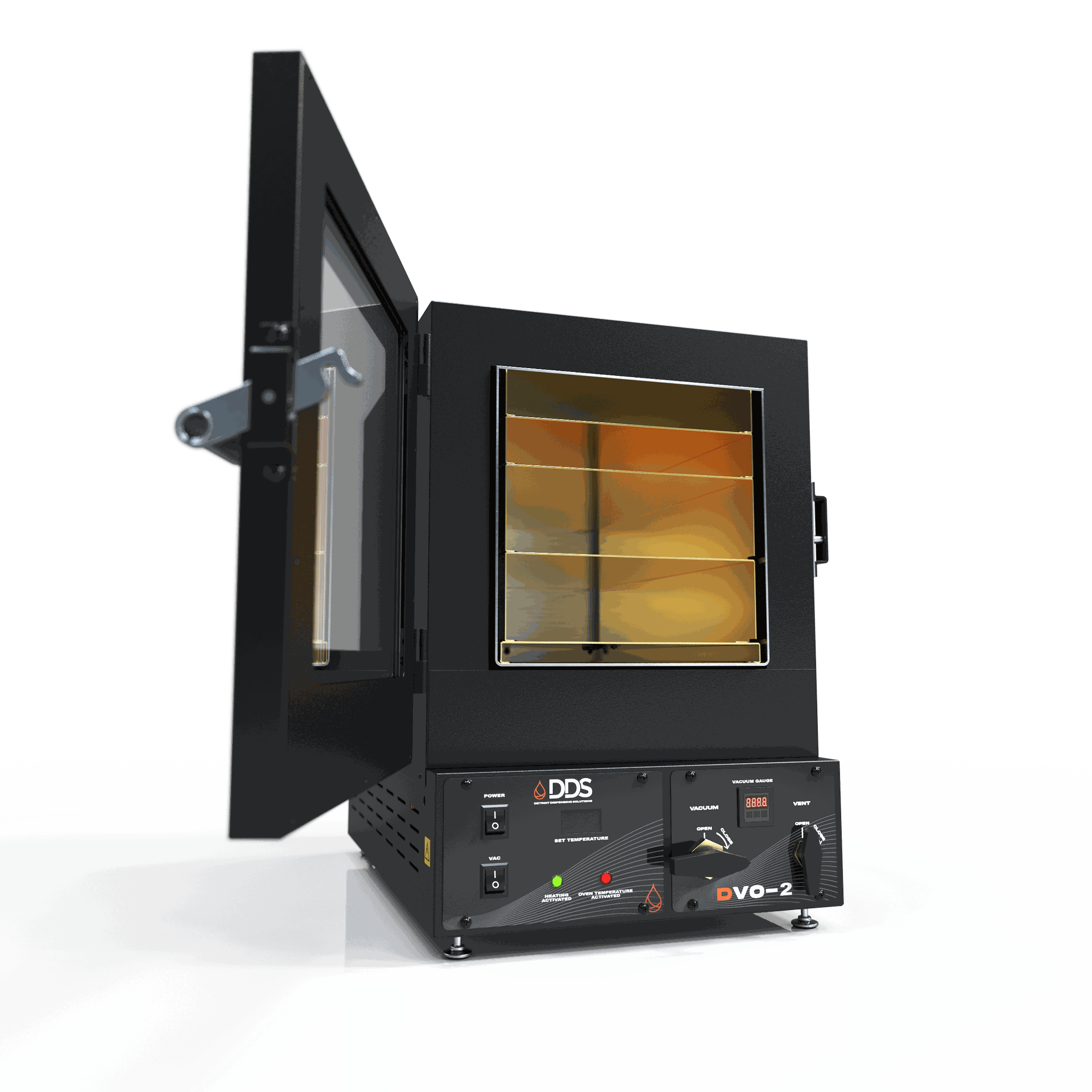

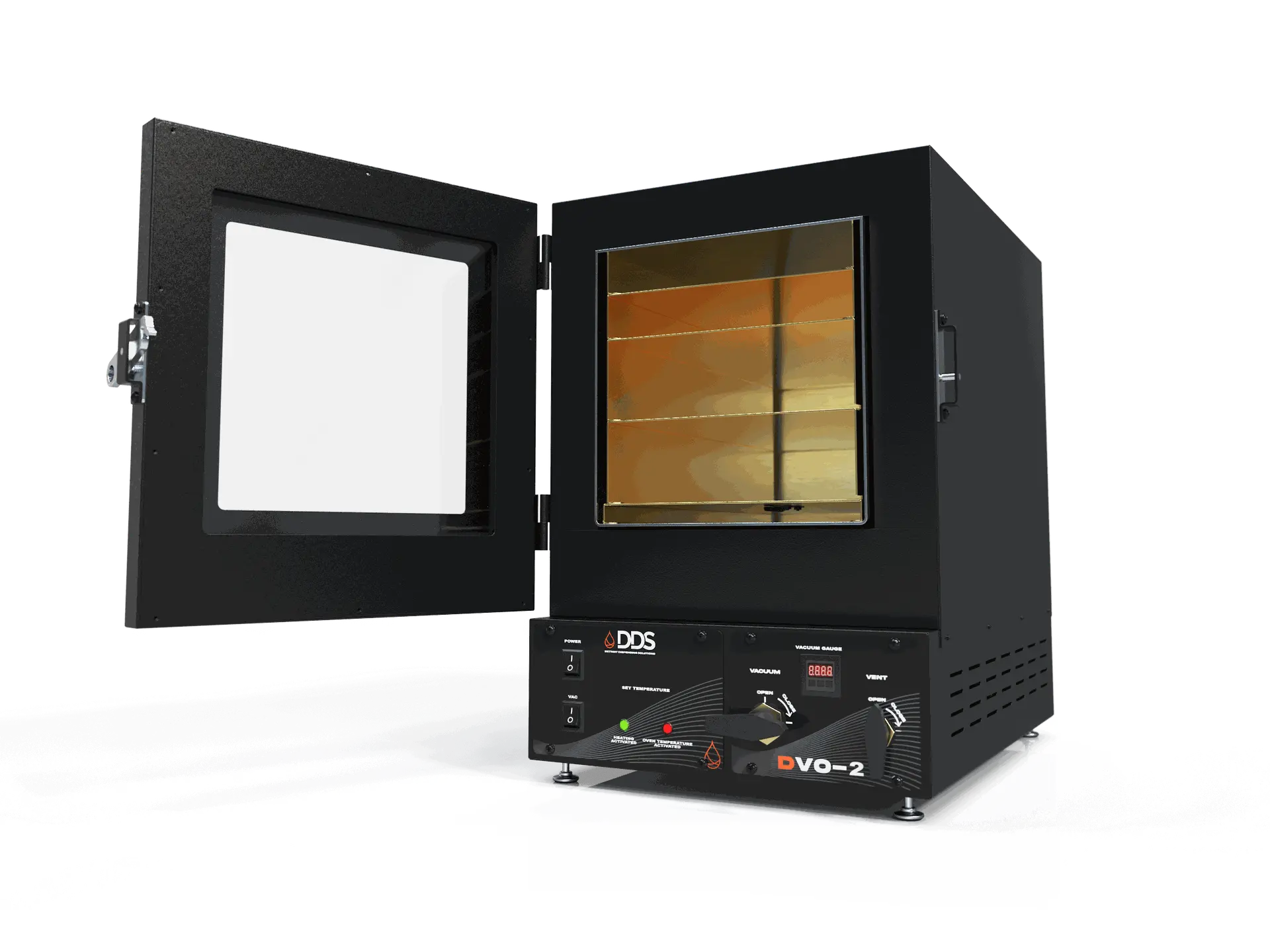

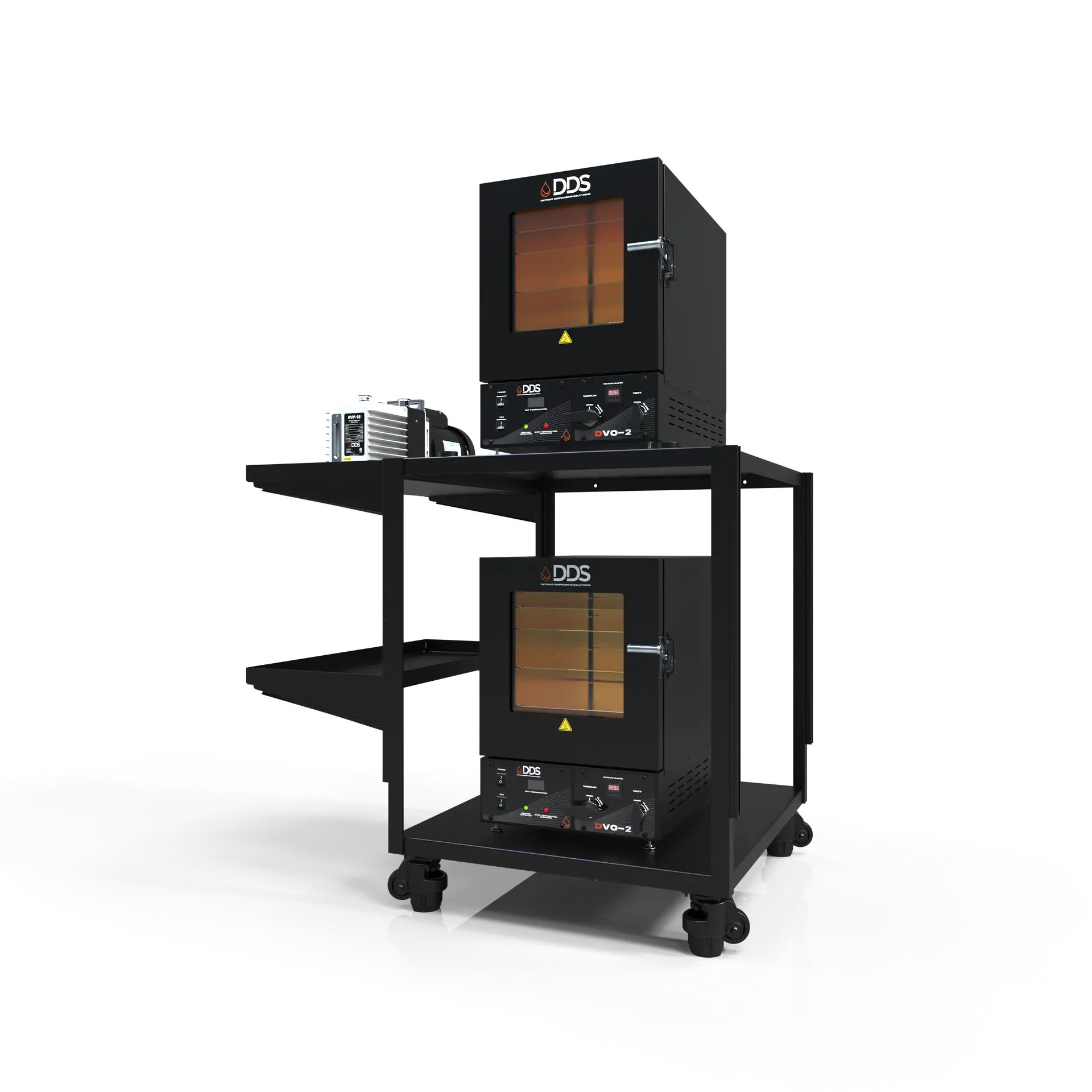

DVO-2 Vacuum Oven Overview

The Detroit Dispensing Solutions DVO-2 Vacuum Oven is engineered for precision vacuum drying in compact environments such as research labs, analytical testing facilities, and small-scale botanical extraction setups. Built with a stainless-steel interior, ANSI-rated tempered glass viewing window, and an internal temperature probe for true chamber readings, the DVO-2 ensures excellent uniformity and repeatability. Ideal for drying sensitive compounds, purging solvents, and stabilizing formulations in a benchtop footprint.

Stainless Interior
Lighted Viewing Window
Easy Quarter-Turn Vacuum Valves
Inert Gas Backfill Equipped
Temp Probe Inside Chamber for Accurate Temperatures
KF-25 Access Port on Rear of Vessel
Adjustable Leveling Feet
ANSI-Rated Tempered Glass

Technical Specs

Sizing

Capacity: 1.6 cuft / 47.2L
Interior Dimensions: 12"W X 20"D x 12"H
Exterior Dimensions: 18.8"W x 24.5"D x 24.5"H

Temperature Range & Dispersion

Temperature Range: Ambient +15C to 150C (+26F to 302F)
Uniformity @40C (105F): +/- 1.4C (+/- 2.5F)
Uniformity @90C (200F): +/- 4.2C (+/- 7.5F)
Uniformity @150C (300F): +/- 8.9C (+/- 16F)

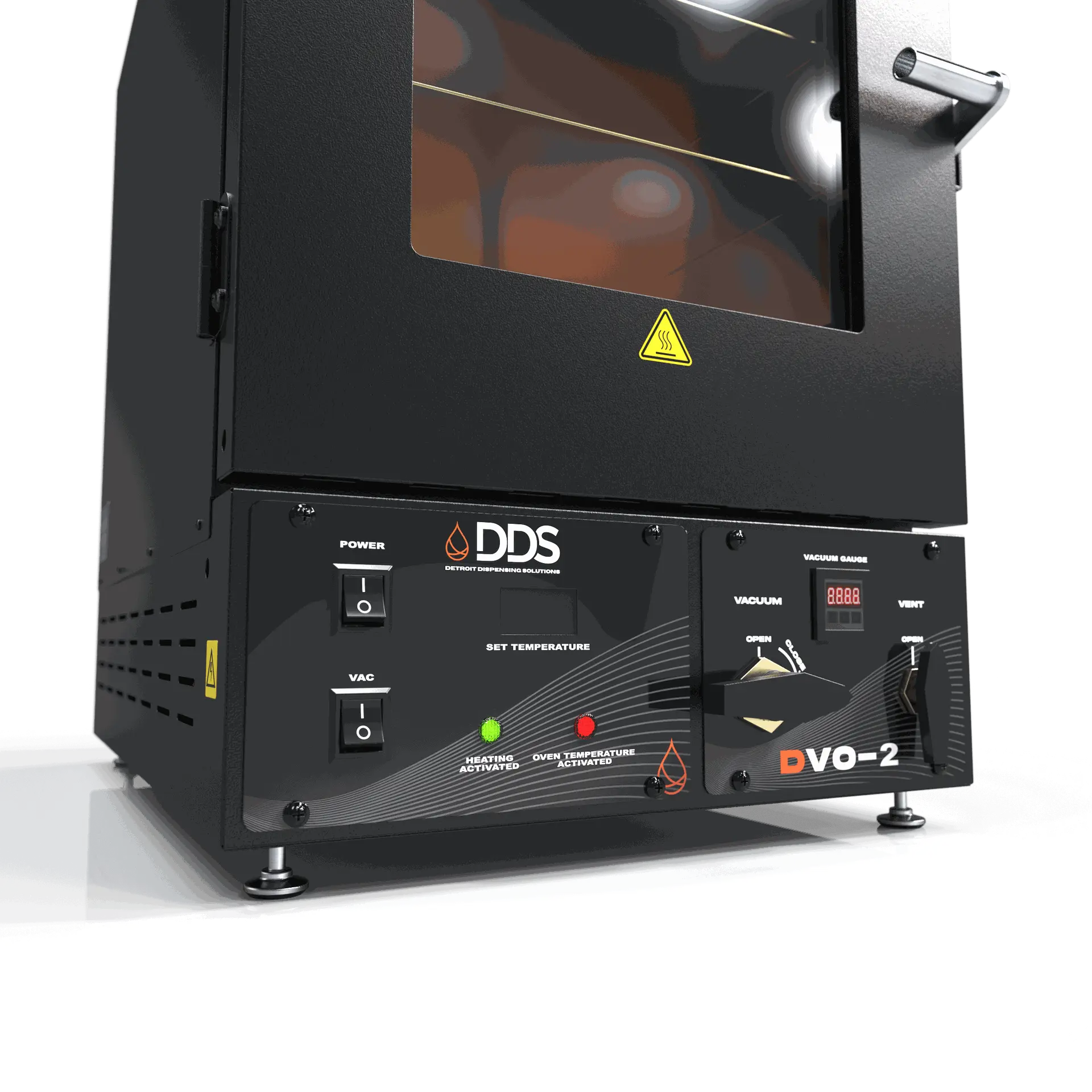

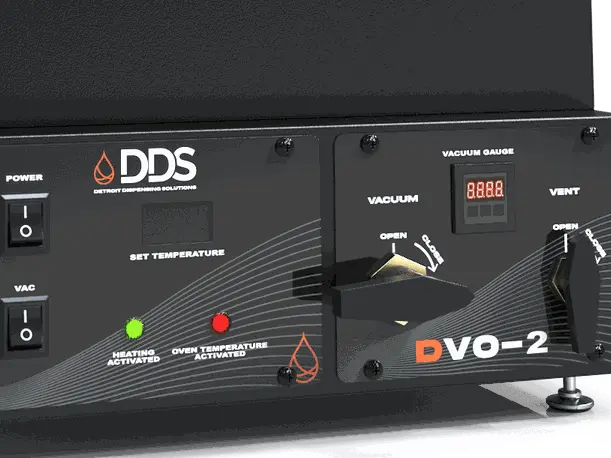

Touch Screen Control

Temperature: Selectable for C or F
Vacuum: Selectable for Torr, Inches Hg, Bar
USB Connection: USB-A Port for Easy In-Field Upgrades

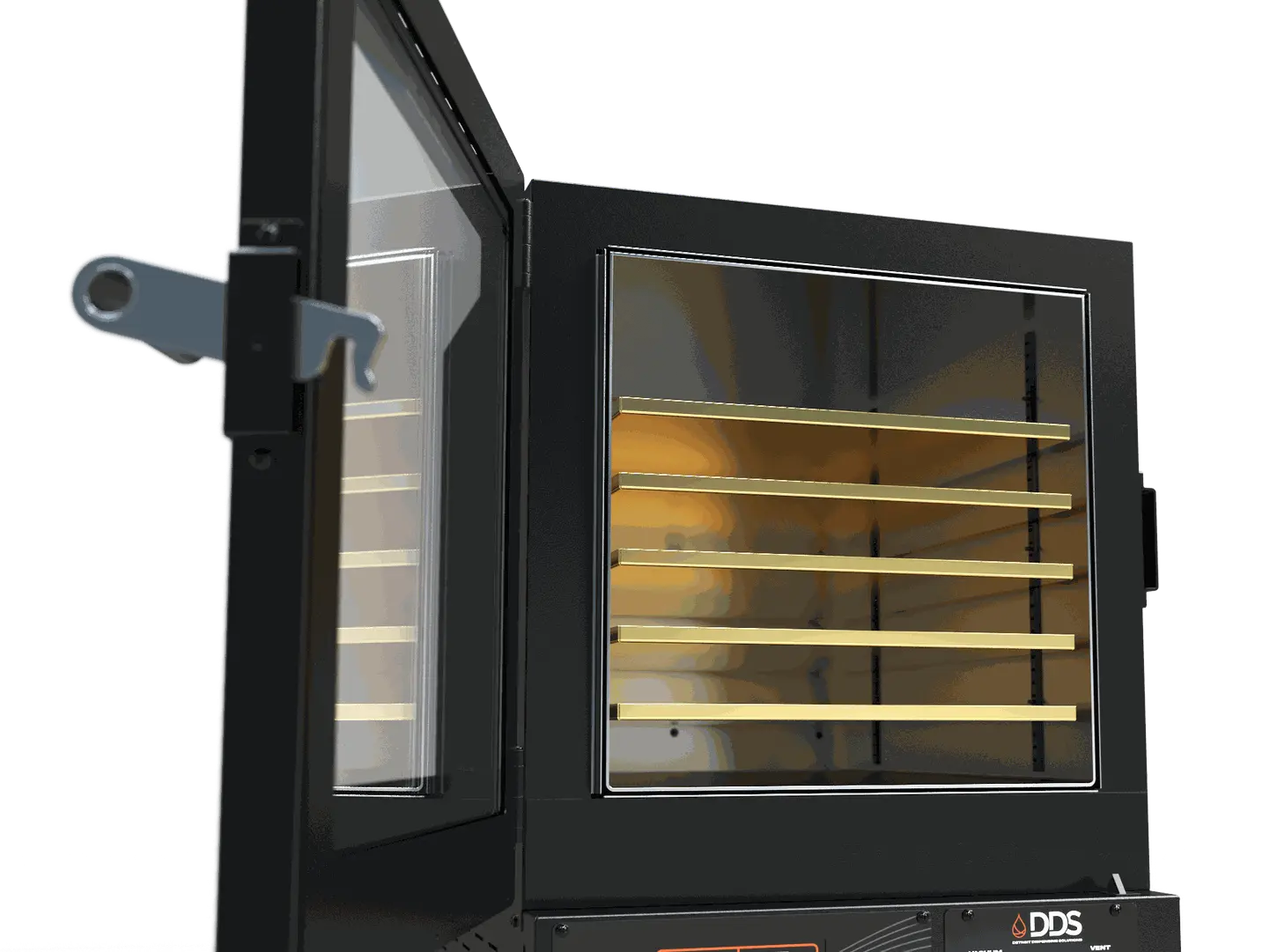

Shelving (Aluminum)

5 Removable & Adjustable Shelves (8 Max)
Surface Area: 18"W x 24"D
Weight Capacity: 225lbs Total (22.7Kg)
Optional Stainless Steel Shelving

Equipment Options

Stainless Steel Exterior & Shelving
High Temp (220C) with Programmable Control
Data Logging
Door Gasket Materials: Viton, BUNA-N, Floura-Silicone
120V (Standard) or 220V Configuration

Temperature Performance From Vacuum

Stability @40C (105F): +/- 0.2C (+/- 0.3C)
Stability @90C (200F): +/- 0.2C (+/- 0.3C)
Stability @150C (300F): +/- 0.2C (+/- 0.3C)
Heat Up from 25C (77F) to Stabilization:
- To 40.5C (105F) 60 minutes
- To 93.3C (200F) 126 minutes
- To 150C (302F) 180 minutes

Vacuum Connections

Vacuum Line: 3/8" (9.5mm) Barb
Vent & Inert Gas: 1/4" (6mm) Barb
Access Port: KF-25 for Feedthroughs or MAXEVAP Connection

Facilities

Power (50/60 Hz):
- 120V / 1PH / 14 AMPS
- 220V / 1PH / 7 AMPS
Plug/Outlet (Power Cord Included):
- 120V - NEMA 5-15R
- 220V - NEMA 6-15R
BTU @ Full Power:
- 120V - 1105 BTU/hr
- 220V - 1228 BTU/hr
Unit Shipping Weight:
- 163kg (360lbs)
- 204kg (449lbs)
