Automating cartridge filling transforms production economics through increased throughput, reduced labor costs, and improved consistency. This guide breaks down the practical steps for transitioning from manual to automated filling operations.
Table of Contents
- What Are the Different Types of Cartridge Filling Machines?
- How Do You Assess Your Current Production Needs?
- What Equipment Do You Need for Automated Filling?
- How Do You Prepare Your Workspace for Automation?
- What Are the Steps to Set Up an Automated Filling System?
- How Do You Maintain Consistent Fill Quality?
- What Post-Filling Steps Are Required?
- How Do You Optimize Your Automated Process?
- Frequently Asked Questions
What Are the Different Types of Cartridge Filling Machines?
Understanding the automation options helps processors choose equipment that matches their production volume and budget.
Manual Cartridge Filling
Manual filling machines require direct physical interaction by an operator for the entire filling process. Operators use syringes or filling guns to dispense cannabis oil into each cartridge individually. Manual fillers yield approximately 85% dosing precision and work best for small-scale operations or specialty batches.
Semi-Automatic Cartridge Filling
Semi-automatic fillers incorporate some automation but still require operator involvement. These systems automate the dispensing process while operators load cartridges and monitor the filling operation. They bridge the gap between manual methods and full automation.
Fully Automatic Cartridge Filling
Fully automatic systems minimize operator involvement, the primary role is loading cartridges into the machine. After loading, the machine runs predetermined filling programs that handle multiple cartridges simultaneously. These machines are capable of filling thousands of units per hour with consistent quality, making them ideal for large-scale manufacturing.
The CFM-1800 and CFS-1800 from Detroit Dispensing Solutions represent fully automatic systems, filling up to 1,800 cartridges per hour with ±1% accuracy using just one operator.
How Do You Assess Your Current Production Needs?
Before investing in automation equipment, evaluate your operation's specific requirements and growth trajectory.
Calculate Current Production Volume
Document how many cartridges your operation produces daily, weekly, and monthly. Identify peak production periods and capacity constraints. If you're currently producing 500-1,000 cartridges daily through manual methods, you've reached the inflection point where automation delivers immediate ROI.
Analyze Labor Costs
Calculate total labor costs for cartridge filling, including wages, benefits, training, and supervision. Automated filling machines dispense the exact amount of product needed for each cartridge, minimizing overfills and spillage while reducing labor requirements from teams of workers to single operators.
Identify Quality Control Issues
Assess consistency problems in your current process. One of the standout benefits of automation is the consistency it brings to product quality, automated machines fill every cartridge to the exact same level, ensuring uniformity across all products.
Project Growth Requirements
Estimate production needs over the next 12-24 months. Automation equipment represents significant capital investment, so selecting systems that accommodate growth prevents premature equipment replacement.
What Equipment Do You Need for Automated Filling?
Assembling the right equipment stack ensures smooth production workflows.
Core Filling Equipment

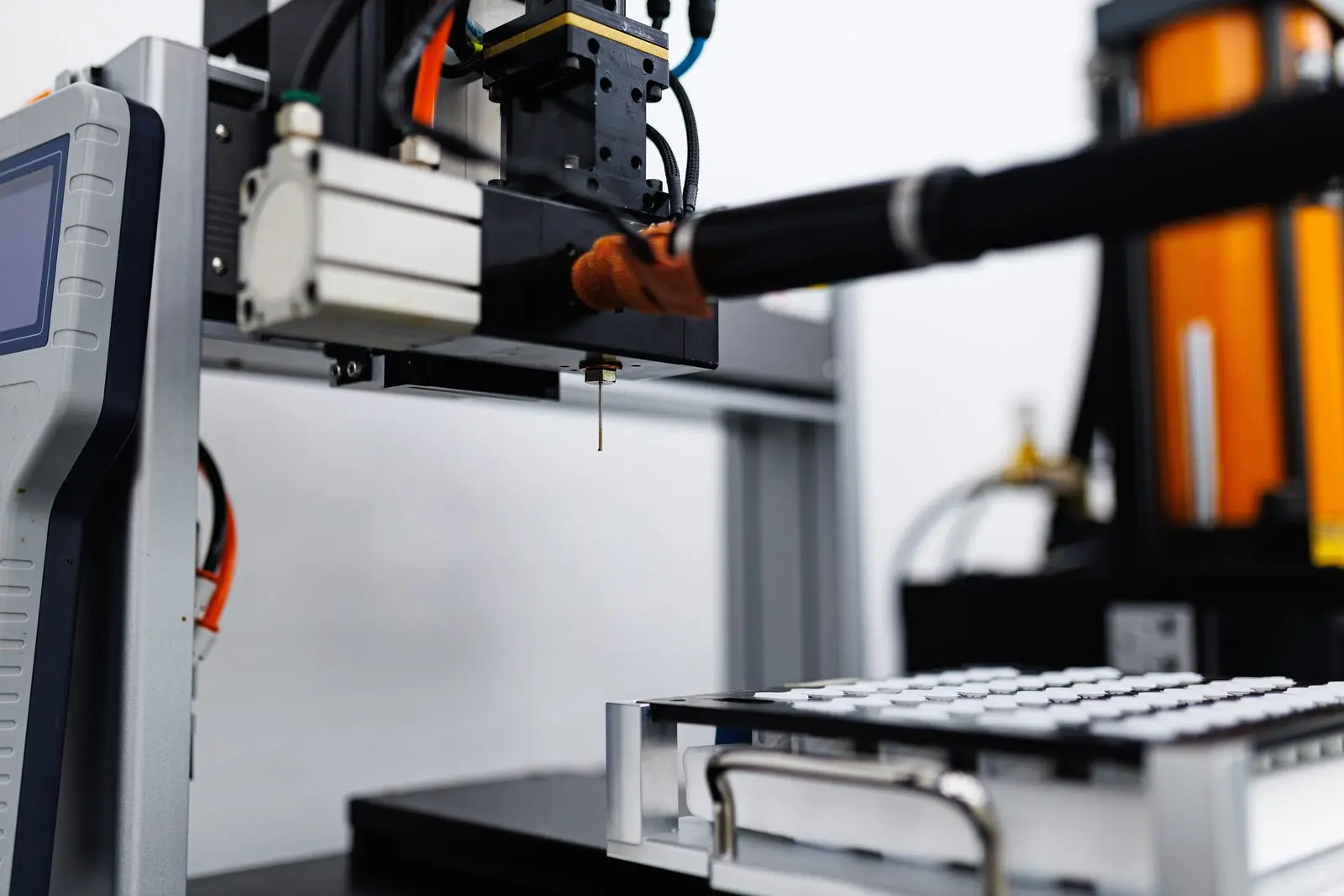

The primary component is the automated filling machine itself. Modern cartridge filling machines range from simple devices to sophisticated systems capable of filling thousands of units per hour. The CFM-1800 includes an integrated 30,000-lb capping press, while the CFS-1800 focuses on filling in a more compact footprint.
Temperature Control Systems
Many oils and distillates require heating to achieve optimal flow characteristics. Advanced filling machines incorporate temperature control systems to maintain ideal viscosity throughout the filling process. The CFM-1800 and CFS-1800 operate at industry-leading low temperatures as low as 50°C, preserving terpenes while maintaining throughput.
Capping Equipment
After filling, cartridges require proper capping to establish vacuum locks that prevent leaking. Some automated systems like the CFM-1800 integrate capping functionality, while others require separate capping machines.
Quality Control Tools
Implement weight verification systems to confirm fill accuracy. Visual inspection capabilities help identify defects before cartridges reach customers.
How Do You Prepare Your Workspace for Automation?
Proper facility preparation ensures efficient equipment installation and operation.
Clean and Sanitize the Work Area
Inspect and clean the workspace using isopropyl alcohol. Automated filling requires clean environments to maintain product integrity and prevent contamination. Well-ventilated areas are essential, and appropriate protective gear like nitrile gloves and safety glasses should be available.
Ensure Adequate Power and Utilities
Verify that electrical capacity supports automated equipment requirements. Confirm proper grounding and circuit protection. Some systems require compressed air or other utilities.
Organize Workflow Layout
Plan equipment placement to optimize material flow from preparation through filling to packaging. Minimize movement and handling between stations. Easy disassembly and cleaning are crucial for maintaining sanitary conditions and preventing cross-contamination between production runs.
Train Your Team
Operators need training on automated equipment operation, maintenance, and troubleshooting. The CFM-1800 and CFS-1800 come with professional installation, training, and ongoing technical support to ensure teams can operate systems effectively from day one.
What Are the Steps to Set Up an Automated Filling System?
Following structured setup procedures ensures successful automation implementation.
Step 1: Install and Calibrate Equipment
Work with equipment manufacturers for professional installation. Calibrate filling systems to achieve specified accuracy levels. The CFM-1800 and CFS-1800 deliver ±1% dosing accuracy through true-rod positive displacement valve technology.
Step 2: Prepare Cannabis Oil
Preheat cannabis oil to the recommended temperature for optimal viscosity. Different concentrate types require different temperatures—distillate typically flows at higher temperatures than live resin, which should remain at or below 50°C to preserve terpenes.
Step 3: Load Cartridges

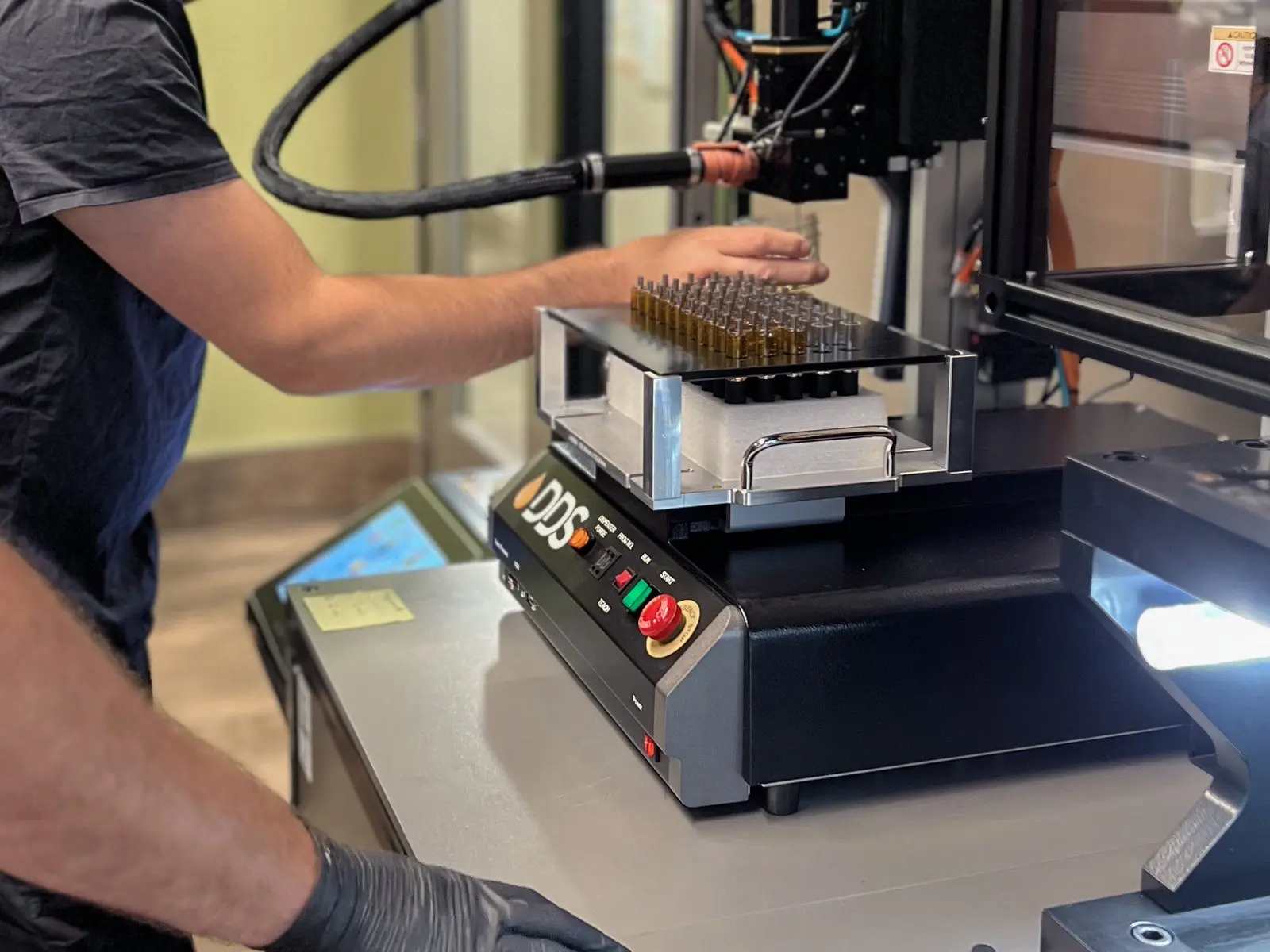

Inspect each cartridge for defects before loading. Many modern systems accept cartridges in pre-racked foam trays, simply unbox the cartridges, place the foam tray into the machine, and start filling. This eliminates manual transfer and speeds workflow.
Step 4: Configure Filling Parameters
Set fill volume, dispensing speed, and temperature parameters. Automated systems store profiles for different cartridge types and oil formulations, allowing quick changeovers between products.
Step 5: Run Test Batches
Process small test batches to verify fill accuracy and identify any issues before full production runs. Weigh filled cartridges to confirm they meet target specifications.
Step 6: Begin Production

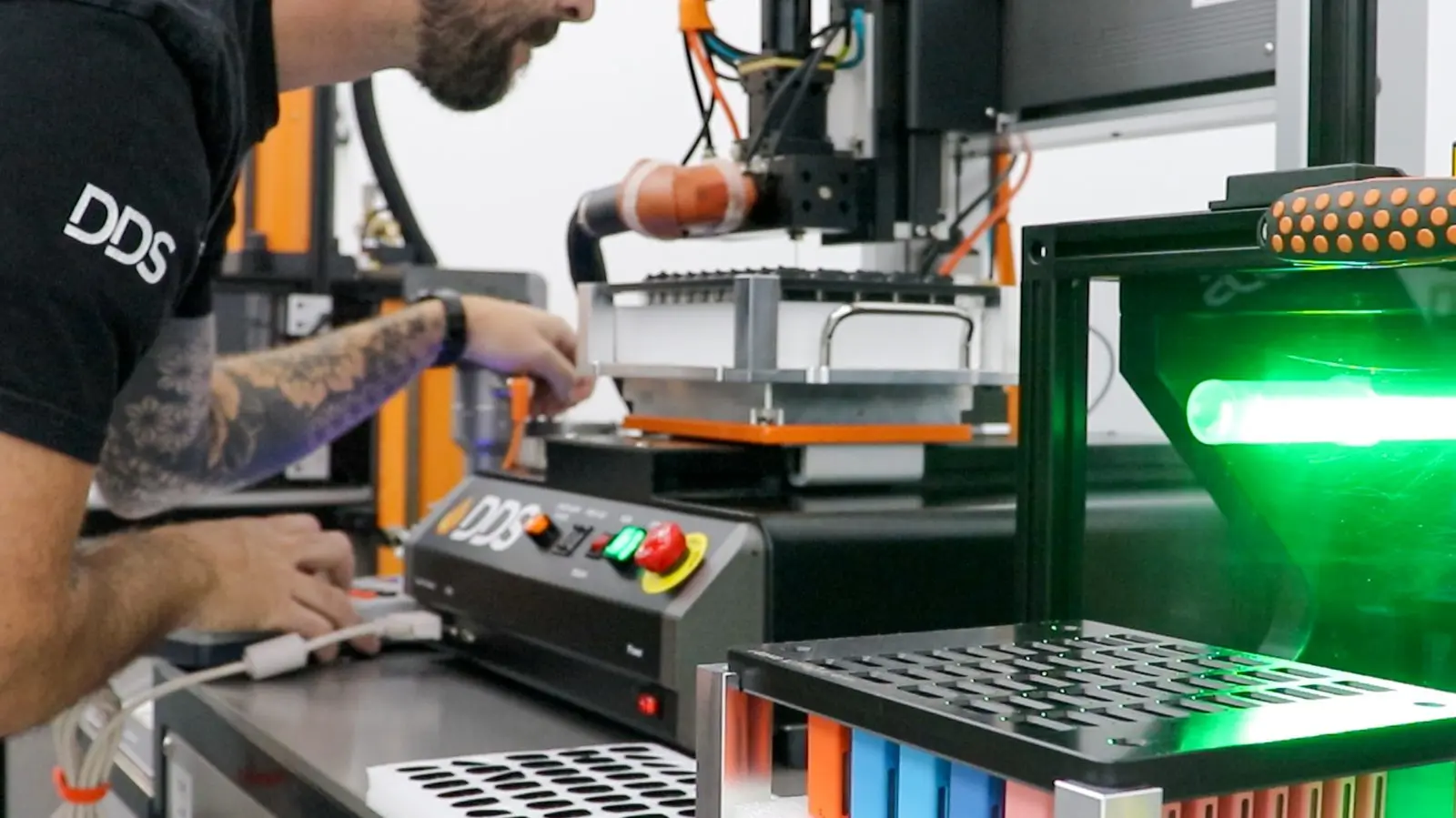

Once testing confirms proper operation, begin full-scale production. Monitor initial runs closely and make adjustments as needed.
How Do You Maintain Consistent Fill Quality?
Quality control measures ensure every cartridge meets specifications.
Monitor Fill Accuracy
Regularly weigh filled cartridges to verify accuracy. Automated machines fill every cartridge to the exact same level, but periodic verification catches any drift from calibration.
Control Temperature Precisely
Maintain consistent oil temperature throughout production. Temperature variations affect viscosity and can lead to fill inconsistencies. Systems with multiple heating zones like the CFM-1800 and CFS-1800 maintain even temperatures throughout the entire oil path.
Avoid Common Filling Mistakes
Overfilling causes clogging, leaks, and pressure buildup. Always adhere to manufacturer-recommended fill lines and leave appropriate headspace. Avoid contaminating the center post, which blocks airflow and ruins cartridges.
Implement Preventive Maintenance
Follow equipment manufacturer maintenance schedules. Regular cleaning prevents buildup that affects accuracy. Look for systems designed with clean-in-place capabilities that reduce downtime—some machines complete full cleanup in under 10 minutes using minimal alcohol.
What Post-Filling Steps Are Required?
Proper post-filling procedures ensure optimal cartridge performance.
Allow Proper Saturation Time
After filling, let cartridges stand upright for at least 30 minutes so oil can saturate the wick. This prevents dry hits and ensures optimal performance.
Cap Immediately
Secure capping within 5 seconds of filling prevents oil from soaking into atomizers and establishes proper vacuum locks. The CFM-1800's integrated 30,000-lb capping press handles this automatically.
Implement Quality Checks
Visually inspect filled and capped cartridges for leaks, proper fill levels, and secure caps. Weight verification catches underfilled or overfilled units.
Package Properly
Store filled cartridges in appropriate packaging that protects product integrity and meets regulatory requirements for child resistance and tamper evidence.
How Do You Optimize Your Automated Process?
Continuous improvement maximizes automation benefits.
Track Production Metrics
Monitor throughput, waste percentages, fill accuracy, and downtime. Data reveals optimization opportunities and tracks ROI from automation investment.
Refine Temperature Settings
Experiment within safe ranges to find optimal temperatures for each oil type. Lower temperatures preserve terpenes but may slow filling. Higher temperatures speed production but risk degradation.
Streamline Changeovers
Minimize downtime when switching between products or cartridge types. Advanced systems store multiple product profiles for quick transitions, some can change hardware types and oil formulations in seconds.
Scale Production Strategically

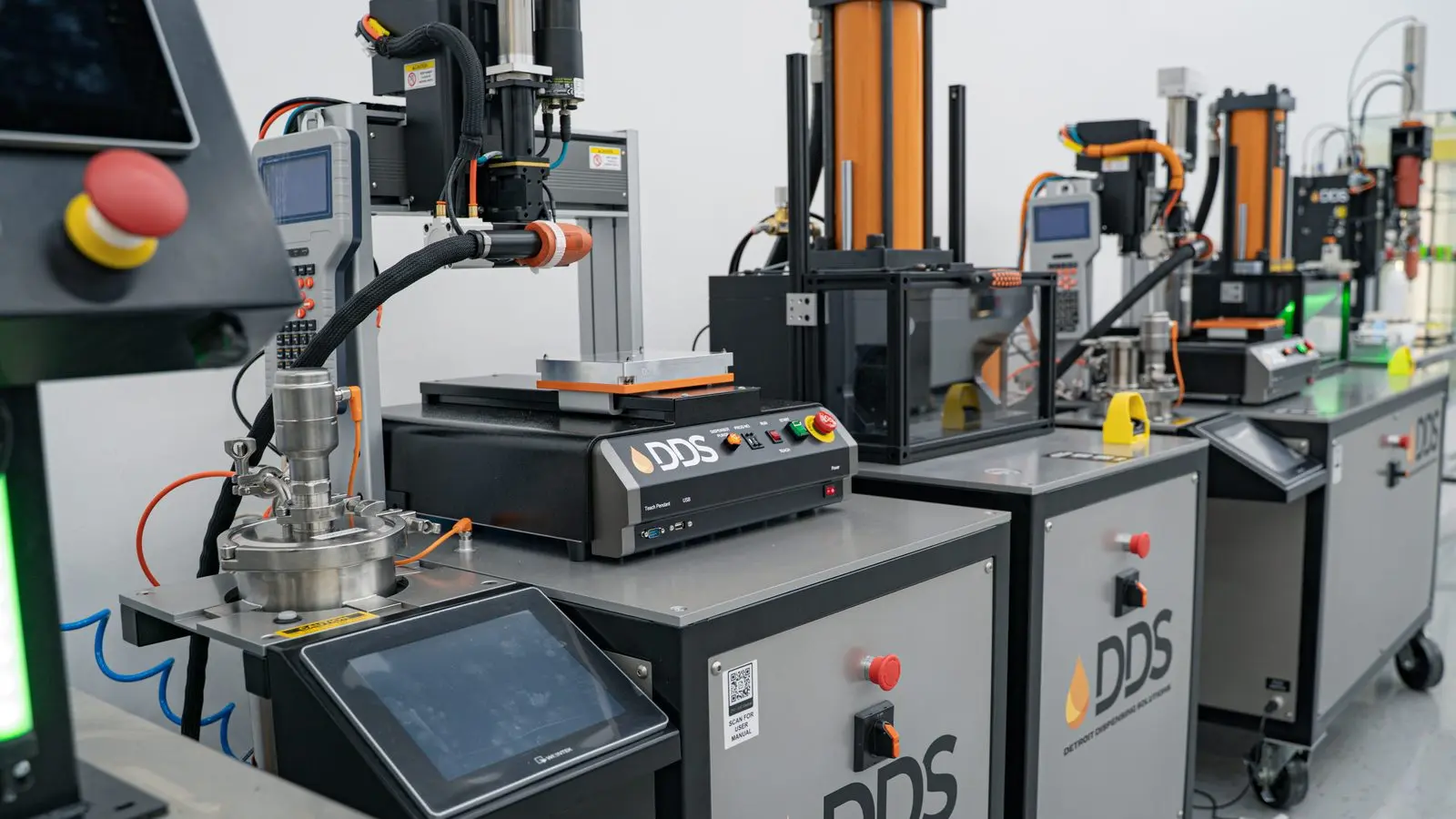

As demand grows, automated systems scale efficiently. The CFS-1800 and CFM-1800 can run across multiple shifts, and adding a second system doubles capacity with just one additional operator rather than proportionally increasing workforce.
Frequently Asked Questions
Q: What production volume justifies automated cartridge filling?
A: Operations producing 500-1,000+ cartridges daily typically reach the point where automated filling delivers clear ROI through labor savings, reduced waste, and improved consistency. The exact threshold depends on labor costs and product pricing.
Q: How accurate are automated cartridge filling machines?
A: Automated systems achieve significantly higher accuracy than manual methods. The CFM-1800 and CFS-1800 deliver ±1% dosing accuracy, compared to approximately 85% precision for manual filling. This precision ensures regulatory compliance and consistent consumer experiences.
Q: What's the difference between the CFM-1800 and CFS-1800?
A: The CFM-1800 includes an integrated 30,000-lb capping press for automated filling and capping. The CFS-1800 focuses on filling only in a more compact footprint. Both systems fill 1,800 cartridges per hour with ±1% accuracy and operate at industry-leading low temperatures.
Q: How many operators does automated cartridge filling require?
A: Fully automatic systems like the CFM-1800 and CFS-1800 require just one operator to achieve full production capacity of 1,800 cartridges per hour, compared to manual methods requiring teams of 6-8 workers for equivalent output.
Q: Can automated systems handle different types of cannabis oil?
A: Yes. Modern automated filling machines handle various viscosities from thick distillate to flowing live resin. Temperature control systems maintain optimal flow characteristics for each product type. The CFM-1800 and CFS-1800 dispense both distillate and live resin at temperatures as low as 50°C.
Q: How long does it take to set up automated cartridge filling?
A: Initial installation and training typically takes 1-2 days with professional support. Once installed, changeovers between products or cartridge types can happen in minutes with systems that store multiple filling profiles.
Q: What maintenance do automated filling machines require?
A: Regular cleaning after production runs, periodic calibration verification, and component inspection according to manufacturer schedules. Advanced systems offer clean-in-place features that complete full cleanup in under 10 minutes, minimizing downtime.
Q: How do automated systems preserve terpenes in live resin?
A: Low-temperature filling preserves volatile terpene compounds. The CFM-1800 and CFS-1800 operate at industry-leading low temperatures (as low as 50°C) with precision thermal management across five heating zones, protecting terpene profiles while maintaining production throughput.
Q: What's the ROI timeline for automated cartridge filling equipment?
A: Most operations achieve payback within 6-18 months through labor cost reduction, waste minimization, and increased throughput. The exact timeline depends on production volume, labor costs, and current waste levels.
Q: Can you integrate automated filling with existing production workflows?
A: Yes. Modern automated filling systems are designed to integrate into existing production lines. Professional installation and training ensure smooth transitions without disrupting ongoing operations.
Q: What should I look for when choosing automated cartridge filling equipment?
A: Key factors include fill accuracy (±1% is ideal), temperature control capabilities (especially for live resin), throughput capacity, ease of cleaning and changeover, operator requirements, and manufacturer support. USA-manufactured equipment like the CFM-1800 and CFS-1800 offers faster support response compared to imported alternatives.
Q: Do automated systems reduce product waste?
A: Yes significantly. Automated filling machines dispense the exact amount of product needed for each cartridge, minimizing overfills and spillage. This precision cuts waste from typical 2-3% with manual methods to under 1% with automated systems, protecting margins on expensive concentrates.
