CFB-1000 vs CFS-1800 vs CFM-1800: Which Vape Filler Do You Need?

October 30, 2026 by
Detroit Dispensing Solutions

Choosing a vape filling machine comes down to a few technical questions: how many devices you fill a day, which oils you run and at what temperature, how accurate each dose needs to be, and whether capping happens on the same machine.

DDS builds three vape cartridge filling machines in Troy, Michigan, each suited to a different stage of production: the CFB-1000 benchtop filler for smaller runs, the CFS-1800 for high-volume filling, and the CFM-1800 for filling and capping in one machine. This guide covers what to look for in any filler, how to size one for your daily volume, and how to choose between the three.

What to look for in a vape filler, and where DDS stands apart

Speed is easy to compare on a spec sheet. These five things decide whether a filler holds up in daily production, and they're where DDS fillers are built differently.

1. Fill temperature

The hotter the oil runs, the more terpenes it loses and the thinner it gets in the cartridge before capping, which can lead to clogs and leaks. Ask what temperature a filler actually needs to run your oil, not just what it can run.

DDS fillers dispense distillate at 50°C (122°F) and live resin and rosin at 35°C (95°F). Some fillers run oil at higher temperatures. Filling cooler preserves the terpenes that carry flavor, especially in live resin and rosin, and keeps oil from soaking into the atomizer before the cartridge is capped.

2. Dosing accuracy across a full run

A filler that's accurate in a demo but drifts as the reservoir empties or the oil warms will cost you in overfill and in carts that miss their label weight. Ask how accuracy holds across a full run and across the oils you use.

Every DDS filler meters oil through a proprietary positive-displacement valve with a 316L stainless steel metering rod and servo-driven control. Each dose is set by the valve's mechanical stroke rather than by pressure or timing, so fill weights hold at a rated ±1% across a full run, even as oil temperature and reservoir level change.

3. Hardware alignment and changeover

If you run more than one hardware type, changeovers eat into production time, and every alignment system is a potential point of failure. Ask how cartridges are positioned and what it takes to switch hardware.

On the CFS-1800 and CFM-1800, cartridges sit in precision jigs built for each hardware type, and the jigs load straight from the original foam trays. There's no camera to calibrate and no software to adjust between hardware formats, which means faster changeovers and fewer things that can go wrong mid-run.

4. Capping

A cartridge isn't finished until it's capped, and a filler that outpaces your capping just moves the bottleneck. Ask how the filled cartridges get capped, and how fast.

The CFM-1800 has a built-in hydra-pneumatic press that turns 100 PSI shop air into more than 30,000 lb of capping force. The operator moves the same jig from the filling station to the press with no reloading or realigning, so cartridges come off the machine filled and capped at up to 1,800 an hour.

5. Support, parts and financing

Downtime waiting on a part or a technician costs more than most price differences between machines. Ask where the machine is built, where parts ship from and what's included at installation.

Every DDS filler is designed and built in Troy, Michigan, and carries a one-year warranty with ongoing technical support. The CFS-1800 and CFM-1800 include installation and operator training. Consumable kits are stocked and ship from the DDS online shop, and DDS offers in-house financing, so you can buy outright or spread the cost.

CFB-1000 vs CFS-1800 vs CFM-1800: specs compared

With the core engineering shared, the differences come down to output, capping and size.

SpecCFB-1000CFS-1800CFM-1800
TypeSemi-automatic benchtopAutomated, fill onlyAutomated, fill and cap
Output per hourAbout 1,000 devices*Up to 1,800Up to 1,800, filled and capped
Per 8-hour shiftAbout 8,000*About 14,400About 14,400
CappingSeparateSeparateBuilt-in press, 30,000+ lb
Compatible devices510 vape cartridges, all-in-ones, disposables and syringes
Shot size0.1 to 1.56 mLStandard valve: up to 1.6 mL
Upgraded valve: up to 3.5 mL
Standard valve: up to 1.6 mL
Upgraded valve: up to 3.5 mL
Pre-roll infusionYes*Up to 1,500 an hourUp to 1,500 an hour
Size (W × D × H)25.9 × 26.1 × 28.1 in35 × 31 × 64 in59 × 31 × 64 in
Weight150 lb (120 V)About 250 lbAbout 1,200 lb

*Varies by operator experience.

How to size a vape filler for your daily volume

Start with how many devices you need to fill a day, then divide by each machine's hourly output. The table below shows the filling time at rated speed for common daily volumes.

Devices a dayCFB-1000 (about 1,000 an hour*)CFS-1800 or CFM-1800 (1,800 an hour)
2,000About 2 hoursAbout 1 hour 10 minutes
5,000About 5 hoursAbout 2 hours 50 minutes
10,000About 10 hoursAbout 5 hours 30 minutes
14,400About 14 hours, or one shift on two CFB-1000sOne 8-hour shift

*Varies by operator experience. Filling time only; on the CFB-1000 and CFS-1800, plan time for capping separately.

If you're near the top of a machine's range today and expect to grow, size for where you'll be in a year or two. Two automated fillers can also run side by side, which is one way to handle dual-chamber vapes.

Which filler is right for you?

CFB-1000 semi-automatic benchtop vape cartridge filler

CFB-1000: for smaller runs and mixed hardware

The CFB-1000 is a semi-automatic vape cartridge filling machine for the benchtop. The operator places each piece of hardware and starts every fill with a foot pedal, so their pace sets the output, about 1,000 devices an hour. The servo-controlled valve meters every dose to the same rated ±1% as the automated machines.

Its shot size runs from 0.1 mL to 1.56 mL, three independently heated zones hold the oil at its fill temperature, and it can infuse pre-rolls too. The CFB-1000 is CE and UKCA certified, so it can be sold into the European and UK markets.

Choose it if you run smaller batches, switch hardware often, are moving up from hand filling or want a filler on a bench rather than a floor-standing system. See the CFB-1000.

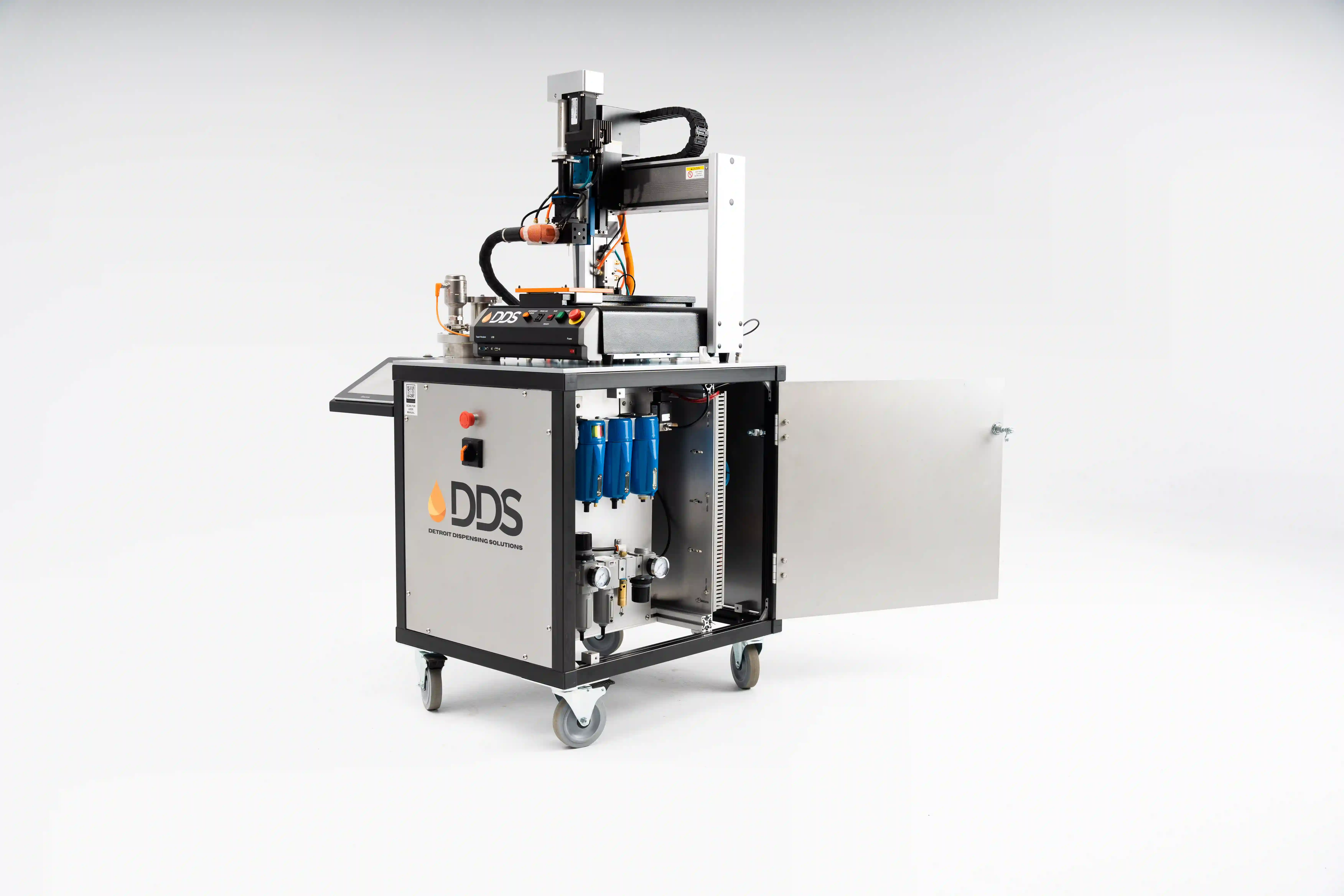

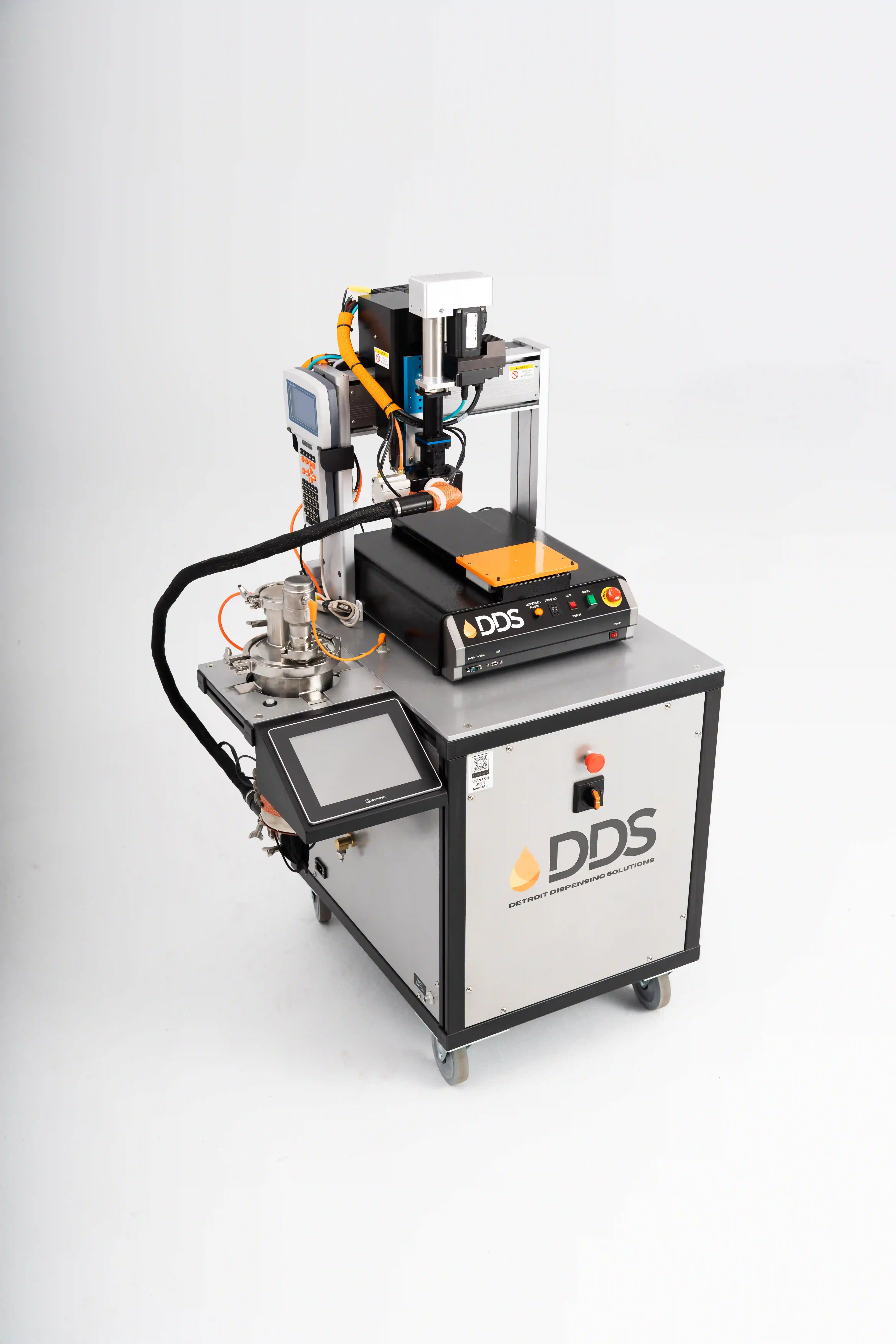

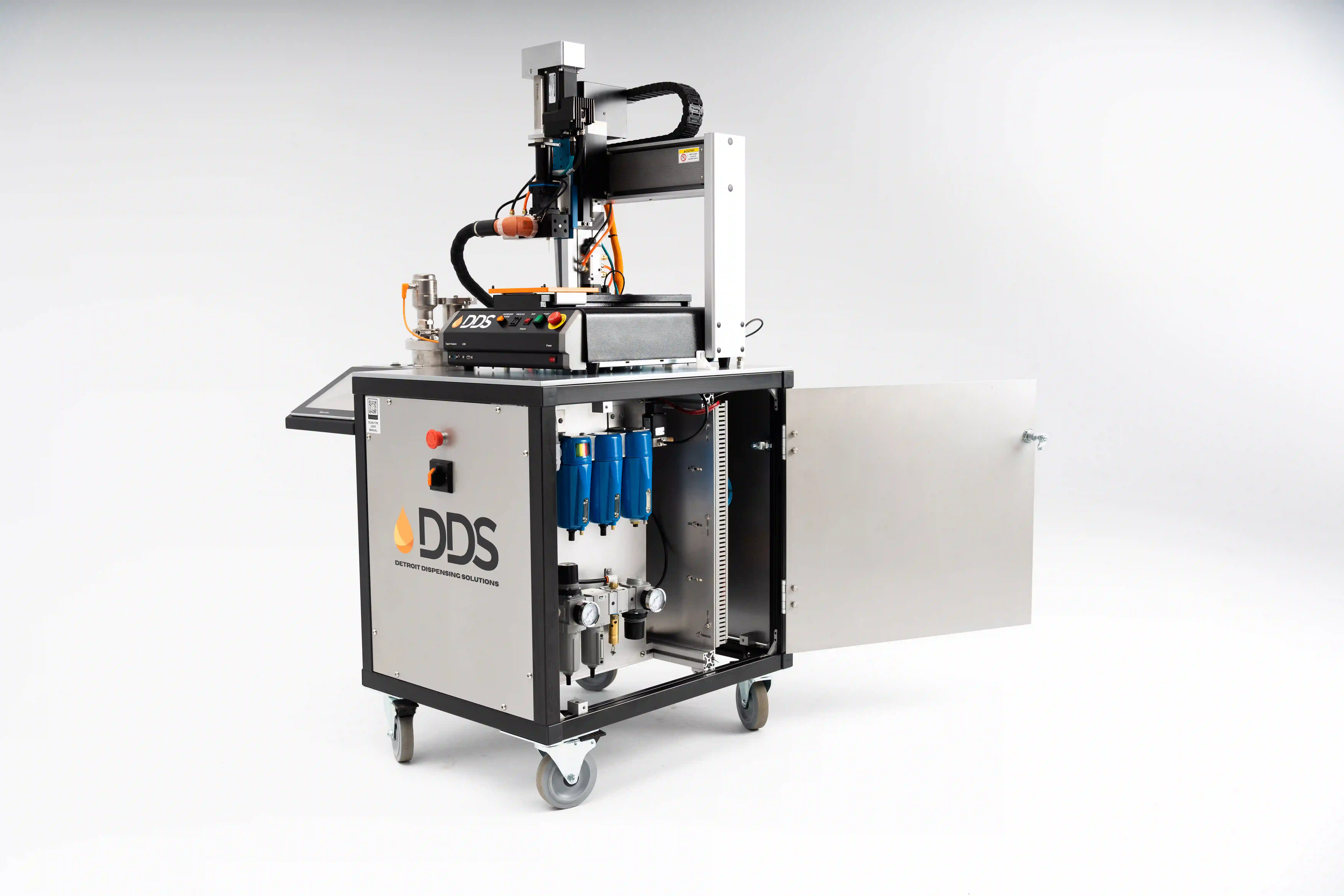

CFS-1800 automatic vape cartridge filling machine on its mobile cabinet

CFS-1800: for volume when you already cap separately

The CFS-1800 is an automatic vape cartridge filling machine that fills up to 1,800 cartridges an hour with one operator, about 14,400 in an 8-hour shift. It leaves out the capping press, so it's smaller and lighter than the CFM-1800: 35 in wide and about 250 lb. Like the CFM-1800, it takes a 3 L or 6 L 316L stainless steel reservoir and a standard valve of up to 1.6 mL a shot or an upgraded valve of up to 3.5 mL.

Choose it if you already cap on a separate press, or want a second filler alongside a CFM-1800 for dual-chamber vapes. See the CFS-1800.

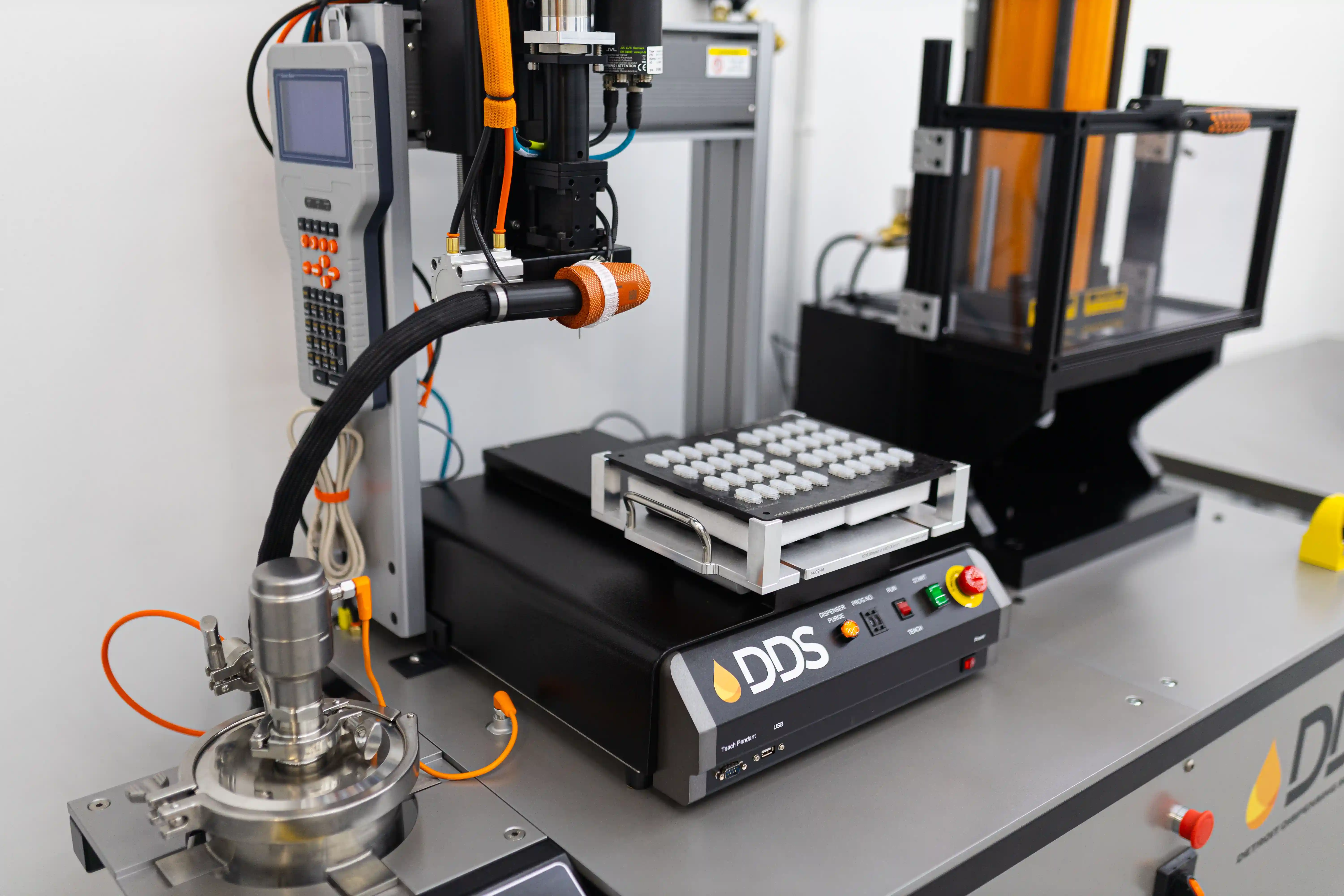

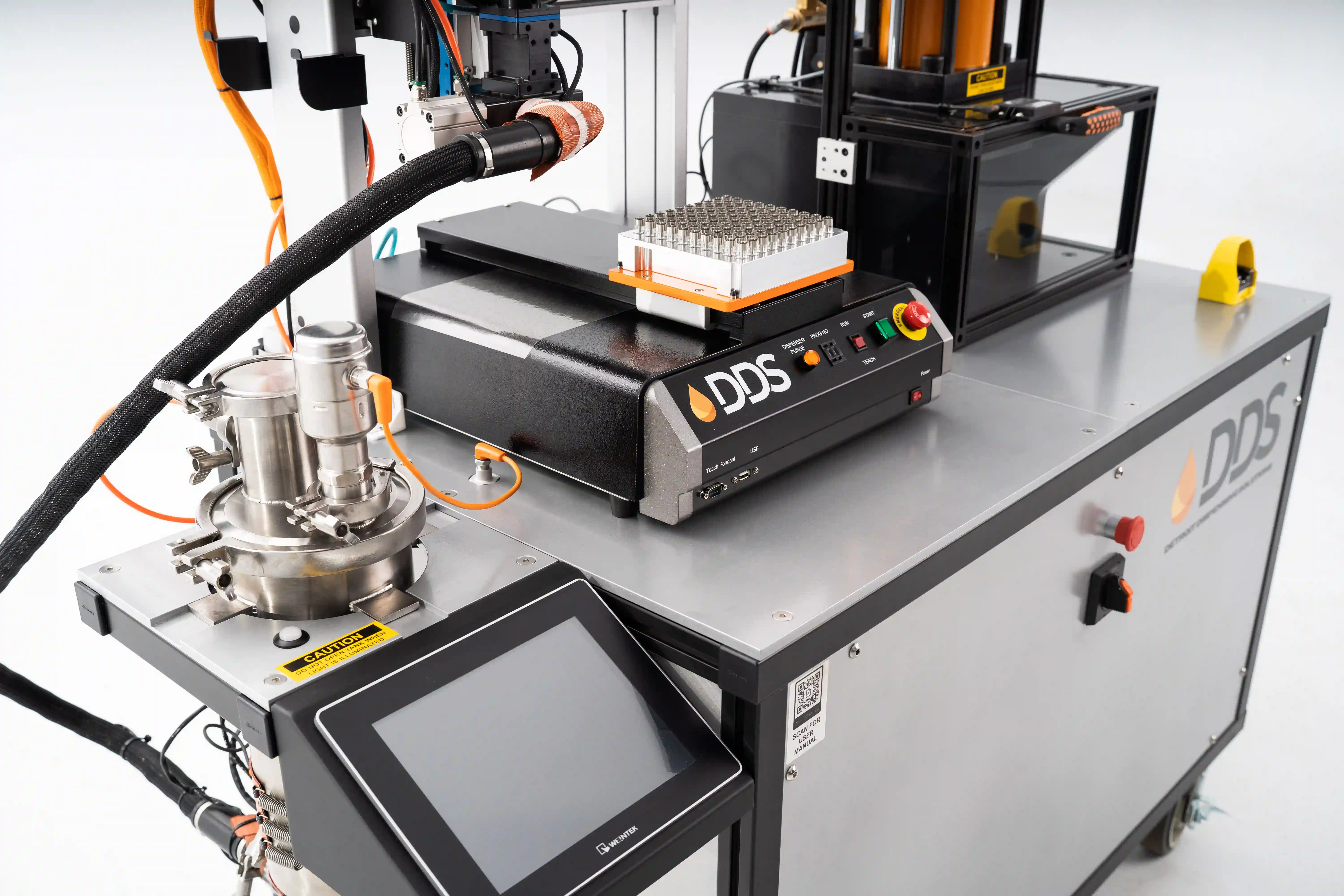

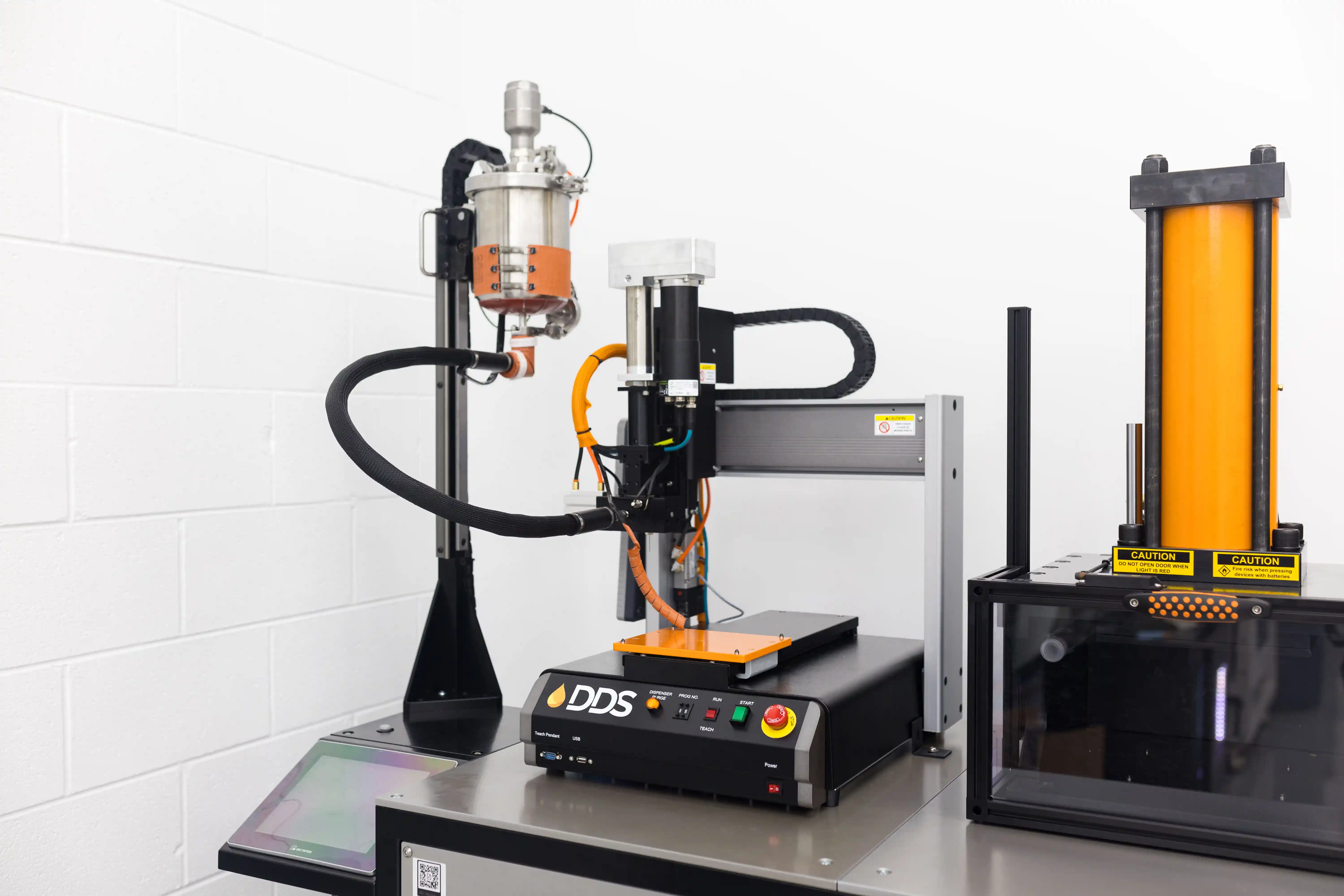

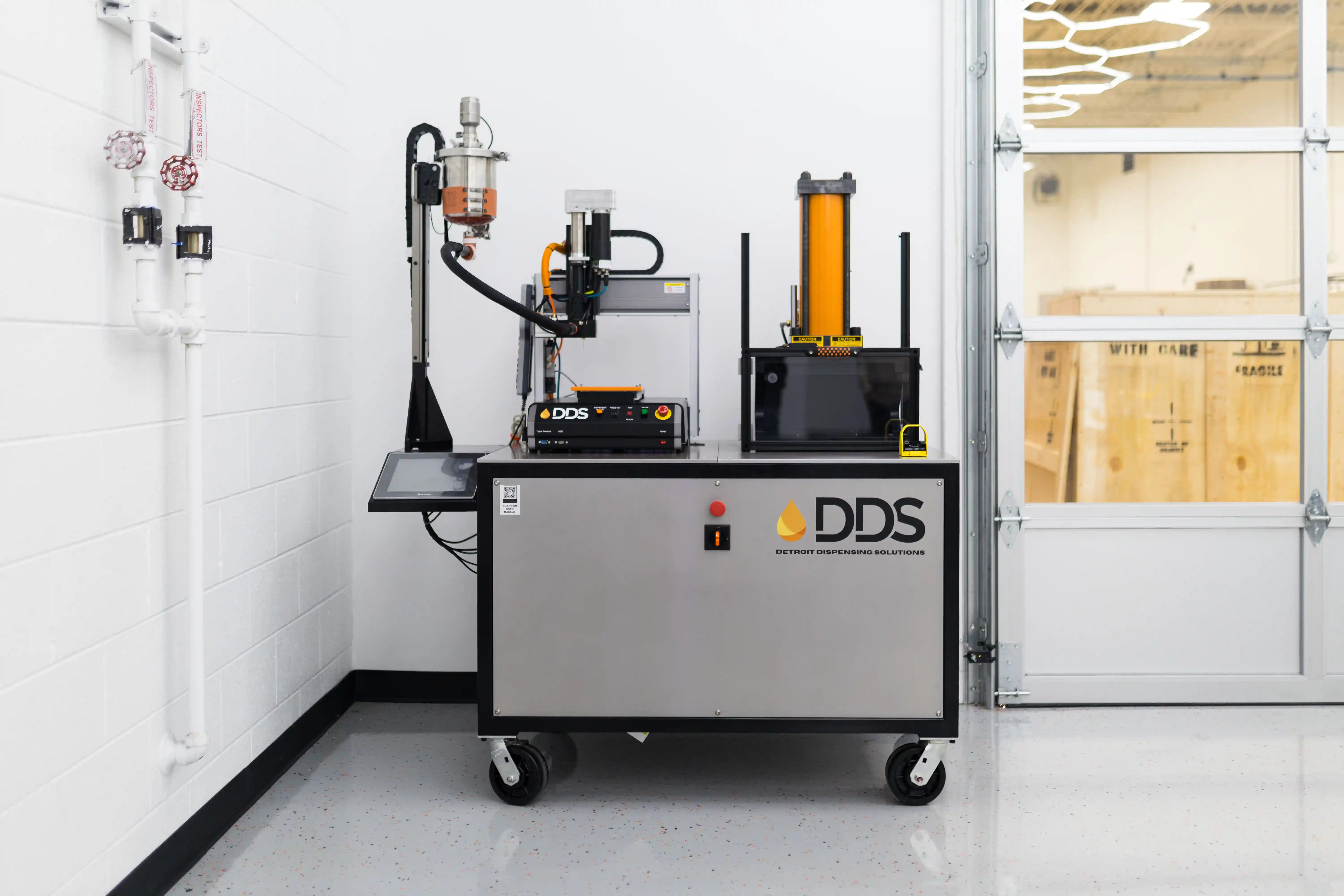

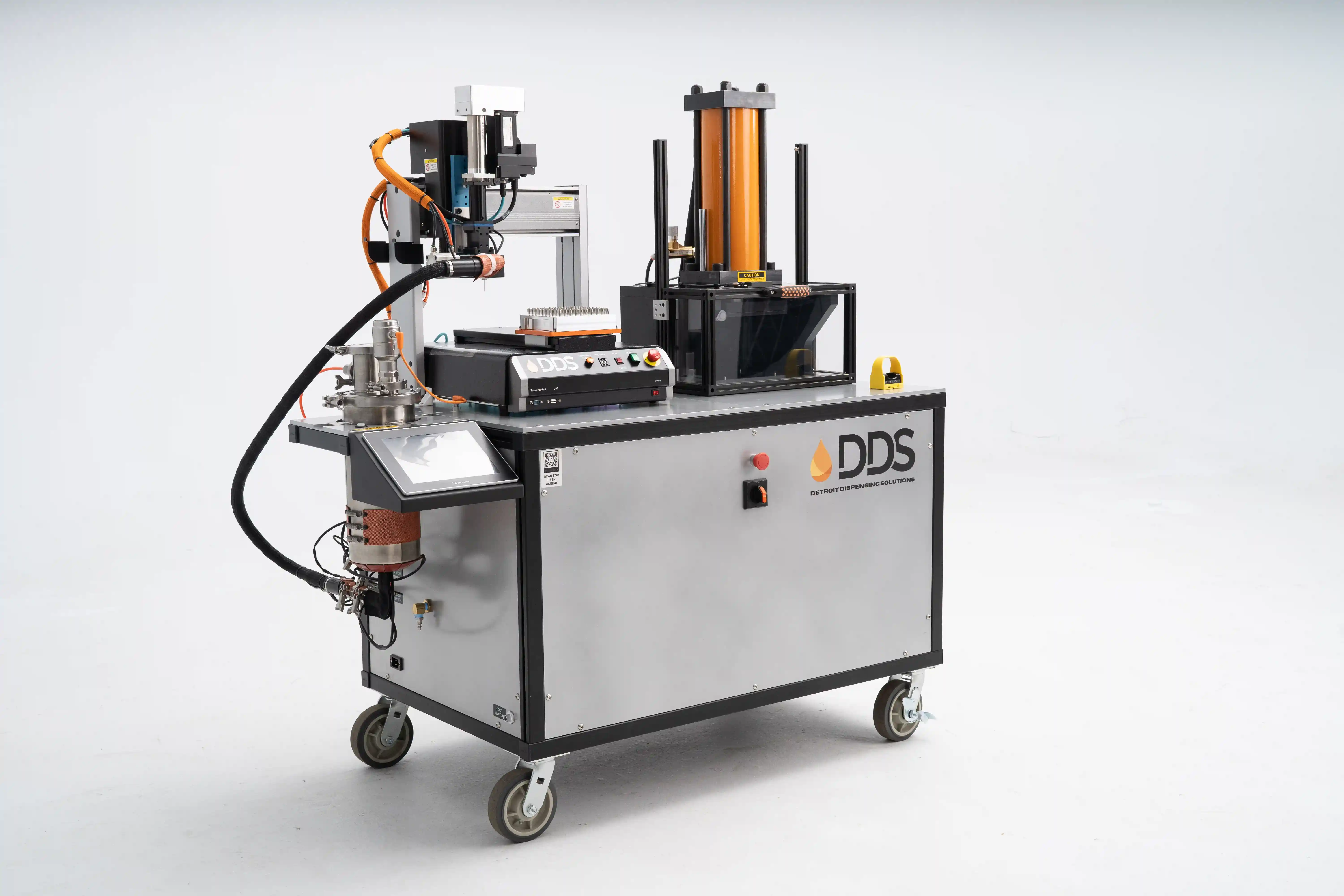

CFM-1800 automatic cartridge filling and capping machine

CFM-1800: for volume, filled and capped in one step

The CFM-1800 is a cartridge filling and capping machine. It fills at the same rate as the CFS-1800 and caps in the same cycle. In a timed trial, it filled and capped 300 CCELL 510 cartridges in under 9 minutes. If your team caps by hand, check that they can keep up with 1,800 cartridges an hour. If they can't, capping becomes the bottleneck, and the CFM-1800 removes it.

Choose it if you fill at volume and want cartridges to come off the line ready to pack. Read why capping force matters for leak-free carts, or see the CFM-1800.

Fill dual-chamber vapes faster with a CFS-1800 and CFM-1800 pair

Brands typically use dual-chamber vapes to put two different flavor or terpene profiles in one device. Each chamber is filled separately before the device is capped. On a single filler, every switch between profiles means purging the reservoir, valve and lines to keep one flavor from carrying over into the other.

Pairing a CFS-1800 with a CFM-1800 removes that changeover. Each machine is dedicated to one profile, both fill at up to 1,800 an hour, and the CFM-1800's press caps the finished device.

CFS-1800 + CFM-1800 PAIR

2 profiles

One flavor or terpene profile per machine, with no purging or carryover between them

1,800

Fills an hour on each machine, one operator per machine

1 press

The CFM-1800 caps the finished device with 30,000+ lb of force

Demand for the format is building. According to BDSA, disposables passed half of U.S. cannabis vape sales for the first time in April 2026, and 2-gram disposables, the format most dual-chamber devices use, grew from about 16% to 35% of disposable sales in two years. In Illinois, one 2-gram dual-chamber all-in-one climbed from the lower end of the state's top 50 all-in-ones to No. 13 in a year, according to a 2026 market review.

How to produce dual-chamber vapes at scale walks through the setup.

See the CFM-1800 in production

Watch the time trial, then see the CFM-1800 filling and capping in production at BREEZE Canna.

Play the CFM-1800 time-trial video

Time trial: 300 CCELL 510 cartridges filled and capped in under 9 minutes

Play the video of the CFM-1800 filling and capping at BREEZE Canna

In production: the CFM-1800 filling and capping at BREEZE Canna

About Detroit Dispensing Solutions

Detroit Dispensing Solutions designs and builds precision filling, dispensing and infusion equipment for cannabis processors in Troy, Michigan. Tell us your hardware, your oil and how many devices you fill a day, and we'll recommend a filler and price it for your setup, with in-house financing available.

Need assistance?

Phone +1 947 941-4489 · Email sales@detroitdispensingsolutions.com

Frequently asked questions

What temperature should live resin be filled at?

DDS fillers fill live resin and rosin at 35°C (95°F) and distillate at 50°C (122°F). Running oil hotter puts more of the terpenes at risk.

What's the difference between the CFS-1800 and the CFM-1800?

Both use the same valve, rated accuracy and fill temperatures, and both fill up to 1,800 cartridges an hour. The CFM-1800 adds a capping press with more than 30,000 lb of force. The CFS-1800 leaves it out, so it is 35 in wide and about 250 lb, against 59 in wide and about 1,200 lb for the CFM-1800.

How many cartridges can one operator fill in a shift?

On the CFS-1800 or CFM-1800, up to 1,800 an hour, about 14,400 in an 8-hour shift at rated speed. On the CFB-1000, DDS estimates about 1,000 devices an hour, or about 8,000 in an 8-hour shift, depending on operator experience.

Which hardware can DDS fillers fill?

The CFB-1000, CFS-1800 and CFM-1800 all fill 510 cartridges, all-in-ones, disposables and syringes.

Can DDS fillers fill dual-chamber vapes?

Yes. Pairing a CFS-1800 with a CFM-1800 lets each chamber's flavor or terpene profile run on its own machine with no purging between profiles, and the CFM-1800's press caps the finished device.

Is the CFB-1000 CE and UKCA certified?

Yes. The CFB-1000 semi-automatic benchtop filler is CE and UKCA certified for the European and UK markets.

How much does a cartridge filling machine cost?

Price depends on the machine and its options, such as a 3 L or 6 L reservoir and the standard or upgraded valve on the CFS-1800 and CFM-1800. Request a quote with your hardware, your oil and your daily volume, and DDS sales will price a machine for your setup.

Can I finance a vape filler instead of buying it outright?

Yes. DDS offers in-house financing on its cartridge fillers. See in-house financing for vape fillers and fill lines for how it works.

How long does it take to get a DDS filler after ordering?

Lead time depends on the machine and the current build schedule. Contact DDS sales for the current lead time on the model you're considering.

Do DDS fillers include installation and training?

Every DDS filler carries a one-year warranty and ongoing technical support, and the CFS-1800 and CFM-1800 include installation and operator training.

Can a cartridge filler infuse pre-rolls?

Yes. The CFS-1800 and CFM-1800 infuse up to 1,500 pre-rolls an hour. The CFB-1000 infuses pre-rolls too; its output varies with the operator.
